Description
This Oleo-Mac ignition coil is an aftermarket electronic ignition module for Oleo-Mac 947, 952 and GS 520 chainsaws, as well as compatible Efco models.
It replaces Emak / Oleo-Mac OEM reference 2501001R, which supersedes earlier ignition-coil references used in the same chainsaw engine family.
The ignition module produces the high-voltage pulse required to create a spark at the spark plug and ignite the engine’s fuel-air mixture.
Compatible Oleo-Mac Models
- Oleo-Mac 947
- Oleo-Mac 952
- Oleo-Mac GS 520
Compatible Efco Models
- Efco 147
- Efco 152
- Efco MT 5200
OEM References
- 2501001R
- 50070013AR
- 50070013A
- 50070013
Reference 2501001R is the later replacement number for the earlier 50070013-series ignition coils.
Product Details
- Product type: electronic ignition coil
- Application: petrol chainsaw ignition system
- High-voltage ignition lead
- Spark plug cap

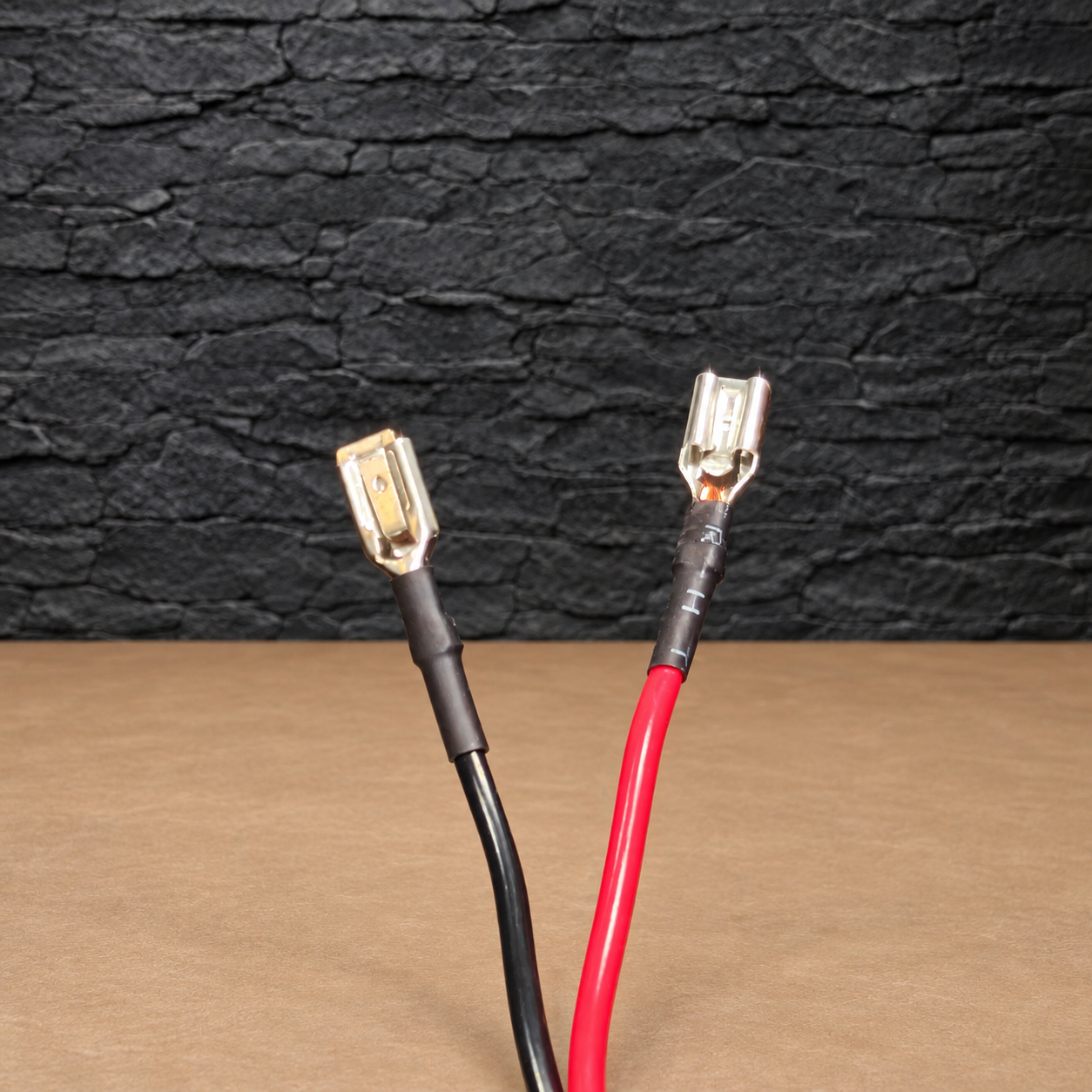

- Electrical ignition connections
- Metal mounting bracket

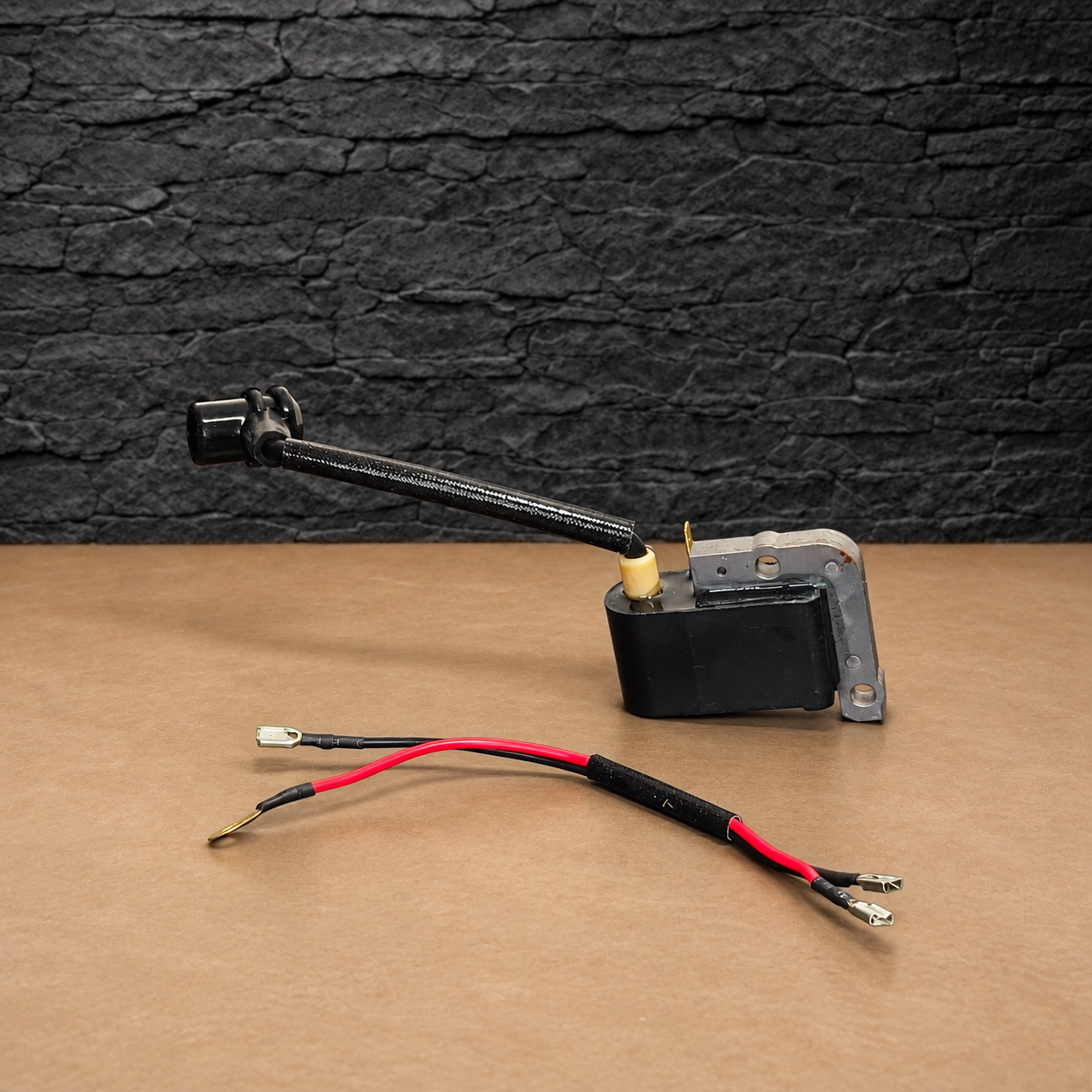

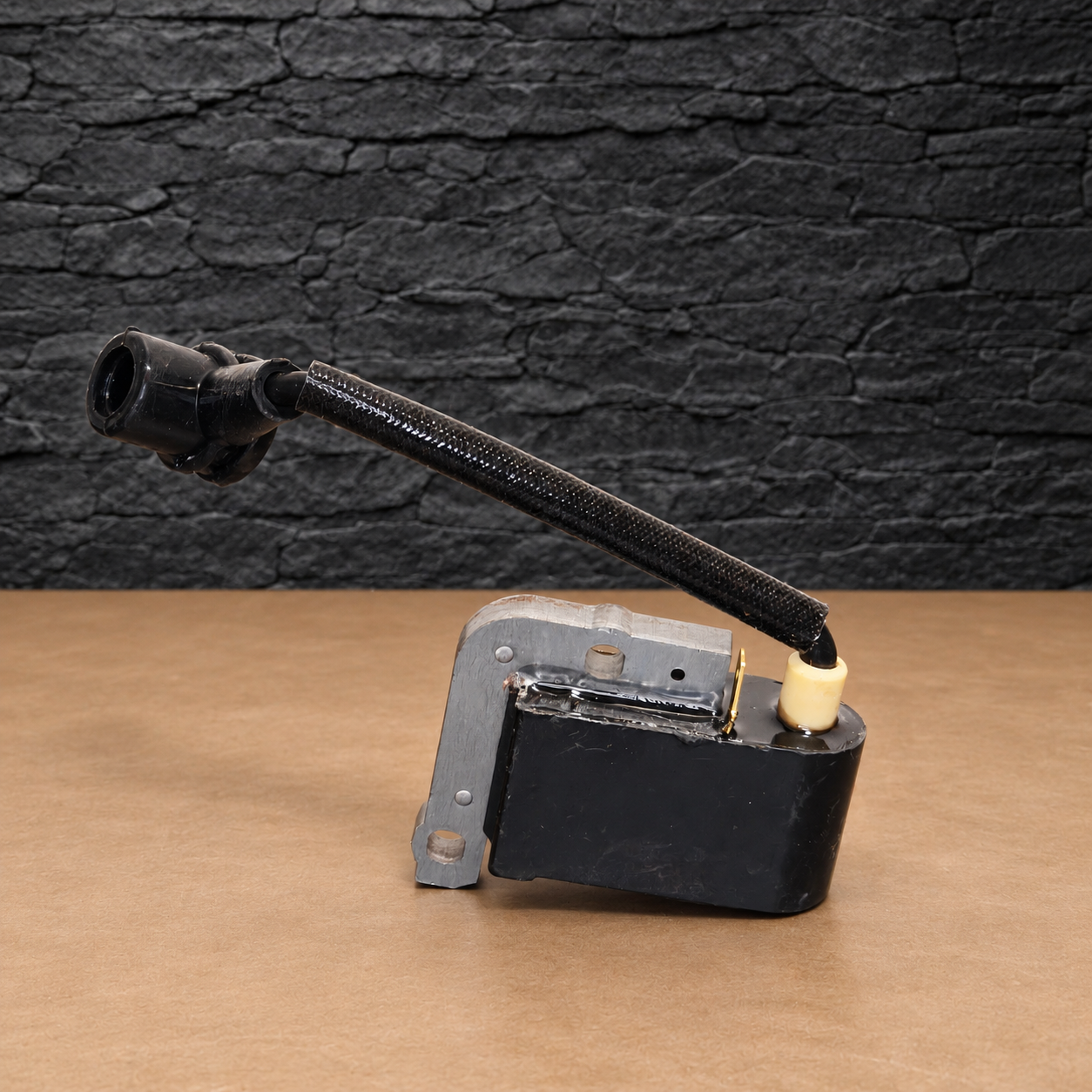

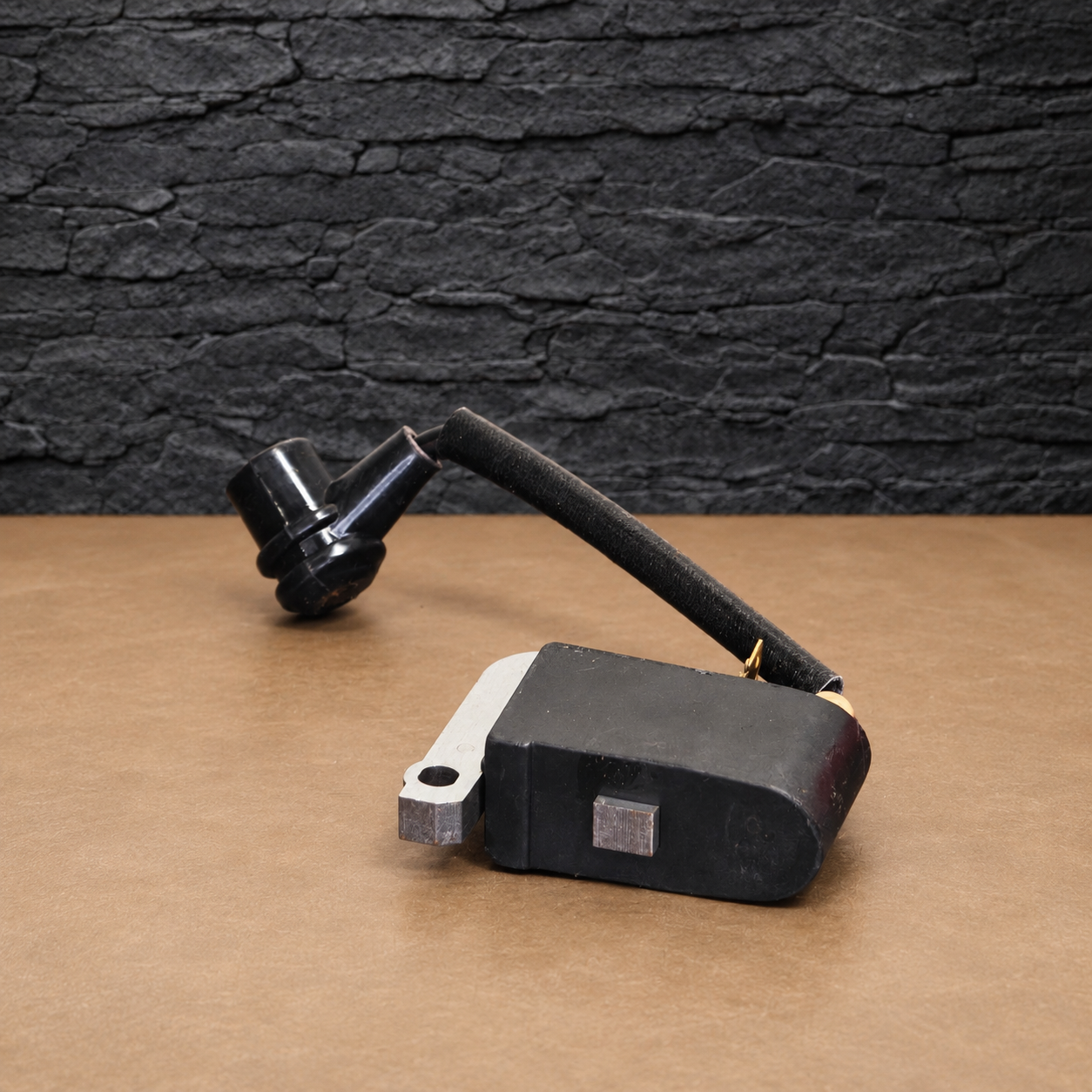

The replacement assembly includes the attached ignition lead and connections shown in the product photographs.
Symptoms of a Faulty Ignition Coil
A defective ignition module can cause:
- No spark at the spark plug
- Difficult or impossible starting
- Intermittent engine misfiring
- Sudden engine shutdown
- Loss of spark when the engine becomes hot
- Failure to restart after normal operation
Before replacing the ignition coil, inspect the spark plug, spark plug cap, stop-switch wiring and electrical connections.
Installation Recommendations
Disconnect the spark plug before removing the original ignition module.
Inspect the flywheel magnets, mounting points and associated wiring. Install the replacement ignition coil with the correct flywheel air gap specified for the engine.
Route the ignition lead and electrical connections away from the flywheel, hot cylinder surfaces and moving components.
After installation, verify consistent spark generation and proper operation of the engine stop switch.
This is an aftermarket ignition coil, not a genuine Oleo-Mac, Efco or Emak OEM component.
Browse the corresponding Oleo-Mac / Efco replacement ignition coil or consult the Oleo-Mac 952 illustrated parts catalogue.
