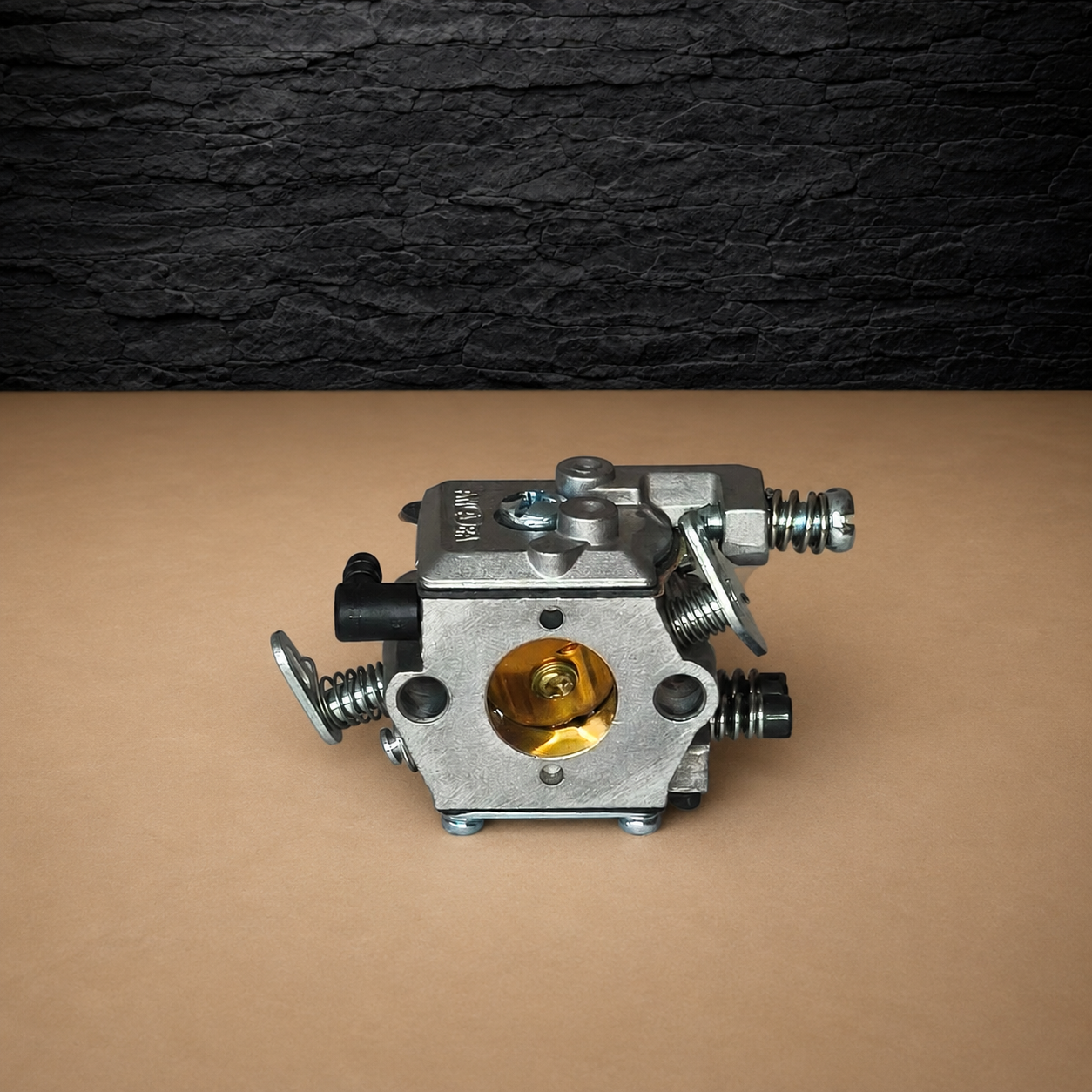

Carburetor for Stihl 017, 018, MS170, MS180, MS180C – Walbro Type – 1130 120 0600

Description

This complete aftermarket Walbro-type carburetor is designed for selected Stihl 017, 018, MS170 and MS180 chainsaws. It replaces the WT-325/WT-325A-style carburetor without an external vent tube extending from the top or side.

A worn or blocked carburetor can cause difficult starting, unstable idling, poor acceleration, loss of power, excessive fuel consumption or an engine that only runs with the choke engaged. Replacing the complete carburetor is a practical solution when cleaning or adjustment no longer restores reliable operation.

Compatible models include:

• Stihl 017
• Stihl 018
• Stihl MS170
• Stihl MS180
• Stihl MS180C

OEM reference:

• 1130 120 0600
• 1130-120-0600
• 11301200600

Carburetor references:

• Walbro WT-325
• Walbro WT-325A
• WT325
• WT325A

Important: This is the Walbro-type version without an external vent tube. It is an aftermarket replacement part and is not manufactured by Walbro or Stihl.

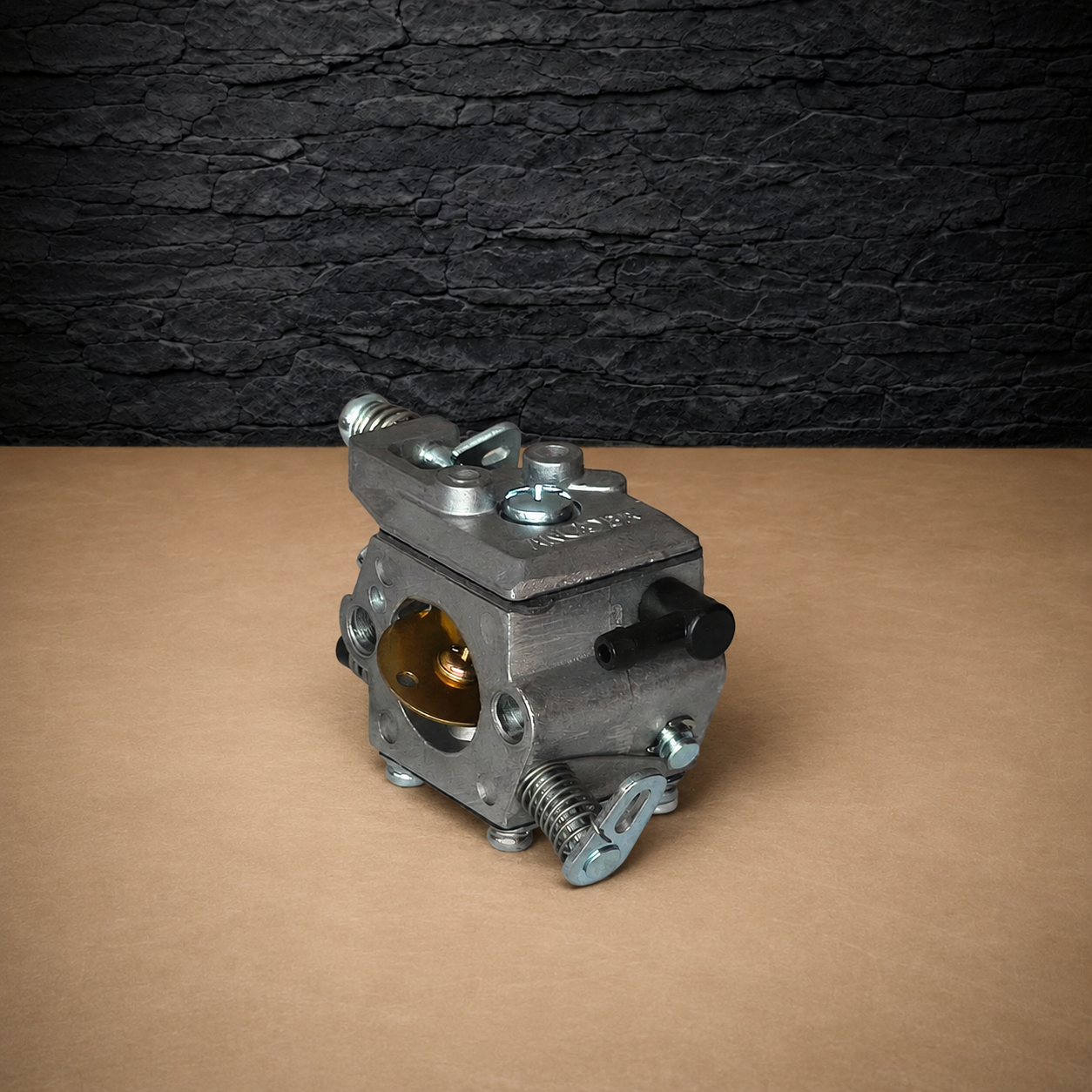

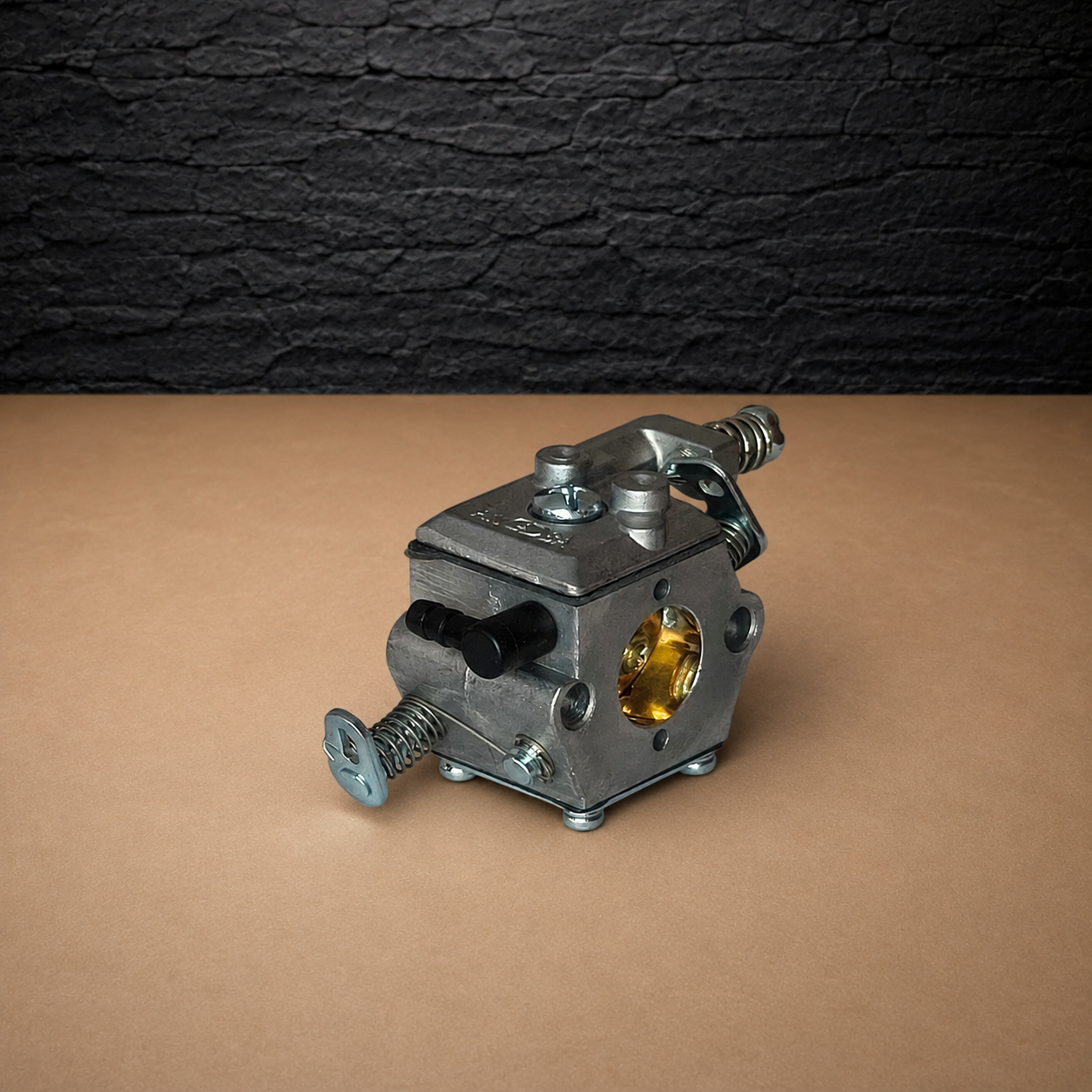

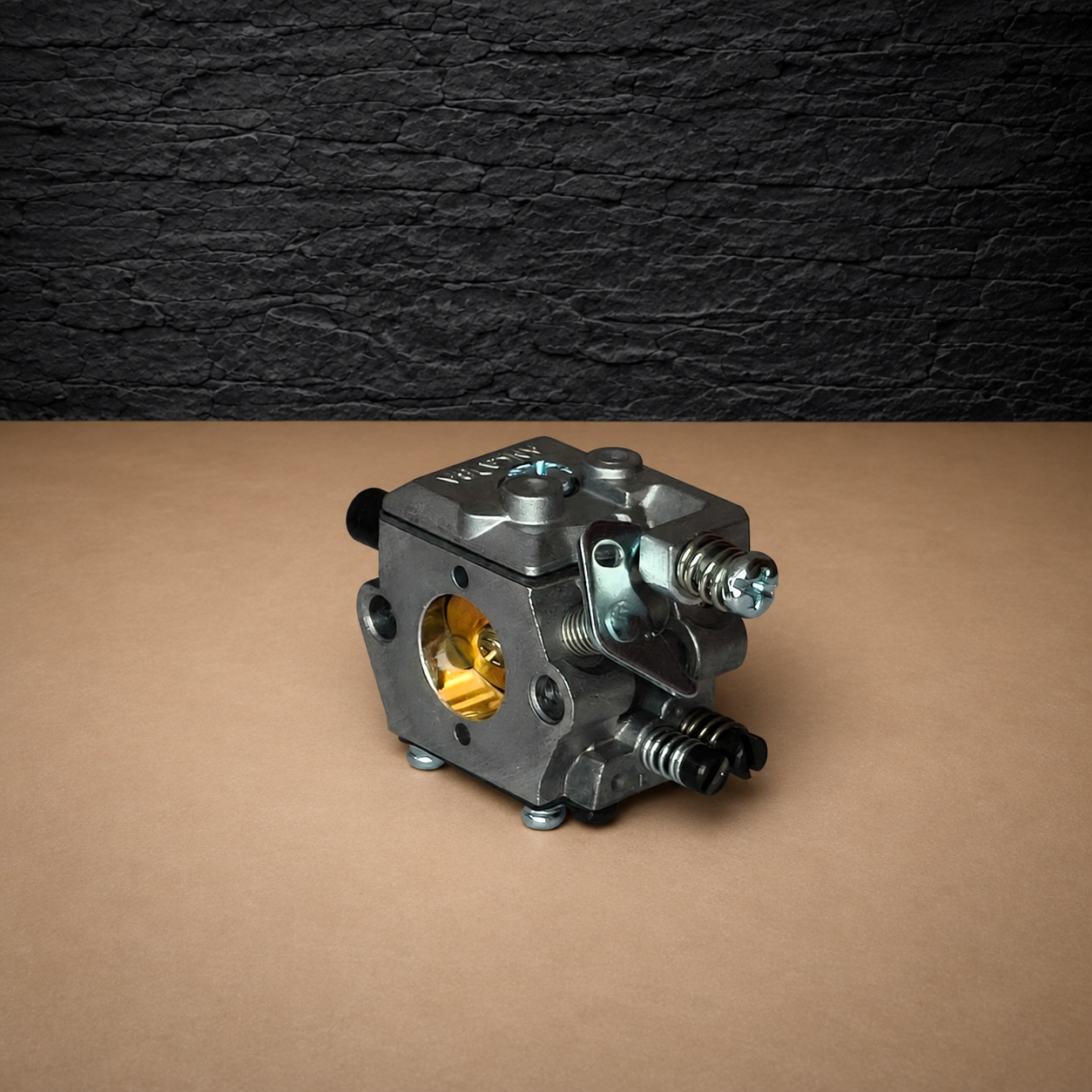

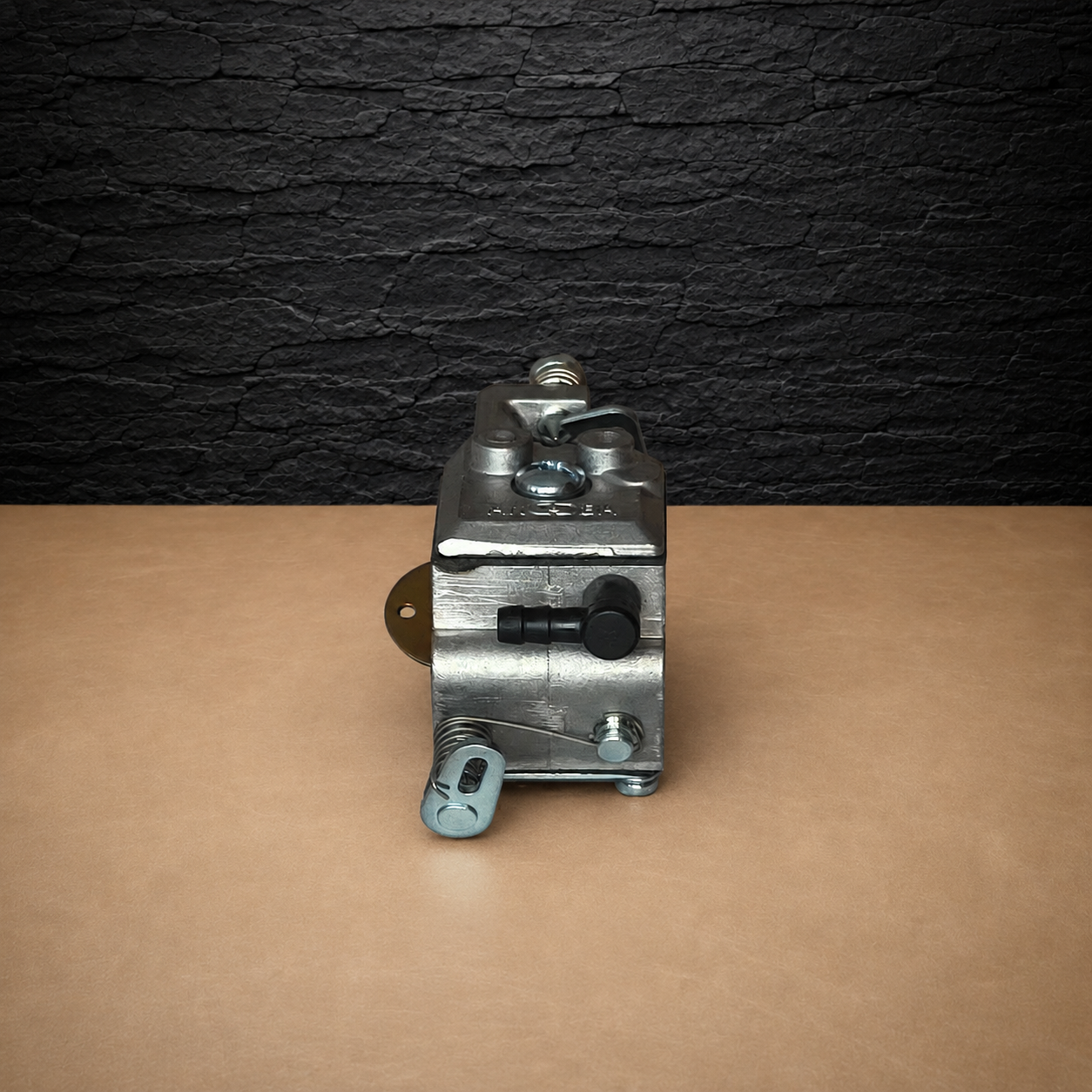

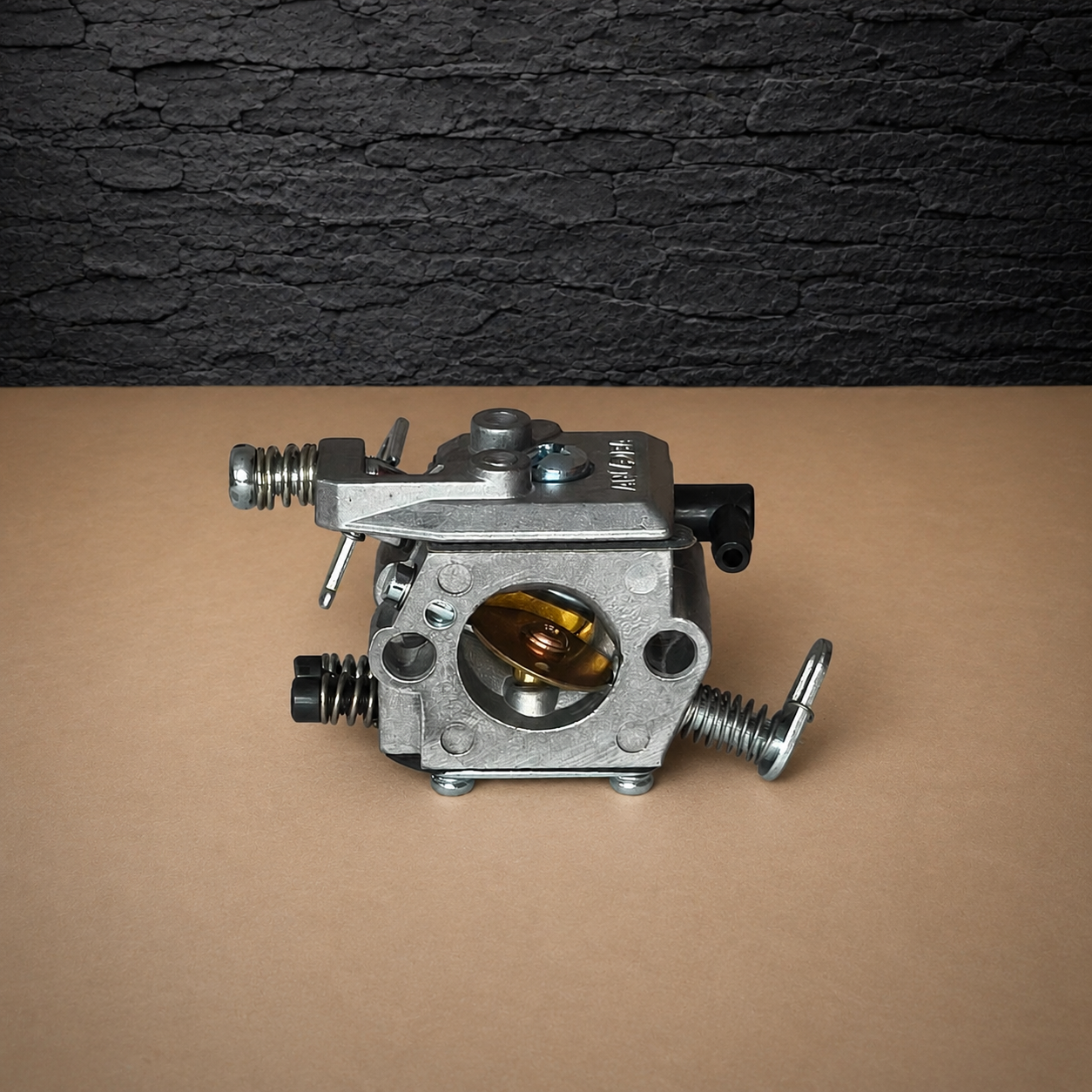

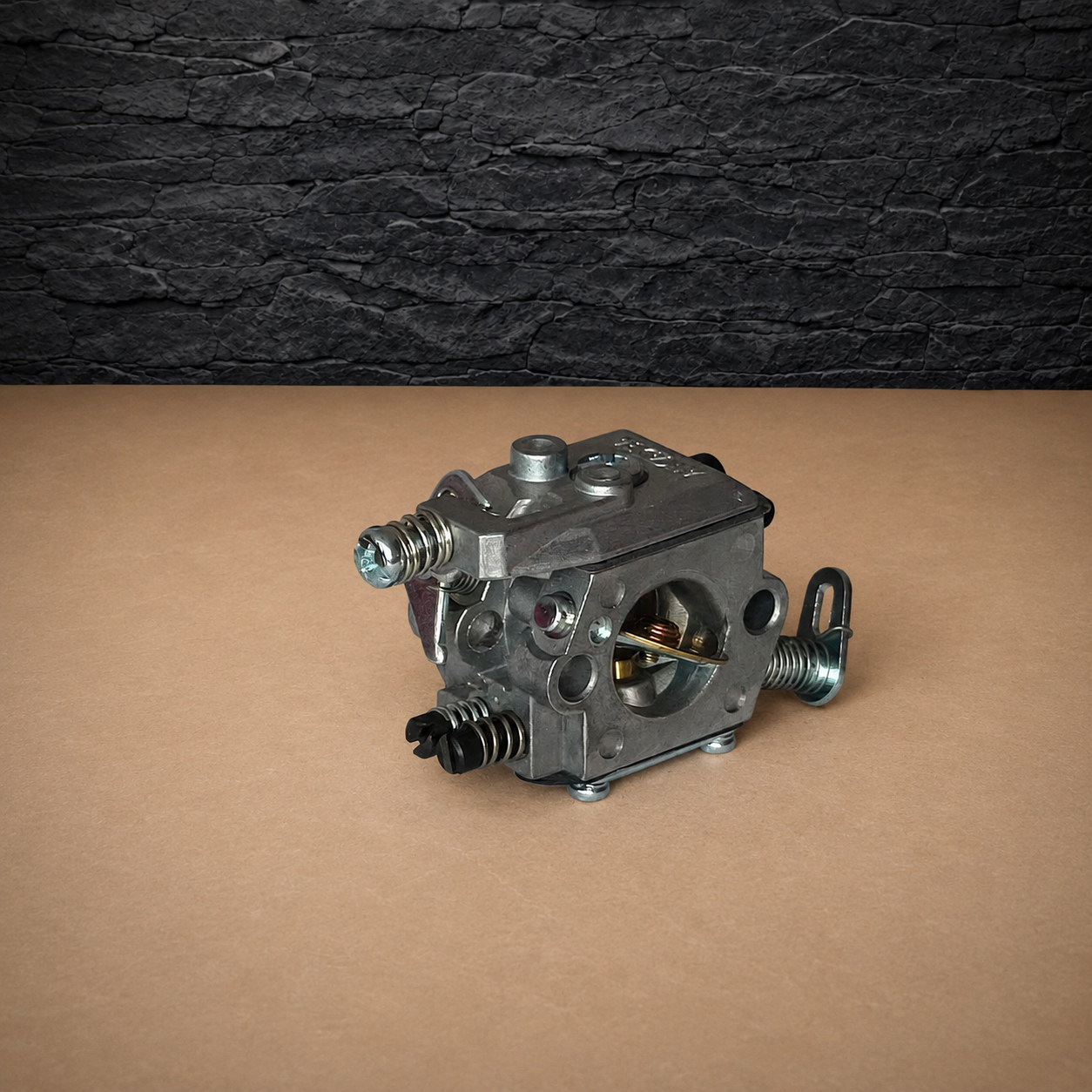

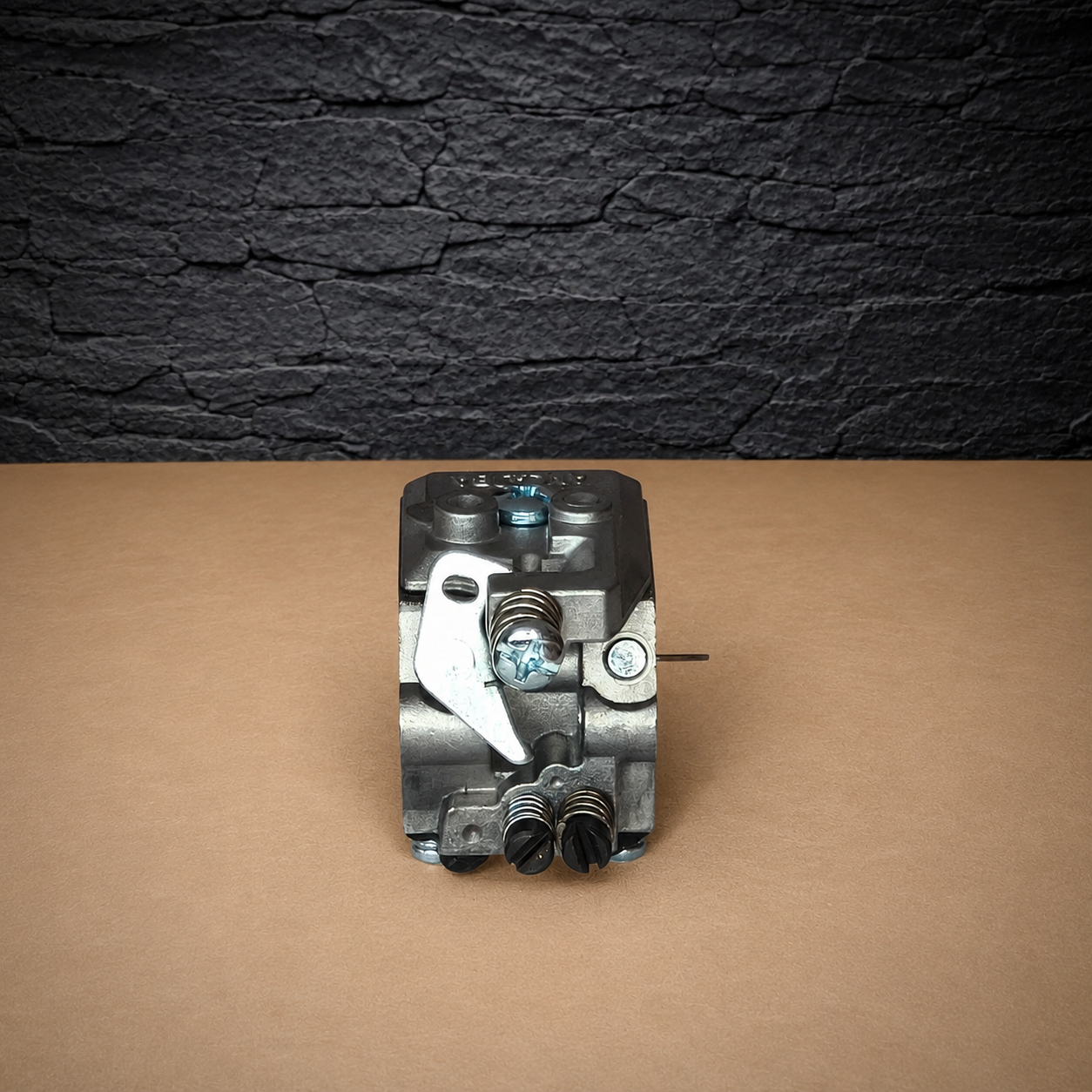

Stihl 017, 018, MS170 and MS180 chainsaws were fitted with several different carburetor versions. Do not order using the chainsaw model alone. Compare the original carburetor body, fuel inlet, adjustment screws, throttle linkage, choke mechanism and mounting-hole positions with the product photographs.

This product should not be confused with Zama C1Q-S57-type carburetors using OEM number 1130 120 0603, or later MS180 carburetor versions.

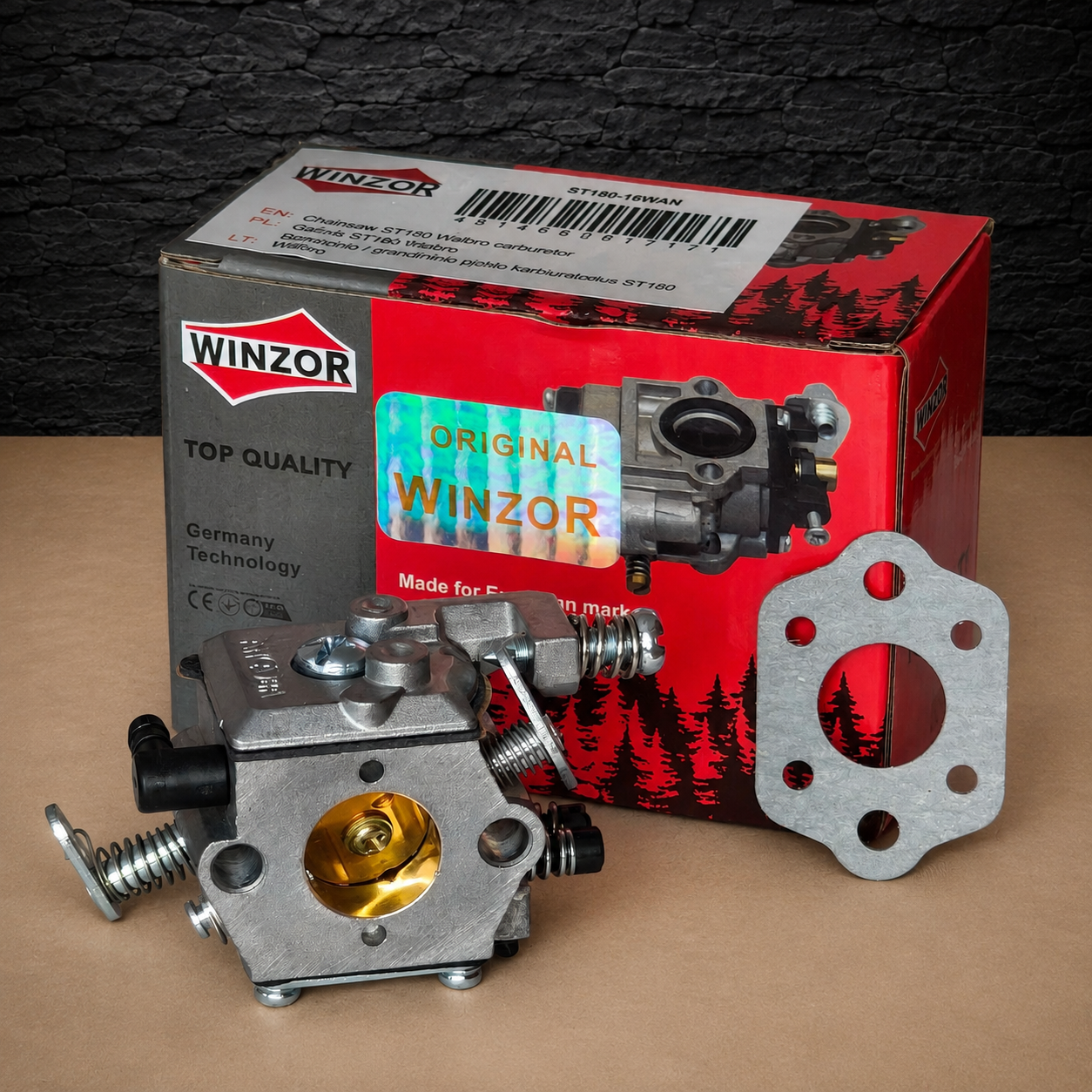

Gaskets and other fitting parts are only included when shown in the product photographs. Final idle-speed or fuel-mixture adjustment may be required after installation.
