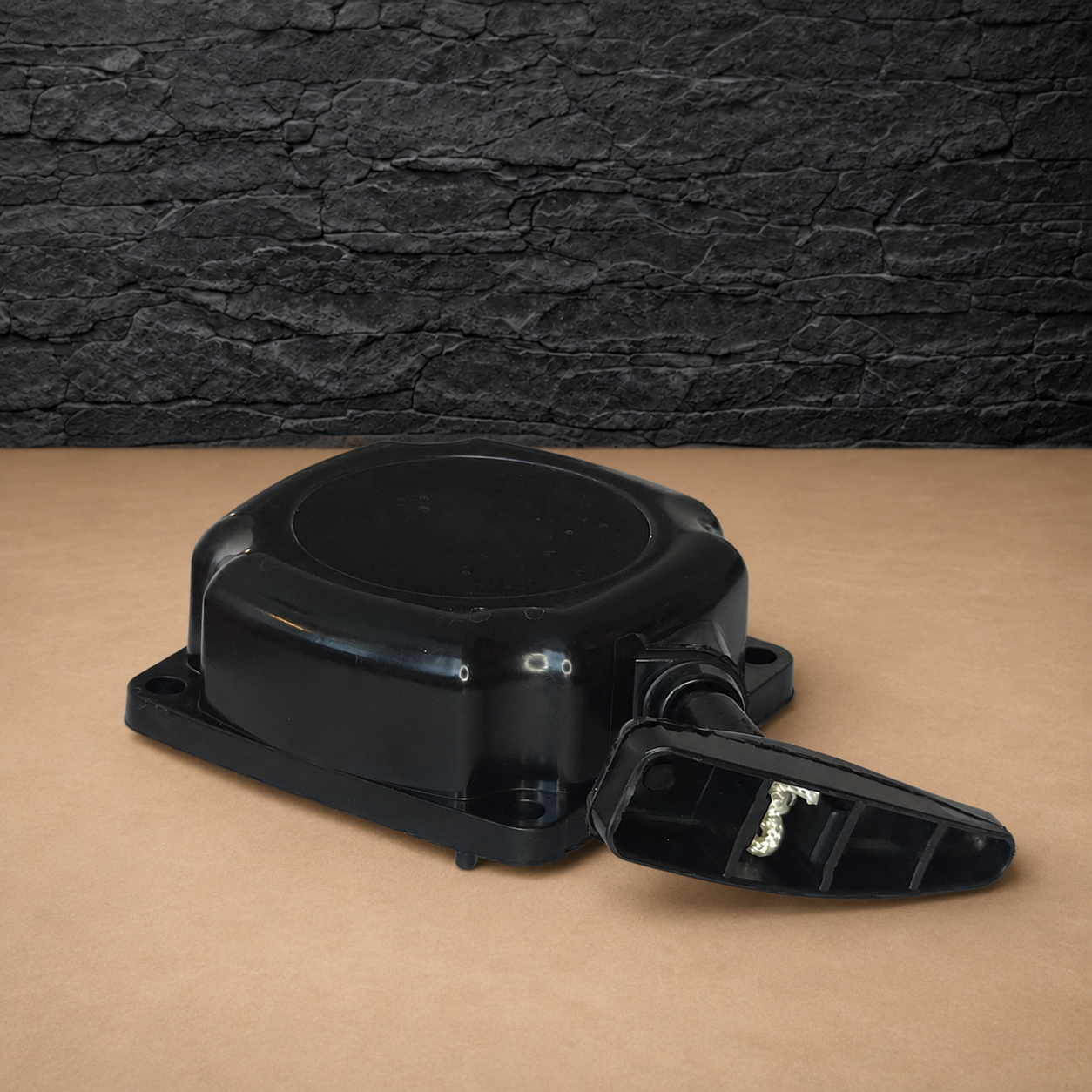

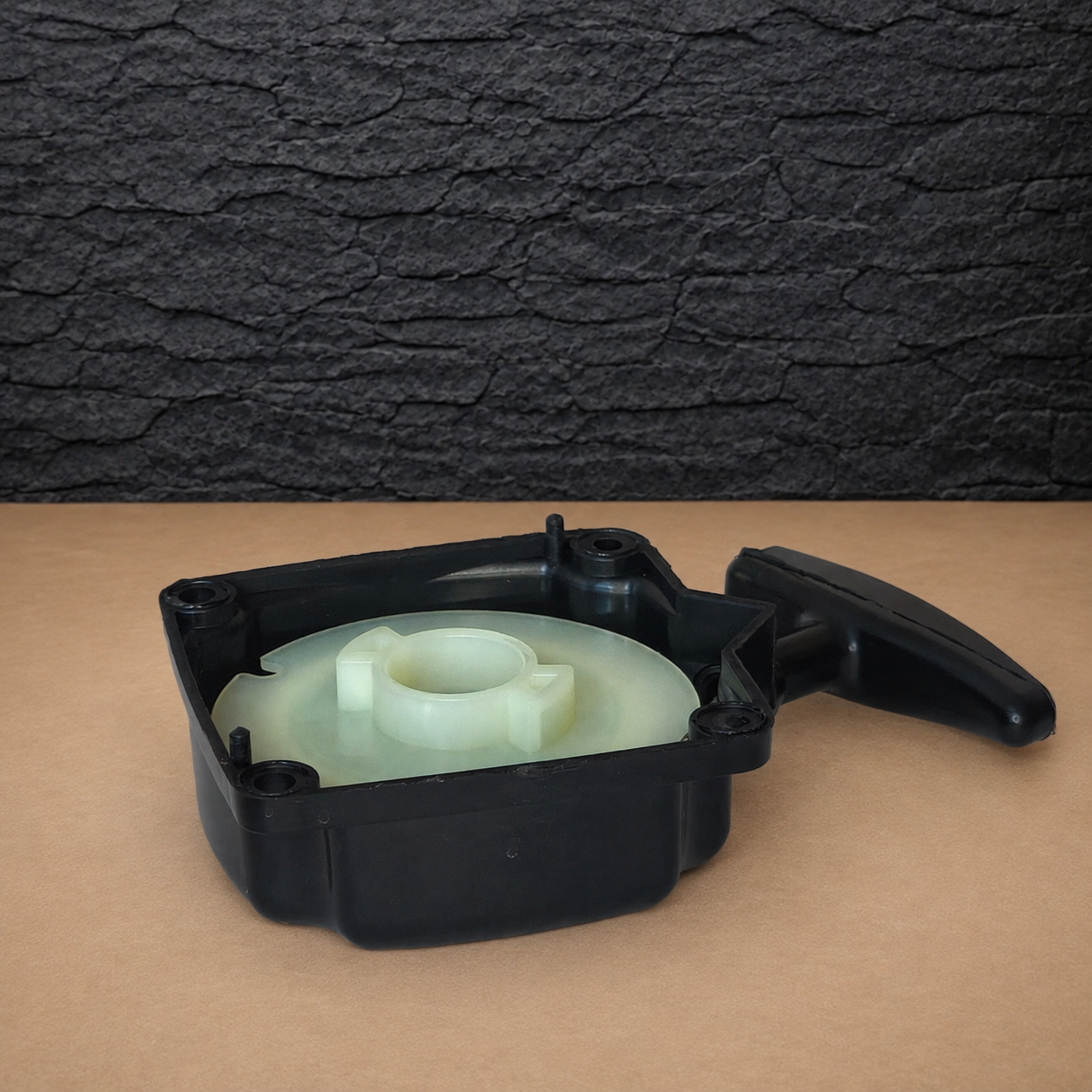

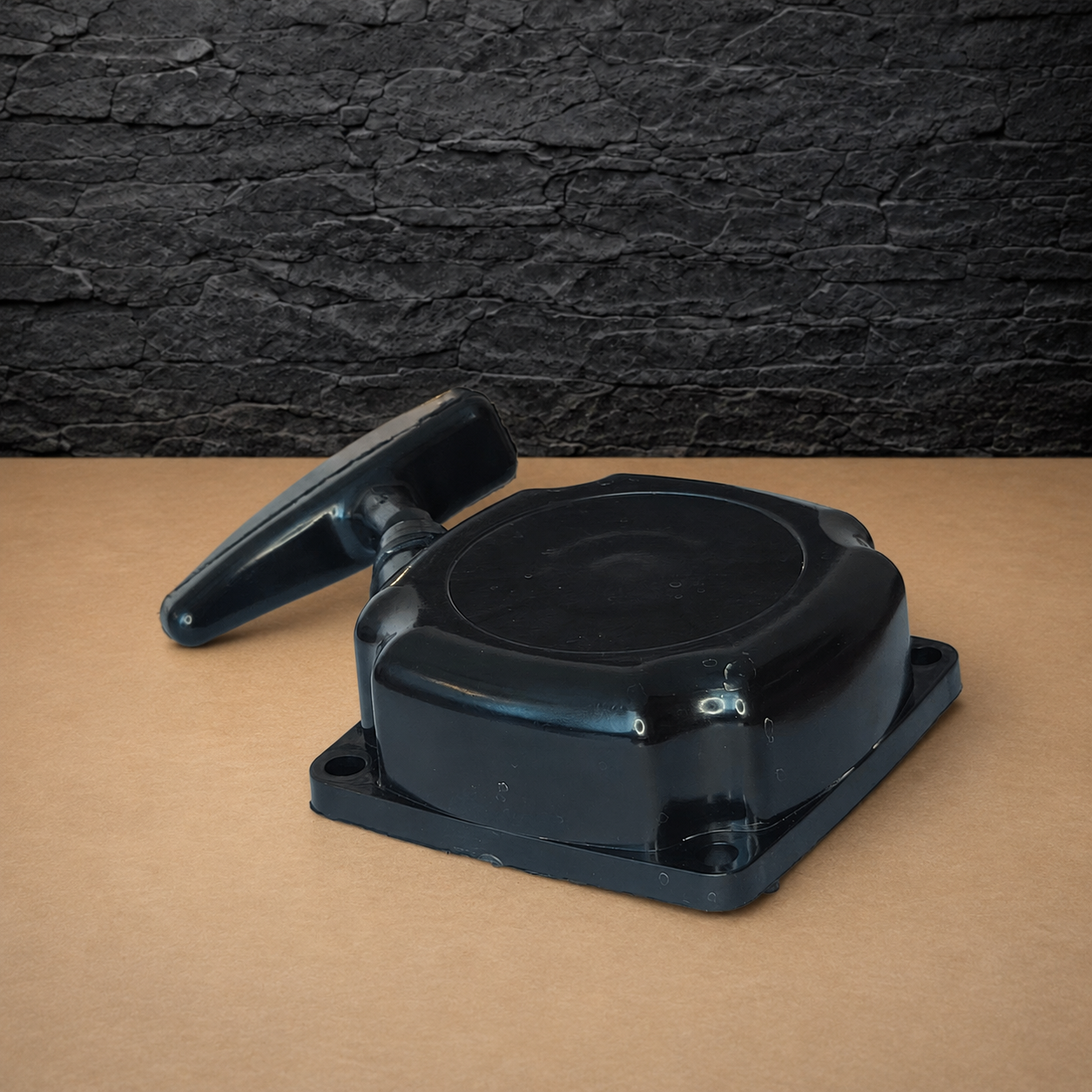

Recoil Starter With Metal Pawls And Plate for BC415 Brushcutters

Description

This BC415 recoil starter is an aftermarket pull-start assembly for compatible Chinese-manufactured BC415 brushcutters and strimmers. It is supplied with metal engagement pawls and a separate mounting plate, making it suitable for replacing a damaged starter of the same construction.

The metal pawls engage with the corresponding component on the engine when the starter rope is pulled. Consequently, the starter transfers the pulling force to the crankshaft so that the engine can be started. Once released, the recoil mechanism draws the rope back into the housing.

Compatibility

The starter is intended for:

• BC415 brushcutters
• BC415 strimmers
• Selected Chinese-manufactured machines using the same starter construction

Generic brushcutter model names are not fully standardised. Therefore, two machines marked BC415 may still use different starter housings, plates or engagement mechanisms.

Before ordering, compare:

• Starter-housing shape
• Mounting-hole positions
• Mounting-plate shape
• Metal-pawl arrangement
• Pawl engagement direction
• Distance between mounting points
• Position of the pull handle

Supplied Components

The product includes:

• Recoil starter assembly
• Metal engagement pawls
• Matching mounting plate

Mounting screws and other components should not be assumed to be included unless they are visible in the product photographs.

Installation Checks

Before installation, check that the engine turns freely and that the corresponding starter cup or engagement component is not damaged. Otherwise, a seized engine or worn engagement part may damage the replacement starter.

Furthermore, clean dirt and grass residue from the mounting area. Position the supplied plate correctly, align the starter housing and tighten the fasteners evenly. Avoid overtightening screws installed into plastic components.

After installation, pull the handle slowly several times. The pawls should engage consistently, while the rope should retract fully without rubbing or remaining loose. Finally, start the machine safely and verify normal operation.
