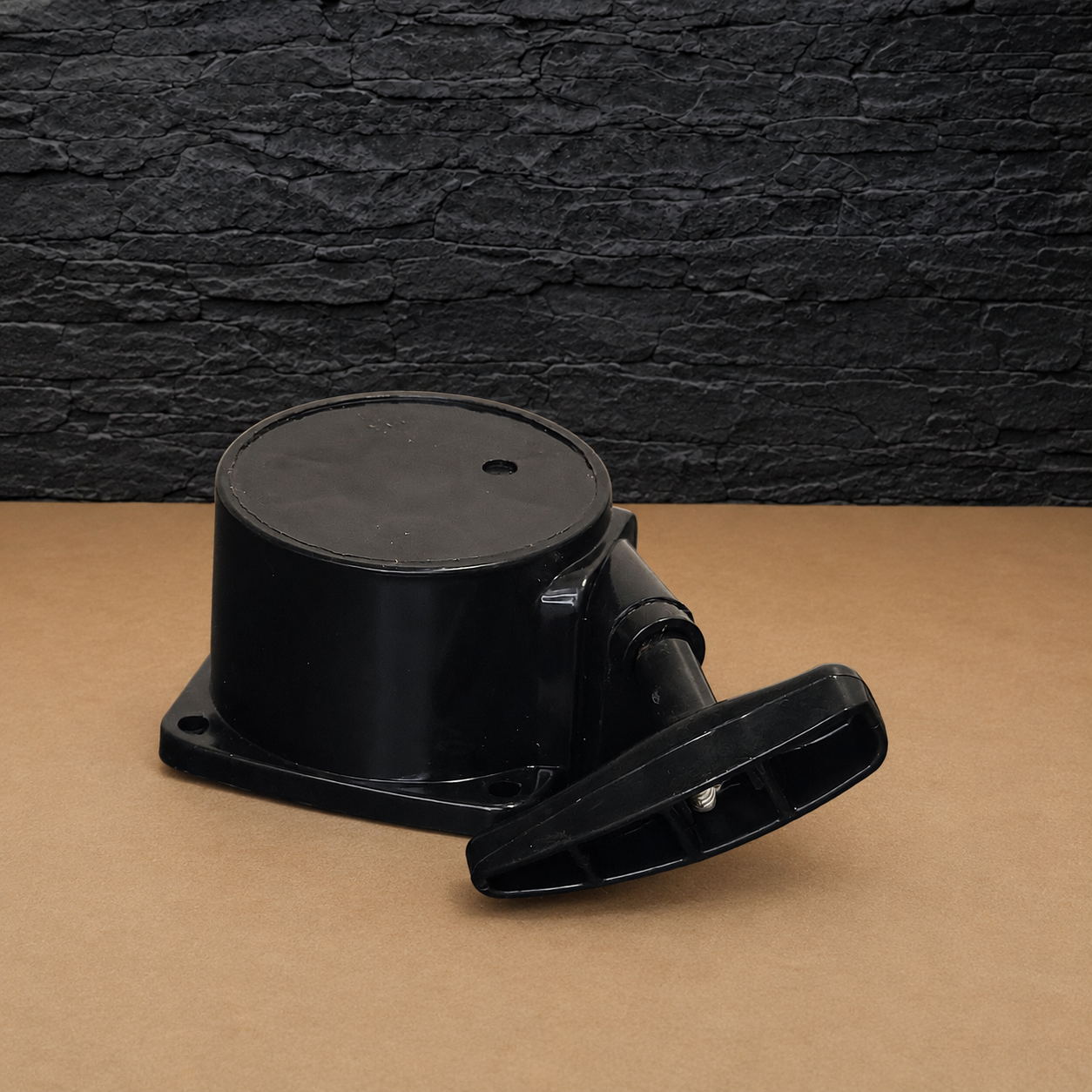

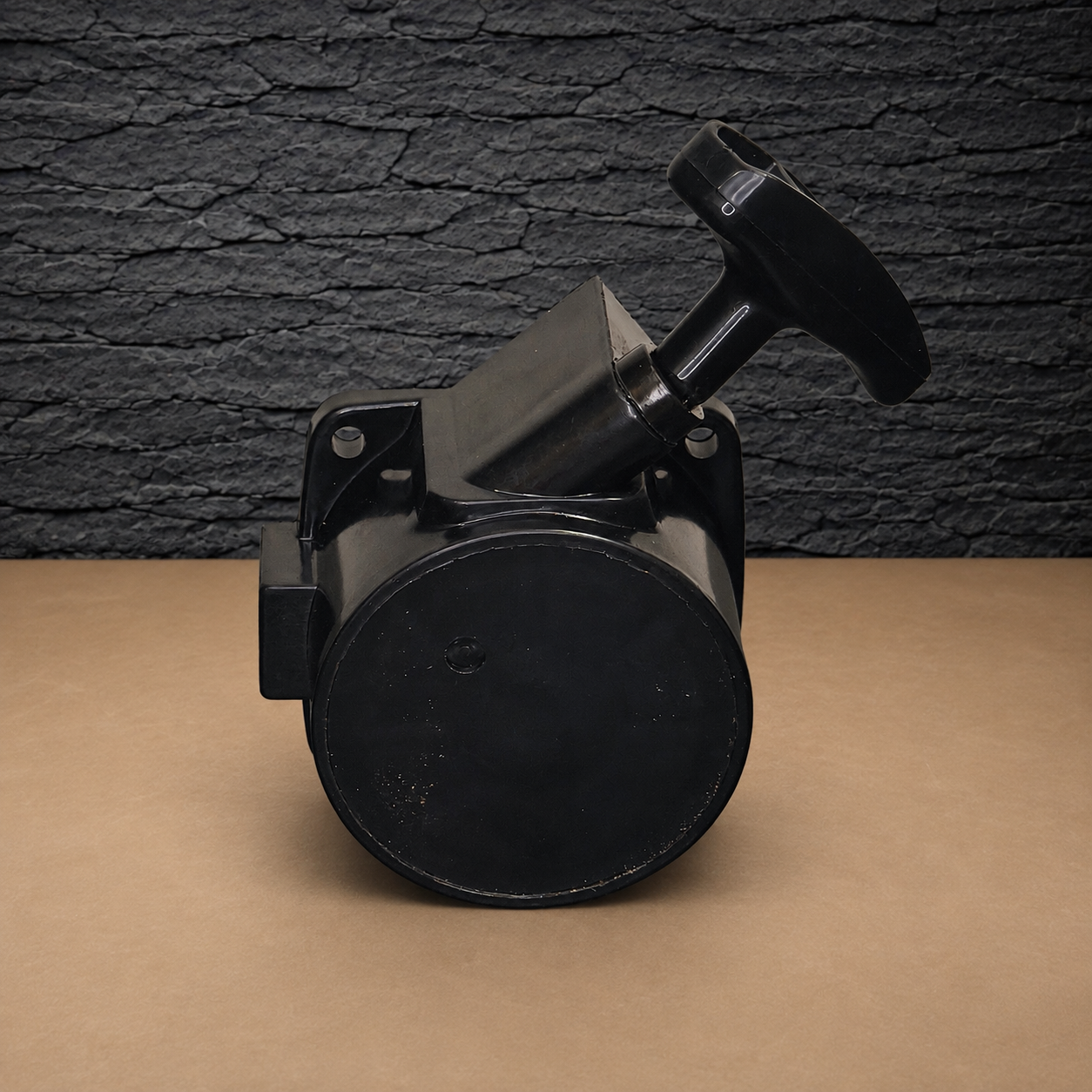

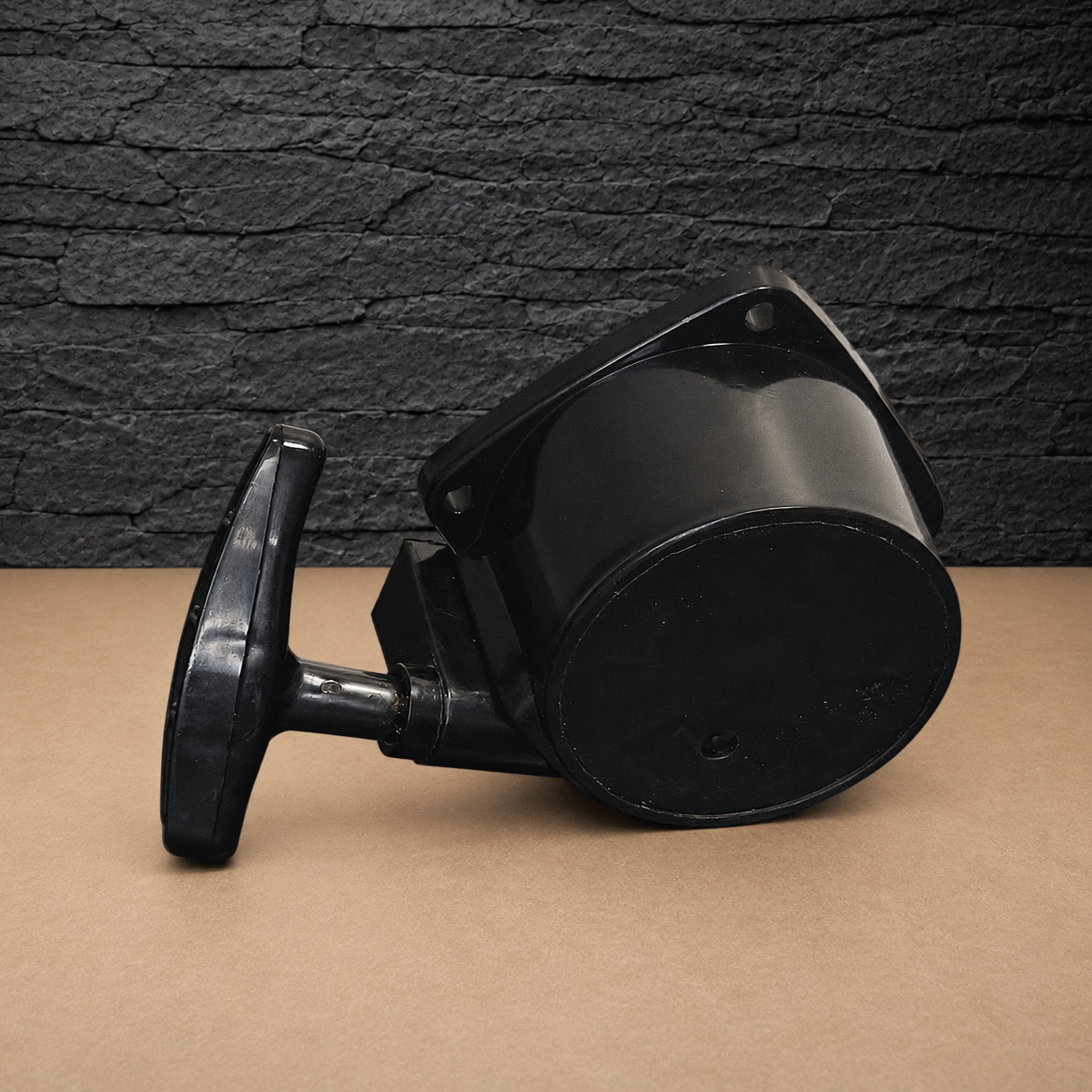

Recoil Starter Assembly for Hitachi / HiKOKI CG22EAS CG24EAS CG27EAS CS27EPA – 6601570

Description

This Hitachi / HiKOKI recoil starter assembly is an aftermarket replacement for petrol brushcutters, trimmers, pole saws, hedge trimmers and blowers using recoil starter reference 6601570.

The current HiKOKI reference 6601570 replaces the earlier recoil starter assembly 6699995. Older parts catalogues also use 6684673 for the recoil starter body component. In the Hitachi CS27EPAP parts list, 6699995 is specifically catalogued as the recoil starter body assembly, while the engine-side starter pulley and pawls are separate components.

Compatible Hitachi / HiKOKI Models

The same starter assembly is catalogued for:

• Hitachi / HiKOKI CG22EAB
• Hitachi / HiKOKI CG22EAD
• Hitachi / HiKOKI CG22EAP2
• Hitachi / HiKOKI CG22EAS
• Hitachi / HiKOKI CG24EA2
• Hitachi / HiKOKI CG24EAP2
• Hitachi / HiKOKI CG24EAS
• Hitachi / HiKOKI CG24EASP
• Hitachi / HiKOKI CG24EBD / CG24EBDP
• Hitachi / HiKOKI CG24EBS / CG24EBSP
• Hitachi / HiKOKI CG24EC / CG24ECP
• Hitachi / HiKOKI CG27EA2
• Hitachi / HiKOKI CG27EAP2
• Hitachi / HiKOKI CG27EAS
• Hitachi / HiKOKI CG27EASP
• Hitachi / HiKOKI CG27EBD / CG27EBDP
• Hitachi / HiKOKI CG27EBS / CG27EBSP
• Hitachi / HiKOKI CG27EC / CG27ECP
• Hitachi / HiKOKI CH27EPA
• Hitachi / HiKOKI CH27EPAP
• Hitachi / HiKOKI CH55EPA
• Hitachi / HiKOKI CH55EPC
• Hitachi / HiKOKI CS25EPB
• Hitachi / HiKOKI CS27EPA
• Hitachi / HiKOKI CS27EPAP
• Hitachi / HiKOKI RB24EA
• Hitachi / HiKOKI RB27EAP
• Hitachi / HiKOKI RB27EP

The same starter family is also used on a number of Tanaka TCG, TCH and TCS machines built around the same engine platform, including TCG22EAS, TCG24EAS, TCG27EAS, TCH27EPA and TCS27EPA. The extensive fitment is confirmed by current HiKOKI replacement-part cross-references.

OEM References

Current reference:

• 6601570

Earlier reference:

• 6699995

Related earlier starter-body reference:

• 6684673

HiKOKI parts data lists 6601570 as the newer recoil starter body assembly replacing the earlier 6699995/6684673 design.

Starter Assembly Details

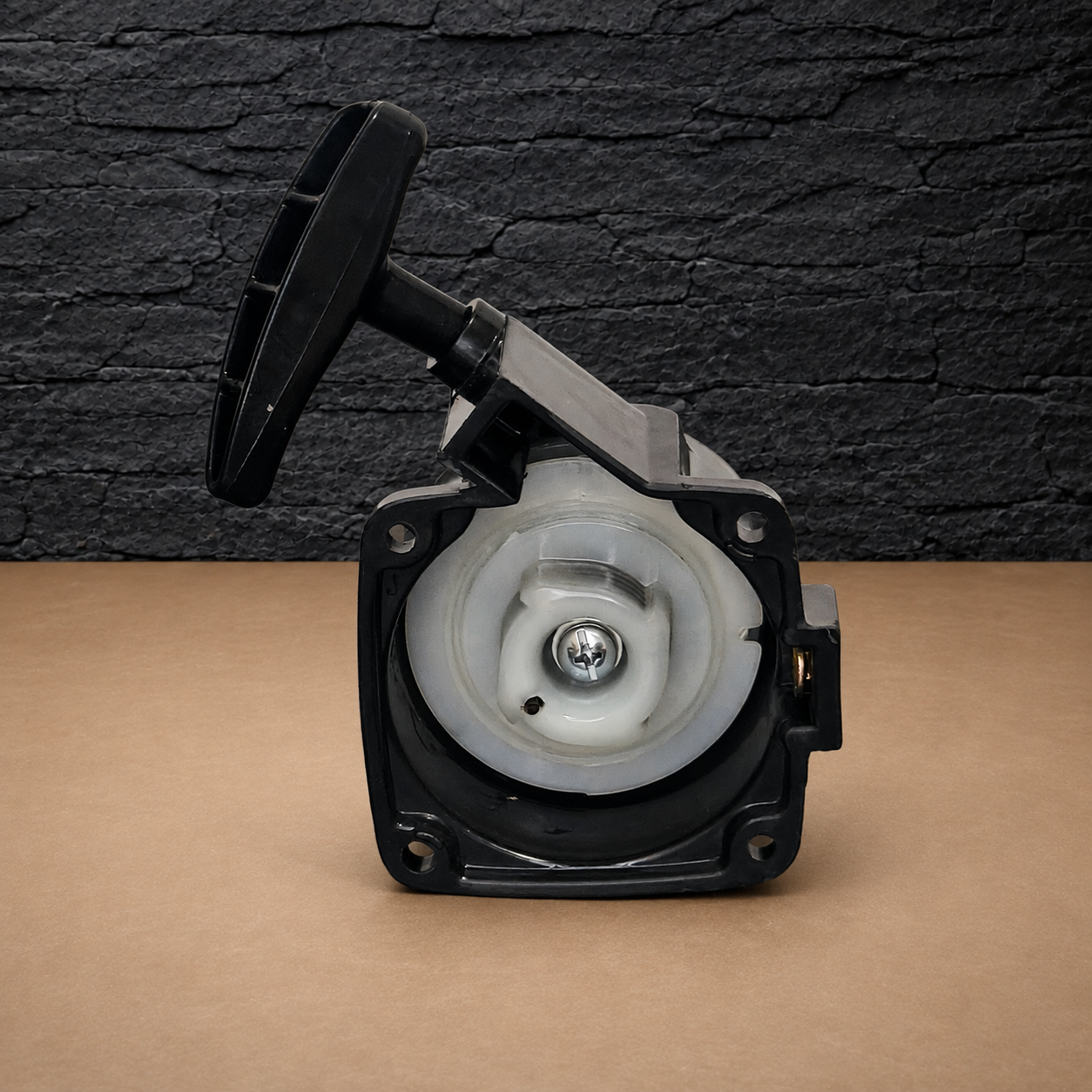

The starter contains the housing and principal recoil mechanism used to pull-start the engine. The CS27EPAP catalogue separates this assembly from the engine-side starter pulley and starter pawls, so worn engagement parts on the engine should also be checked during repair.

Replace the starter when the housing is damaged, the recoil mechanism no longer retracts correctly, or the starter no longer engages reliably.

Installation Checks

Before fitting the new starter, inspect the starter pulley, pawls and pawl springs on the engine. The engine must rotate freely and the starter engagement components must not be cracked, rounded or seized.

Fit the recoil starter squarely to the engine and tighten the mounting fasteners evenly. Afterwards, pull the handle slowly several times. The starter should engage immediately and return fully without the rope or reel binding.
