Description

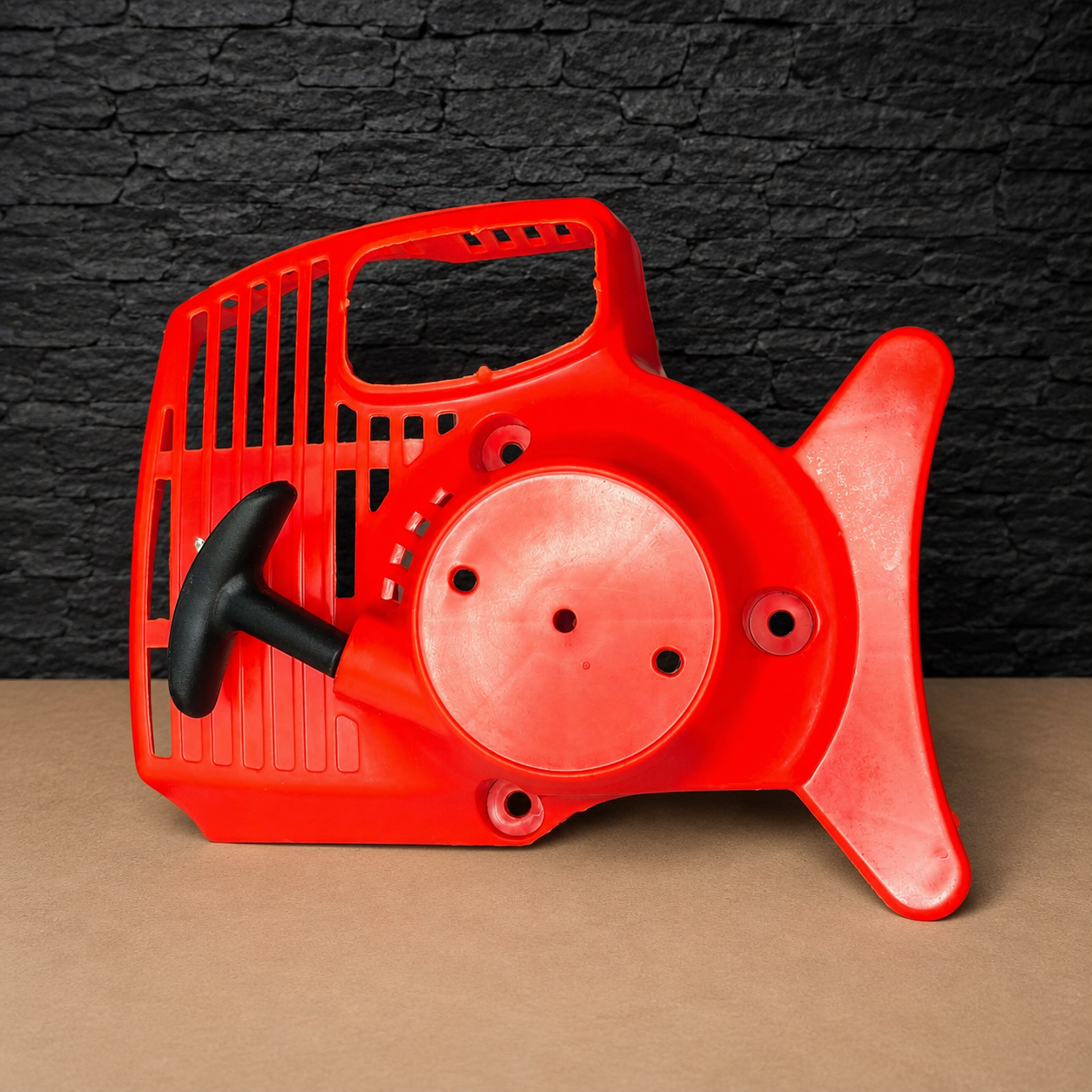

This Stihl FS55 recoil starter is an aftermarket pull-start assembly for compatible Stihl FS55 brushcutters and strimmers. It replaces a damaged starter housing or a mechanism that no longer retracts the rope, engages the engine correctly or turns the crankshaft during starting.

The assembly corresponds to reference 4140 190 4009 for compatible FS55 versions. It is supplied as an assembled starter unit rather than as an individual rope, pulley or spring.

Compatibility and reference

Designed for compatible versions of:

• Stihl FS55 brushcutters
• Stihl FS55 strimmers
• Related FS55 configurations using the same starter construction

Replacement reference:

• 4140 190 4009
• 4140-190-4009
• 41401904009

Nevertheless, equipment produced during different periods can use revised housings or starter mechanisms. Therefore, compare the replacement with the original assembly before ordering. Important details include the housing outline, mounting-hole positions, pulley arrangement and engine-engagement mechanism.

Starter assembly details

The photographed product is supplied with:

• Starter housing
• Internal starter pulley
• Recoil spring mechanism
• Starter rope
• Pull handle
• Engine-engagement components

Mounting screws are not shown and should not be assumed to be included. Consequently, retain the original fasteners if they remain suitable for reuse.

Installation and inspection

Before fitting the replacement starter, inspect the starter cup or engagement component fitted to the engine. Also check that the engine turns normally and that excessive resistance is not being caused by internal engine damage, a seized component or material inside the cutting attachment.

During installation, route the starter correctly and tighten the housing evenly. Do not overtighten fasteners into plastic mounting points. Afterwards, pull the handle slowly several times and confirm that the mechanism engages, retracts fully and does not rub against the housing.

Finally, start the machine in a safe position and verify that the rope returns without remaining loose. Browse additional brushcutter and strimmer parts for compatible fuel-system, ignition and transmission components.
