Recoil Starter Assembly for Husqvarna 340 / 345 / 346XP / 350 / 353 – 537104702, 537422901

Description

This Husqvarna 350 recoil starter is an aftermarket pull-start assembly for compatible Husqvarna 340, 345, 345E, 346XP, 350, 353 and 353EPA chainsaws. It replaces a broken starter housing or a mechanism with a damaged pulley, spring, rope, handle or engine-engagement component.

The assembly corresponds to references 537104702 and 537422901 for compatible chainsaw versions. It is supplied as an assembled starter unit, allowing the principal recoil components to be replaced together.

Compatible Husqvarna chainsaws

Compatibility includes selected versions of:

• Husqvarna 340
• Husqvarna 345
• Husqvarna 345E
• Husqvarna 346XP
• Husqvarna 350
• Husqvarna 353
• Husqvarna 353EPA

Replacement references:

• 537 10 47-02
• 537104702
• 537 42 29-01
• 537422901

Since model variants and production revisions can differ, compare both the OEM reference and the starter construction before ordering. In particular, check the housing outline, mounting-hole positions, pulley arrangement and starter-pawl engagement.

Starter assembly details

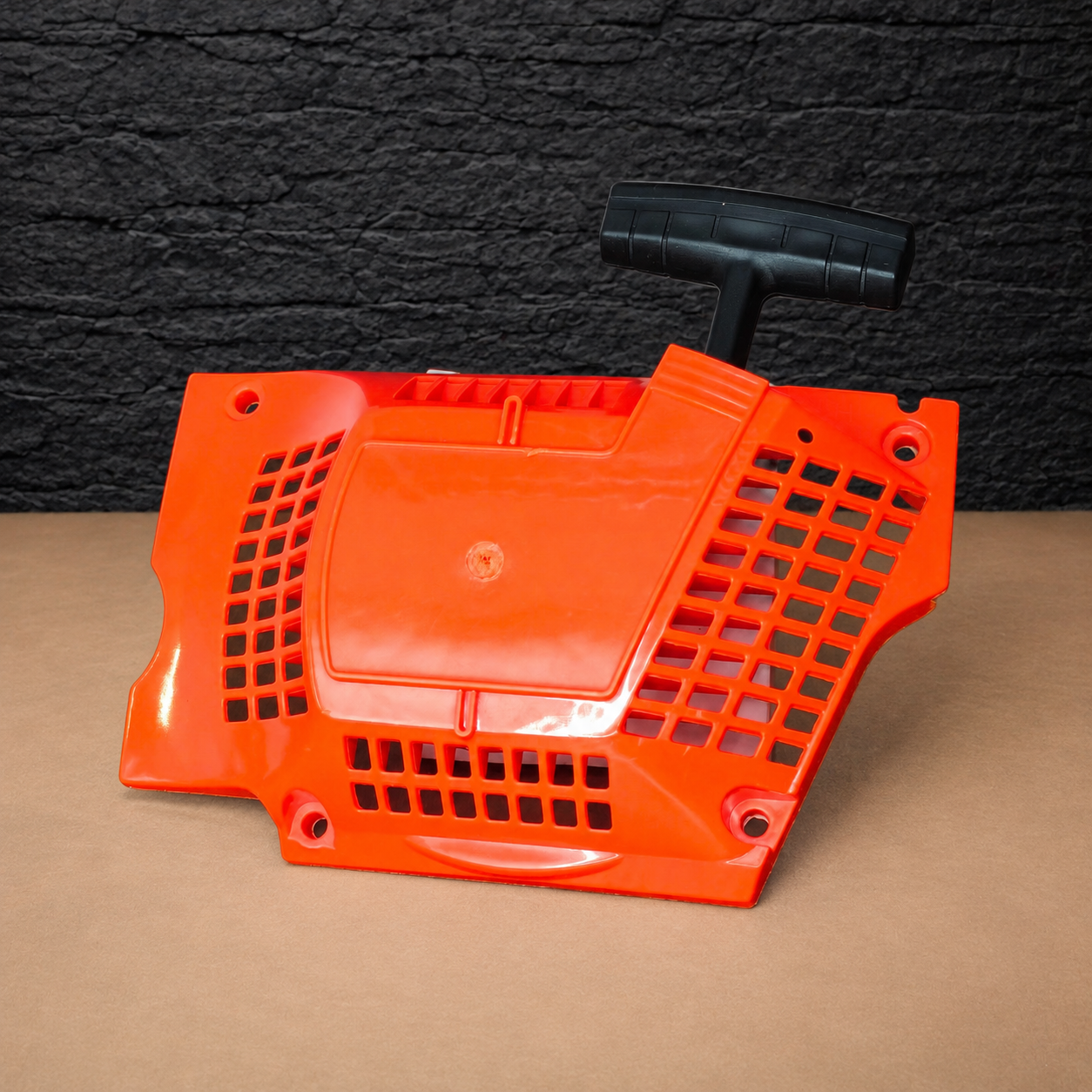

The photographed assembly includes:

• Starter housing
• Starter pulley
• Recoil spring mechanism
• Starter rope
• Pull handle
• Internal engagement mechanism

Mounting screws are not shown and should not be assumed to be included. Therefore, retain the original screws if they are undamaged and suitable for reuse.

Before installation, inspect the starter cup, flywheel engagement components and surrounding covers. Also confirm that the engine turns freely. Excessive resistance can damage the new rope or pulley if the actual fault is inside the engine.

Install the housing evenly and avoid overtightening fasteners into plastic mounting points. Afterwards, pull the handle slowly several times and make sure the starter engages without slipping. The rope should also retract completely without rubbing or remaining loose.

Finally, start the chainsaw safely and confirm normal starter operation. Browse additional chainsaw parts for compatible engine, fuel-system and drive components.
