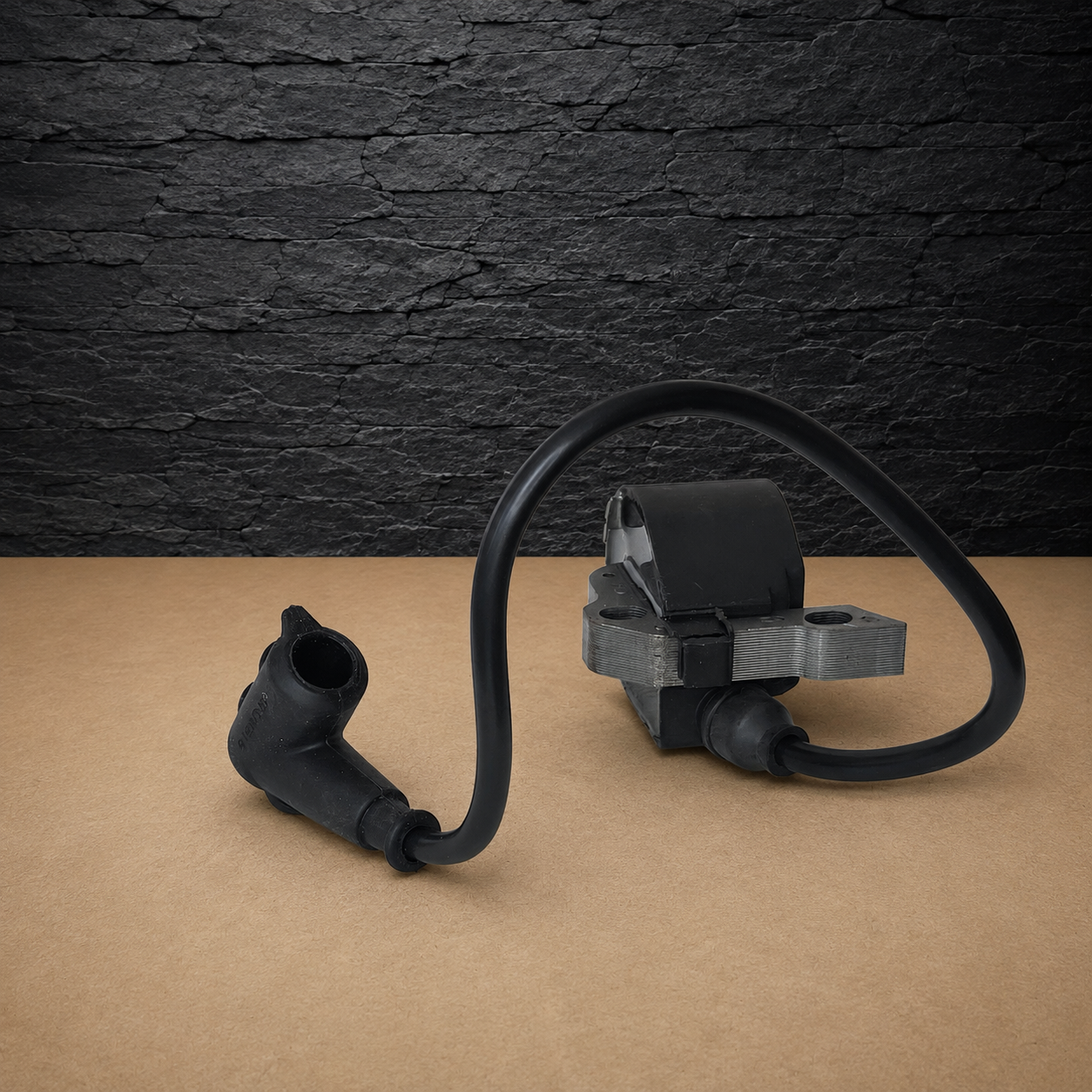

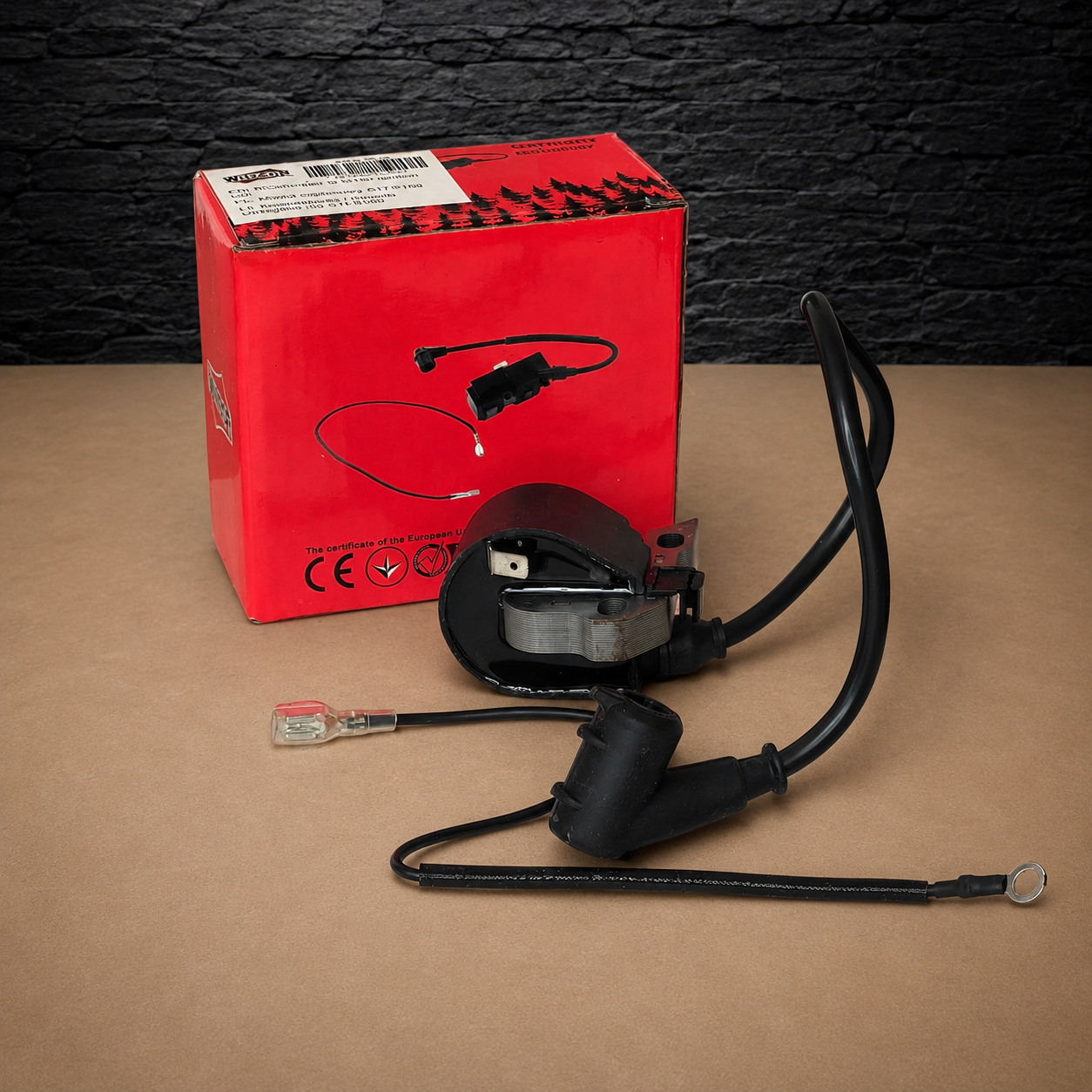

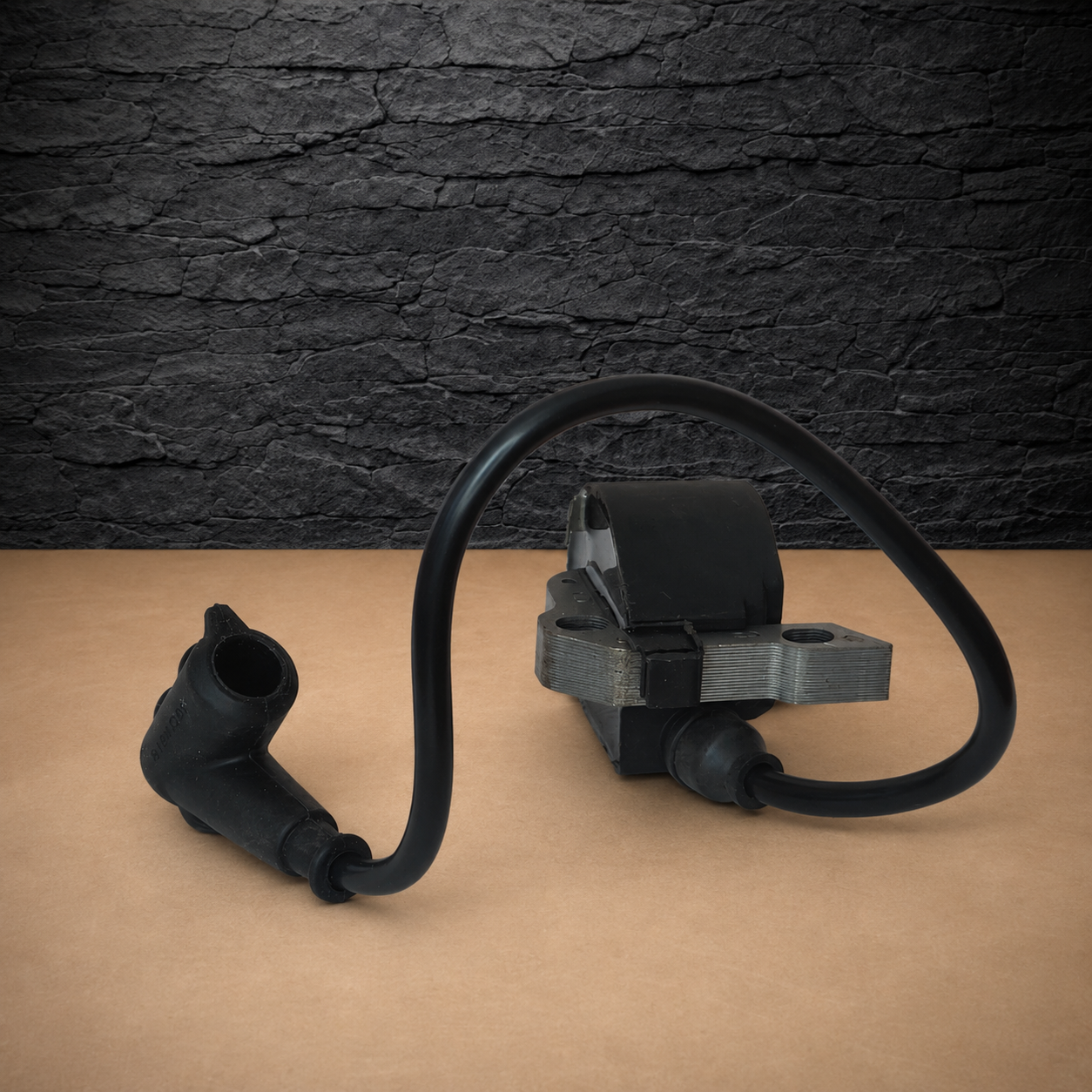

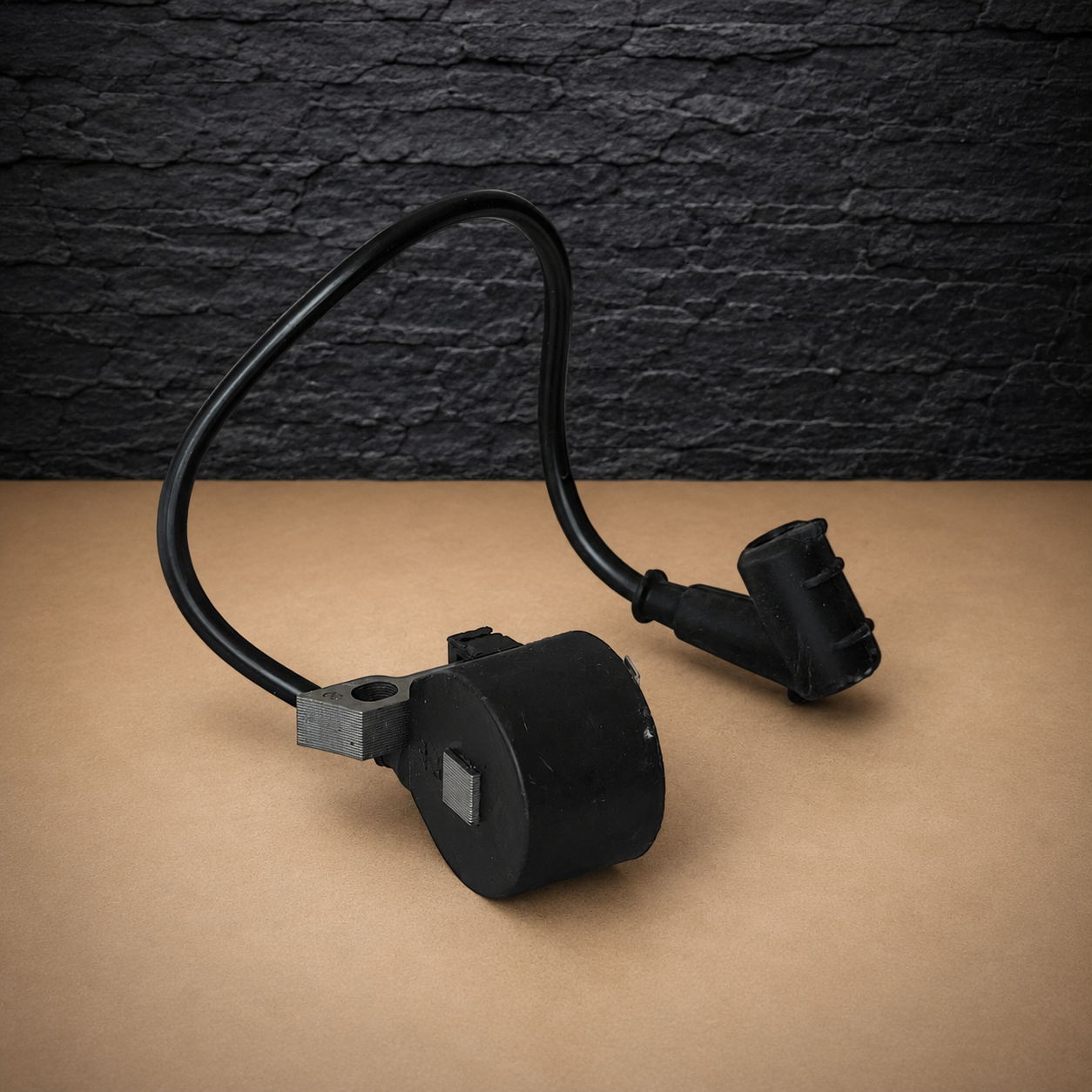

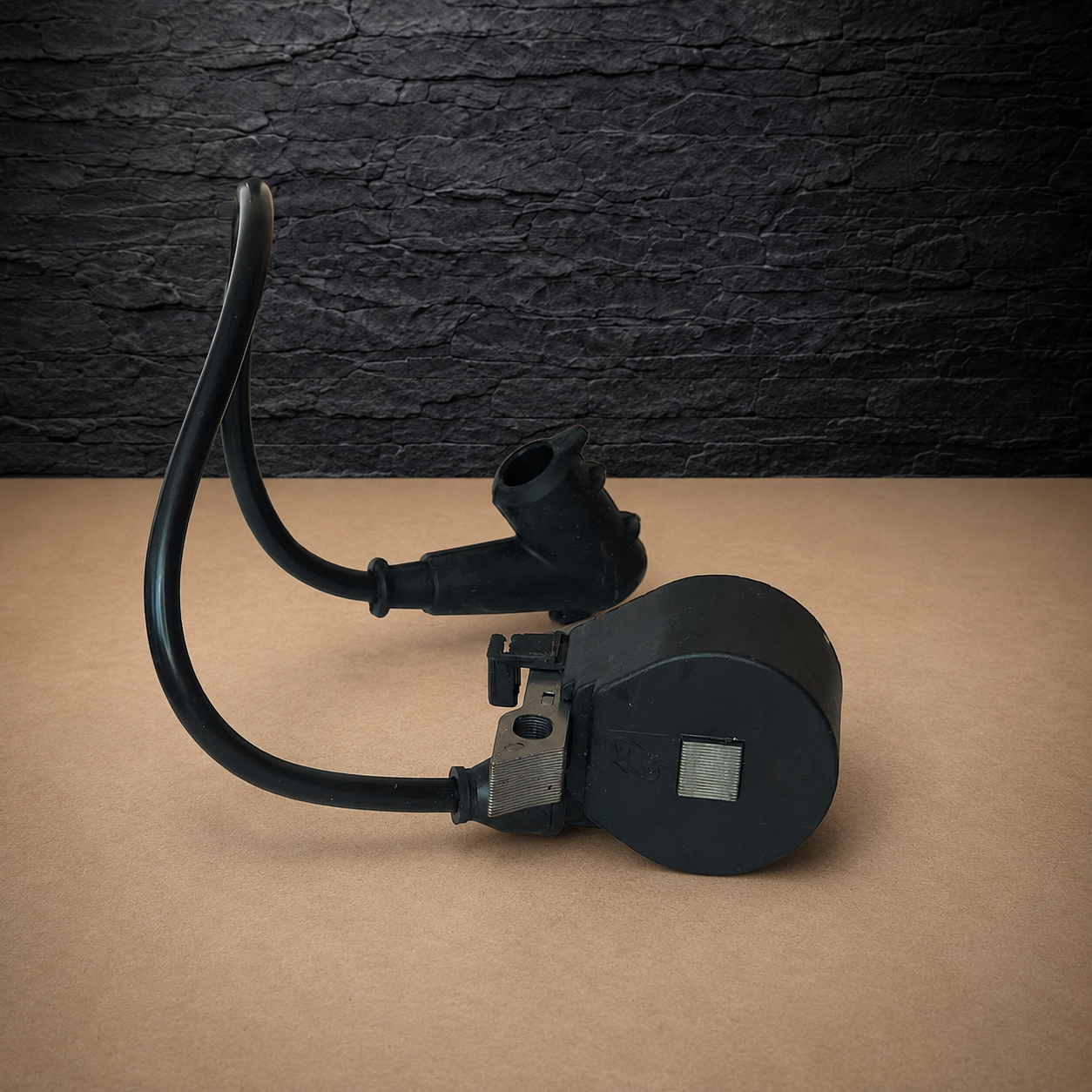

Ignition Coil Module for STIHL FS160, FS180, FS290, FR220 and MS200 – 00004001306

Description

This STIHL FS160 ignition coil is a Winzor aftermarket module for compatible STIHL brushcutters, clearing saws and chainsaws. It replaces a failed module that causes weak spark, intermittent ignition or difficult starting.

STIHL FS160 ignition coil compatibility

The module fits compatible versions of:

• STIHL FS160
• STIHL FS180
• STIHL FS220
• STIHL FS280 and FS280K
• STIHL FS290
• STIHL FR220
• STIHL MS200 and MS200 T

Reference numbers:

• 0000 400 1306
• 00004001306
• 0000 400 1302
• 00004001302

STIHL used these references across several machine families and production periods. Therefore, compare the OEM number, mounting points and cable layout with the original ignition module.

Product information and fitting

• Product type: ignition coil and ignition module
• Brand: Winzor
• Application: brushcutter, clearing saw or chainsaw
• Engine type: two-stroke petrol
• Condition: new aftermarket replacement part

The module creates the high-voltage spark and controls its timing in relation to the flywheel. Consequently, a serviceable coil supports dependable starting and consistent operation throughout the engine-speed range.

Before installation, check the spark plug, flywheel magnets and stop-switch wiring. Also set the air gap between the flywheel and module correctly. Finally, route the ignition and stop cables away from moving or hot components.

Browse additional brushcutter and strimmer parts. For original machine diagrams and model-specific information, consult STIHL PartsOnline.
