Description
This Stihl TS700 cylinder kit is a 56mm HYWAY TITANIKEL cylinder and piston assembly for compatible Stihl TS700 and TS800 petrol cut-off saws.
It is suitable for replacing:
- A damaged cylinder bore
- A worn piston
- Damaged piston rings
Replacement reference:
- 4224 020 1205

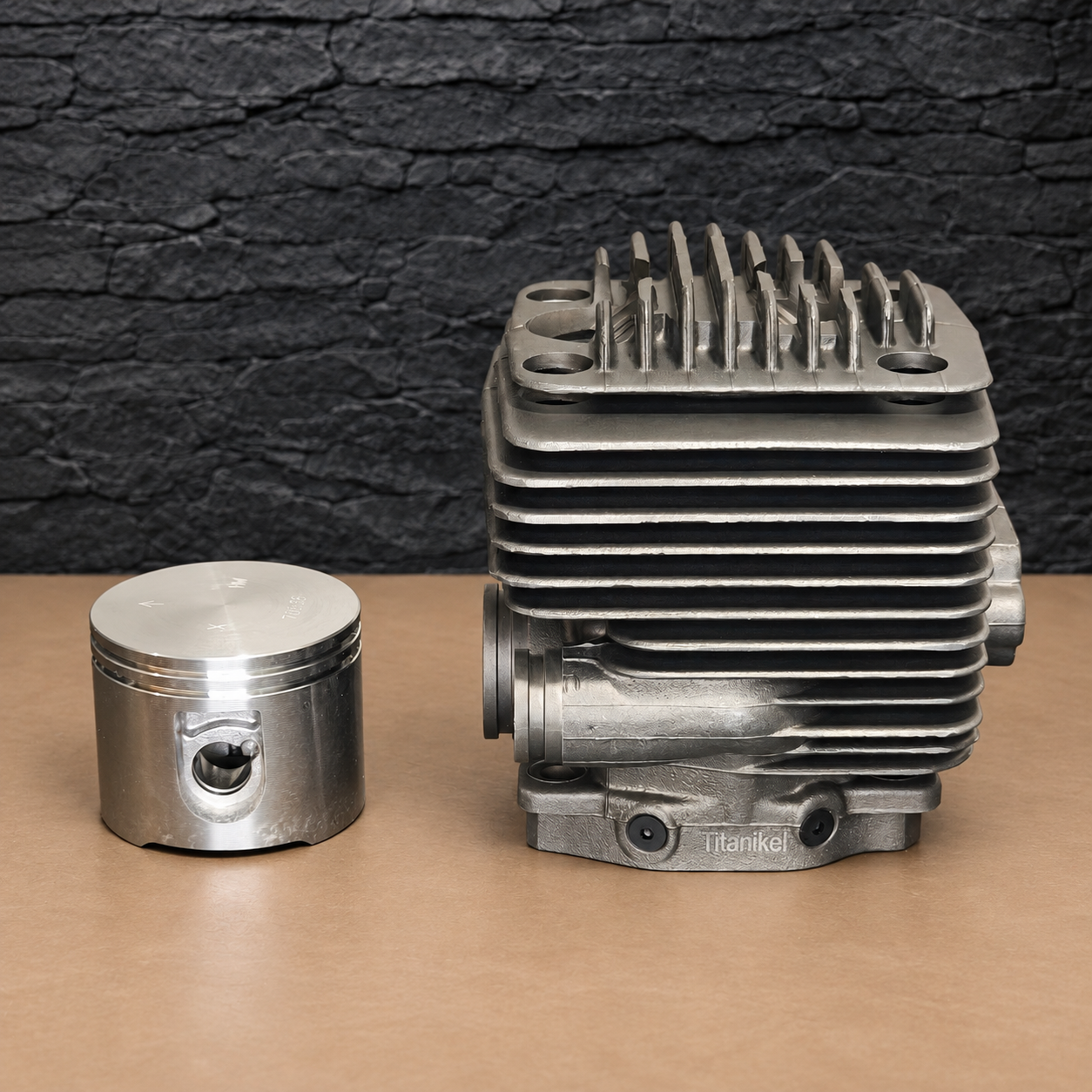

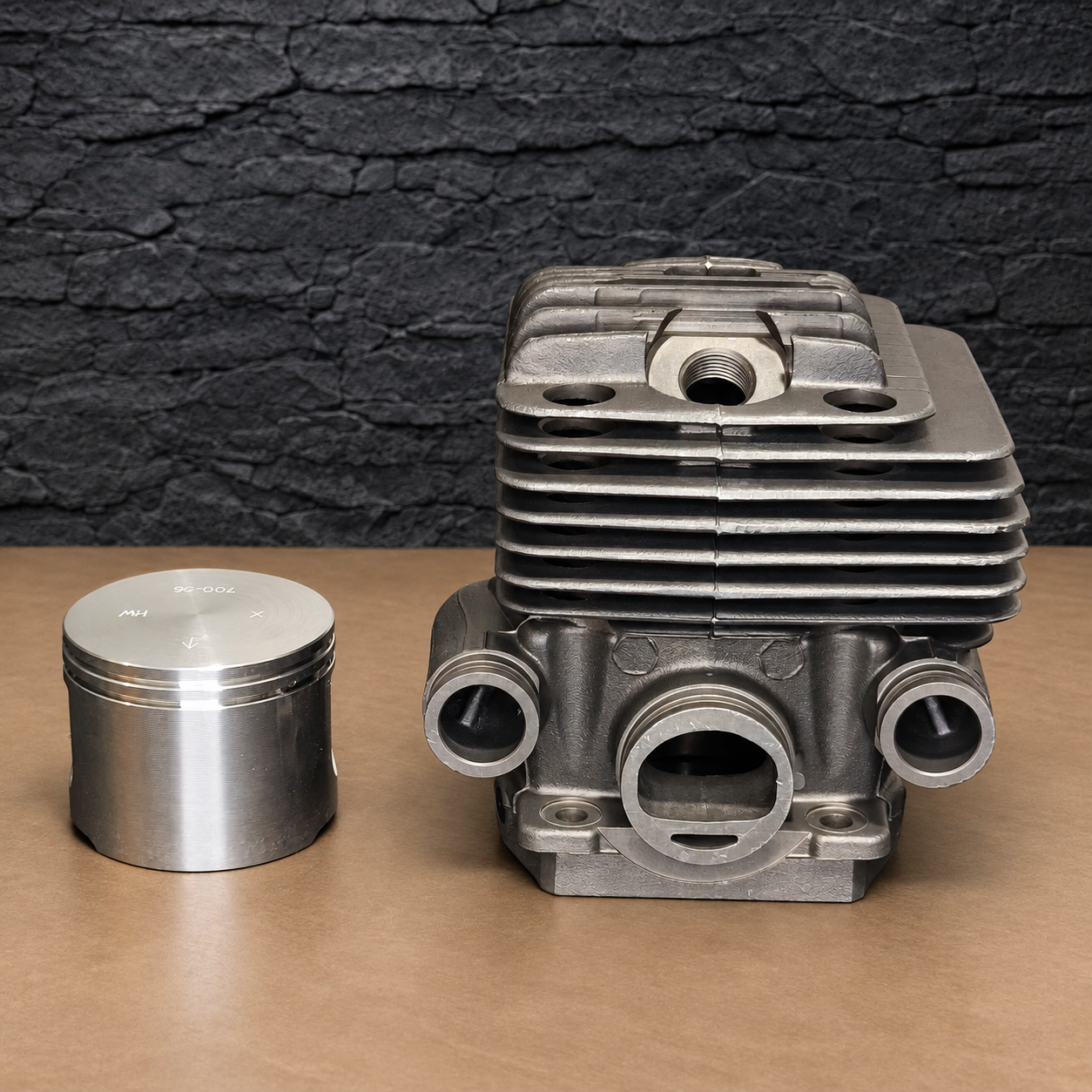

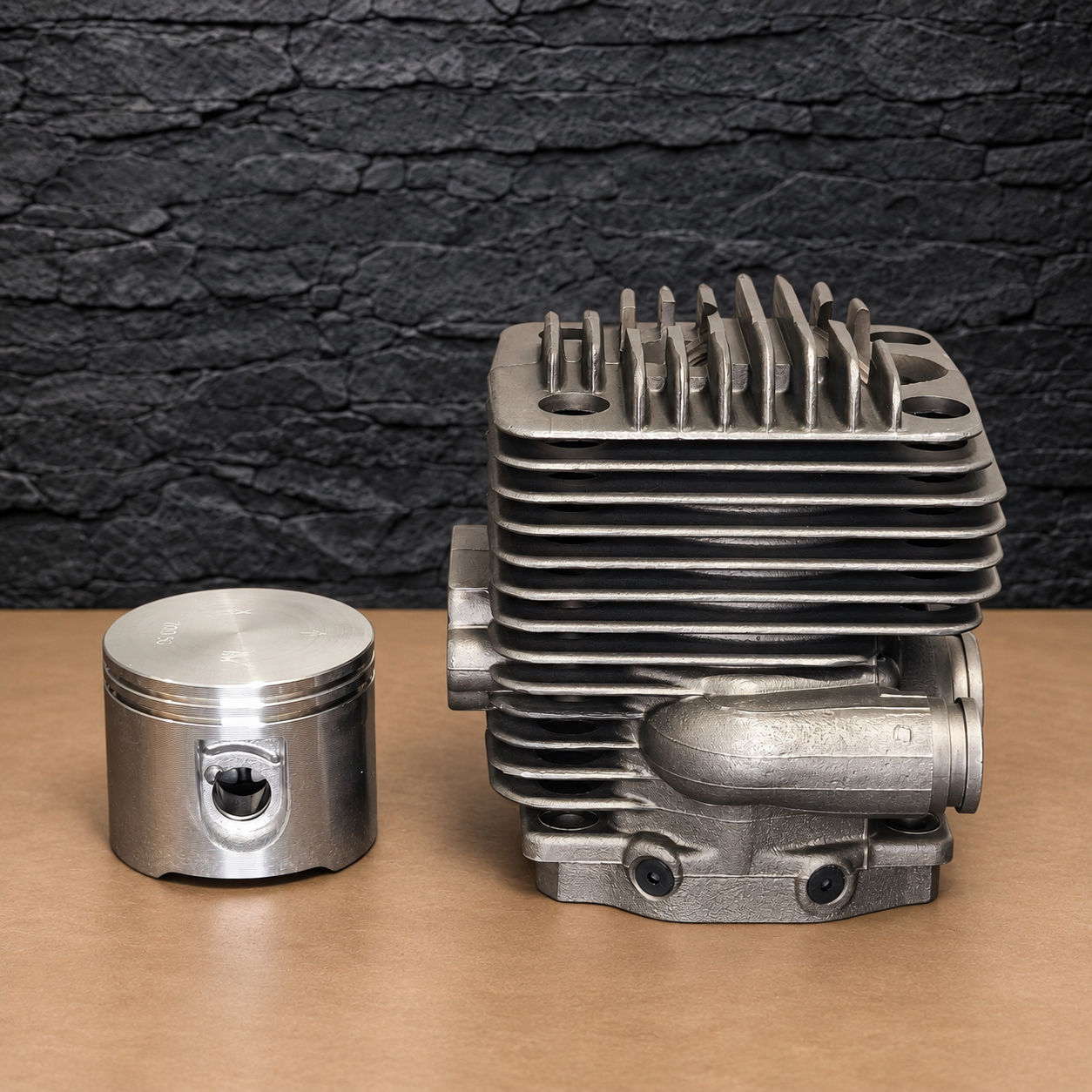

The cylinder features HYWAY TITANIKEL bore coating and is supplied with a matching piston assembly.
This is a HYWAY aftermarket replacement and not an original Stihl cylinder.
Compatibility
- Stihl TS700
- Stihl TS800
Cylinder bore:
- 56mm
Before ordering, compare:
- Existing cylinder part reference
- Intake connection
- Cylinder base
- Sealing arrangement
Do not select the cylinder solely by the machine’s cutting-disc size.
Keep the removed cylinder until the replacement has been physically compared.

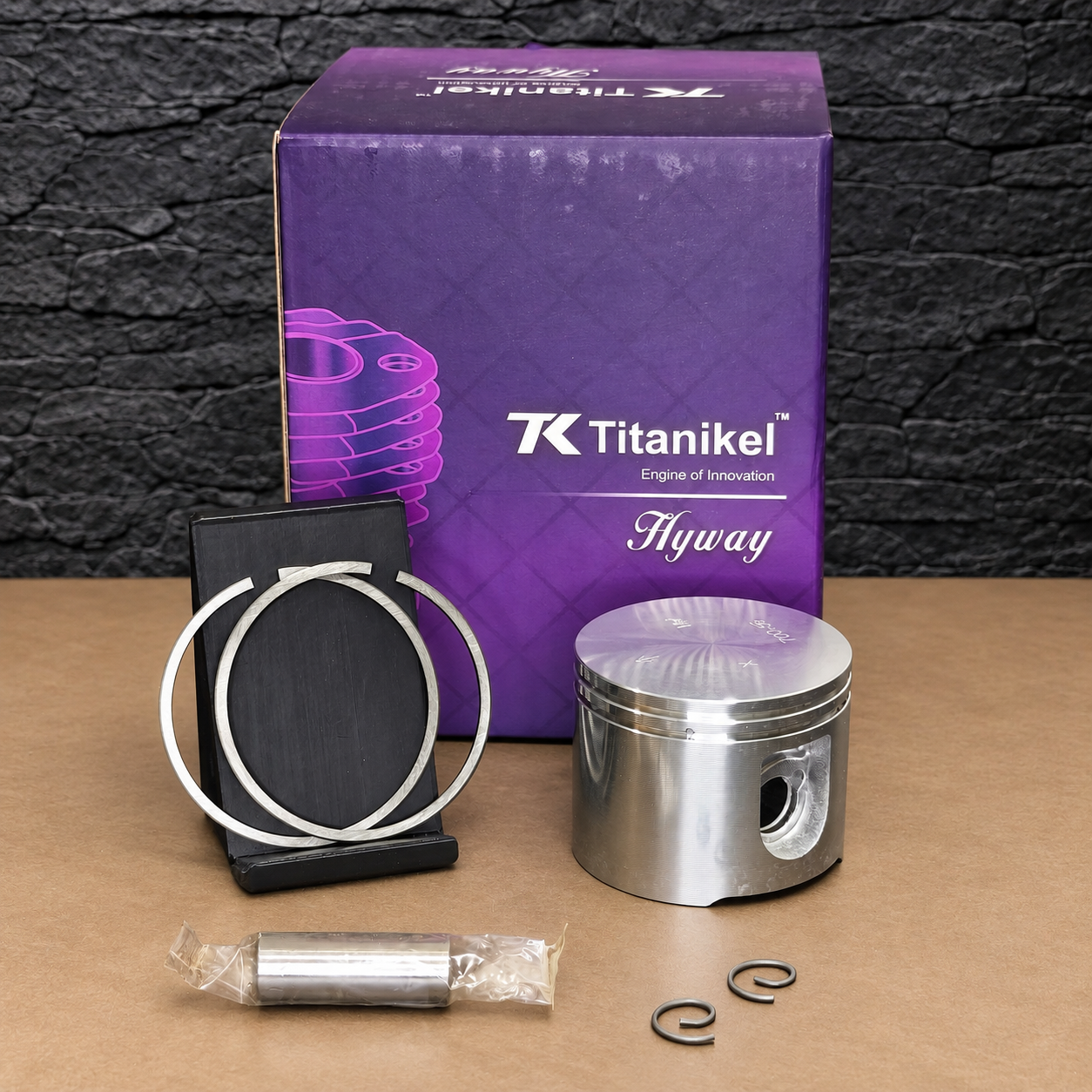

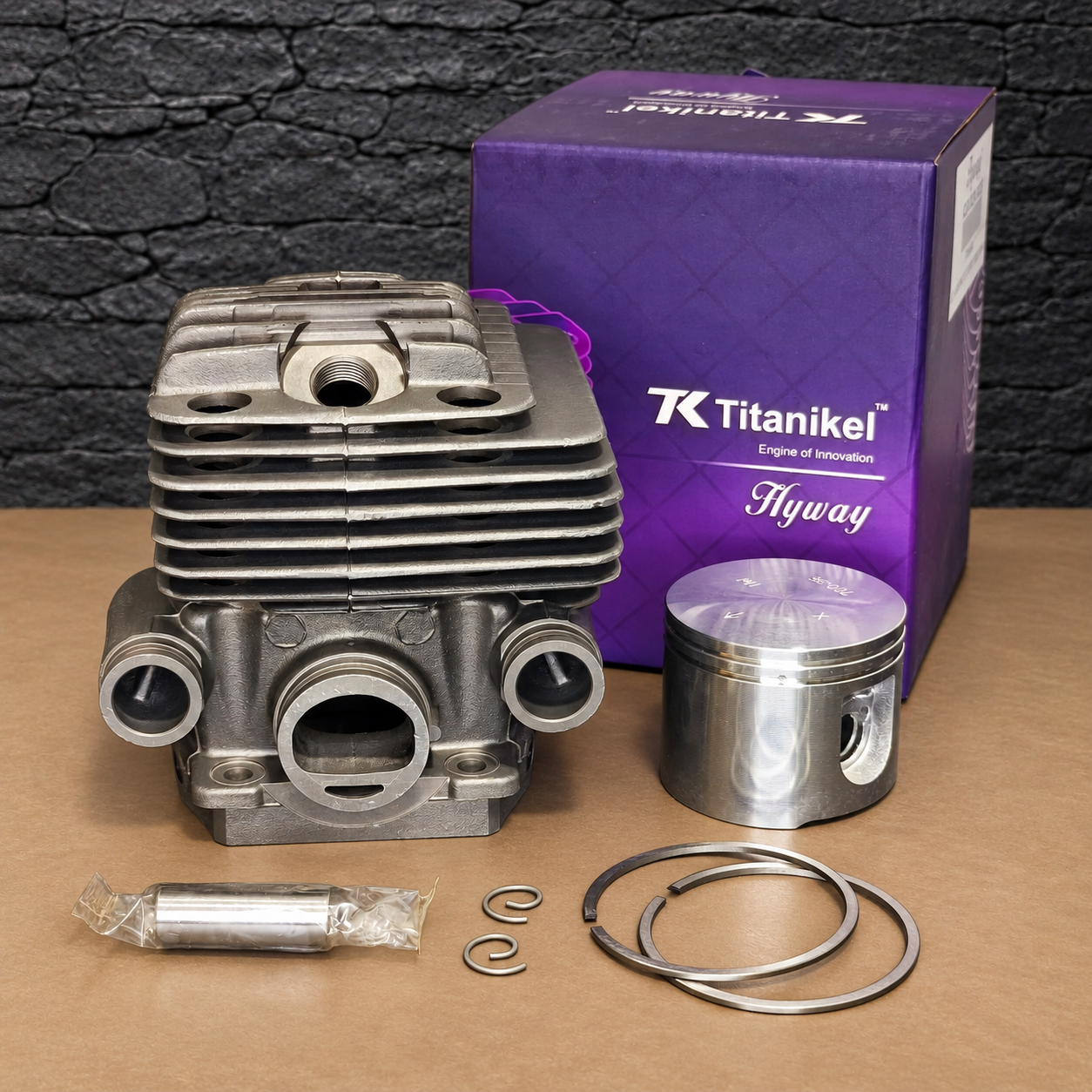

Cylinder kit contents
The kit includes:
- 56mm TITANIKEL cylinder
- Matching piston
- Piston rings
- Piston pin
- Piston-pin circlips
Additional seals, bearings and other repair parts should be ordered separately if required.
Before installation
Inspect:
- Intake components
- Crankshaft components
- Reused bearings
- Sealing surfaces
- Fuel system
- Carburettor
Keep the open engine protected from contamination.
Follow the applicable service procedure for:
- Piston installation
- Ring positioning
- Sealing
- Tightening
Identify and correct the cause of the original cylinder damage before returning the machine to work.
Browse MTP spare parts for other components needed to complete the repair.
