Description

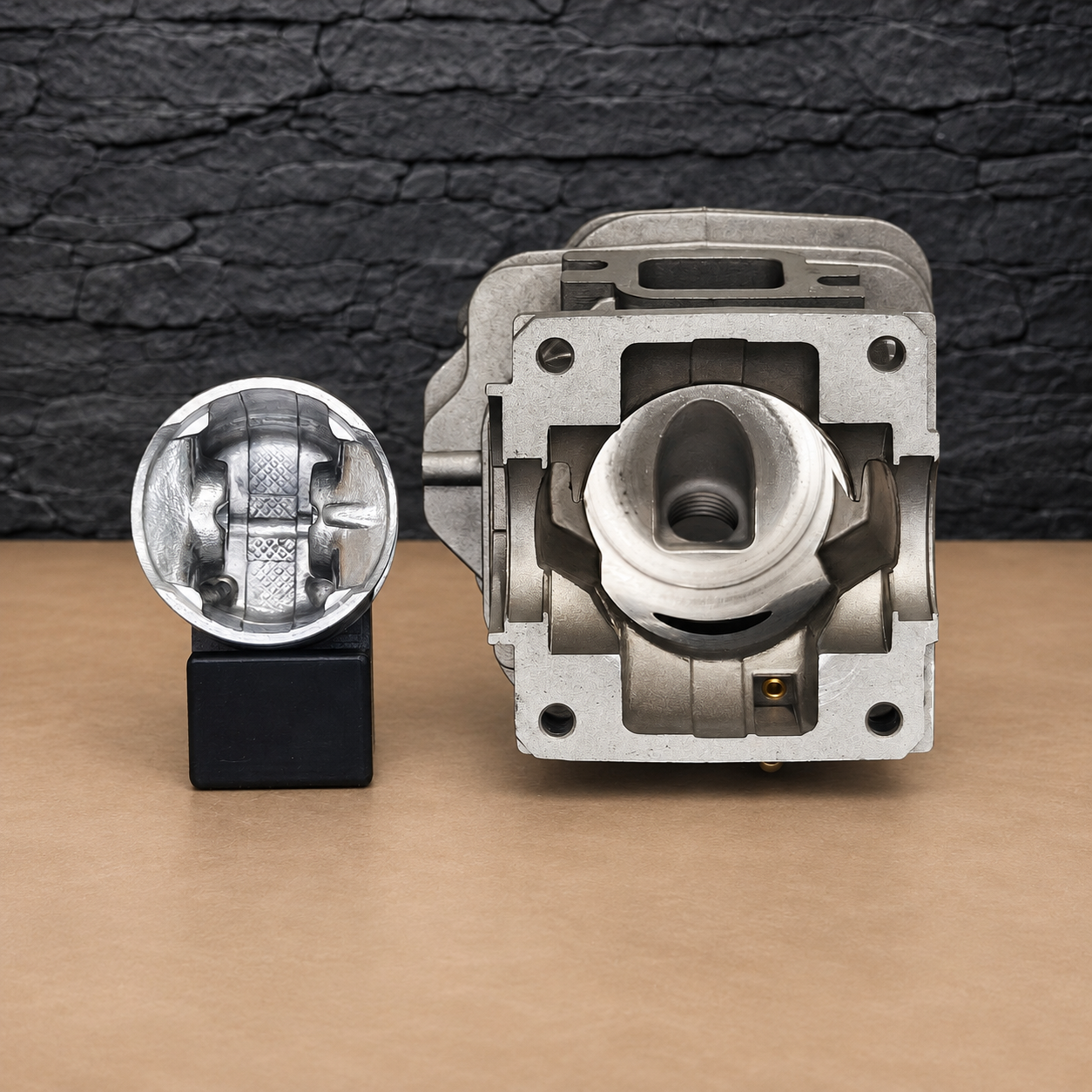

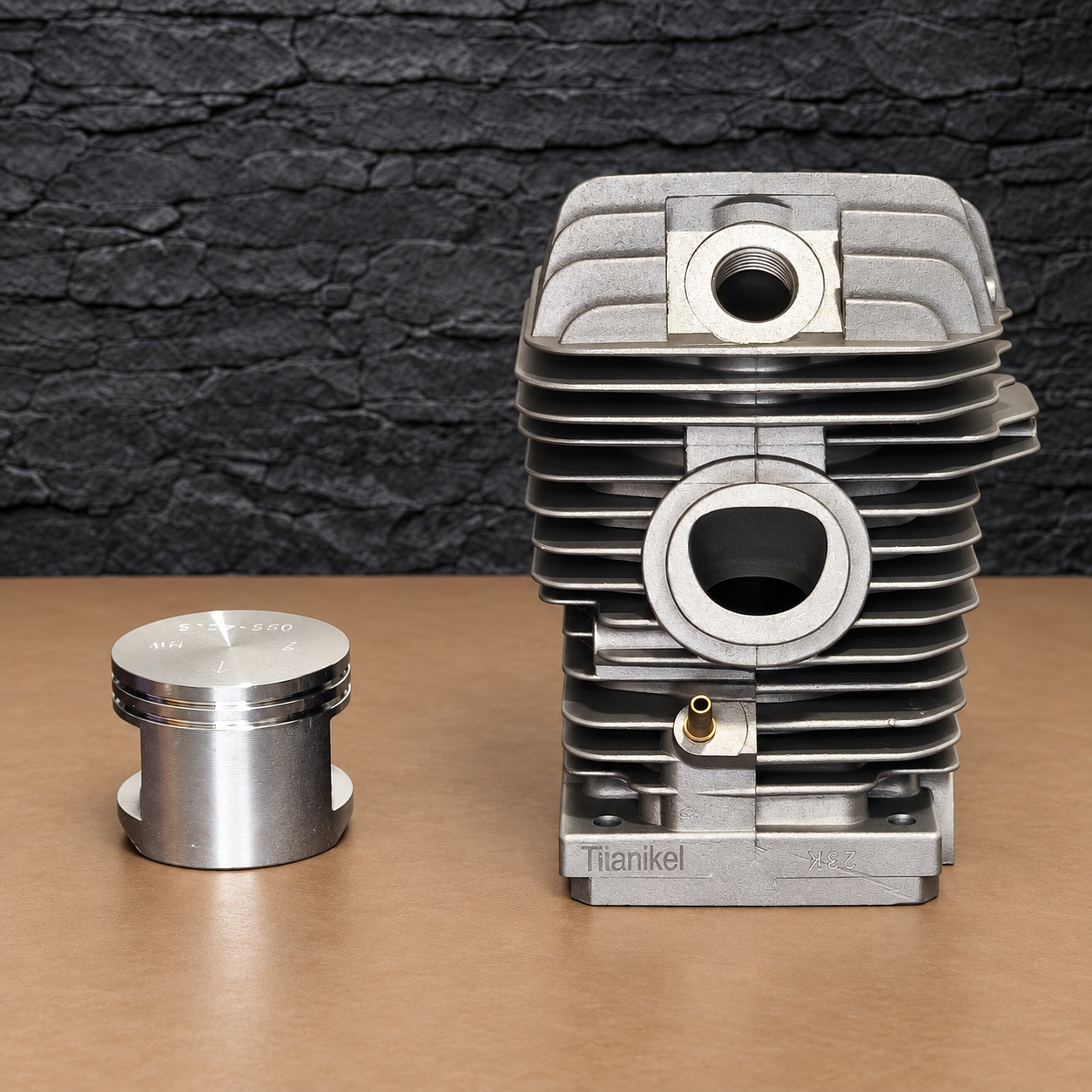

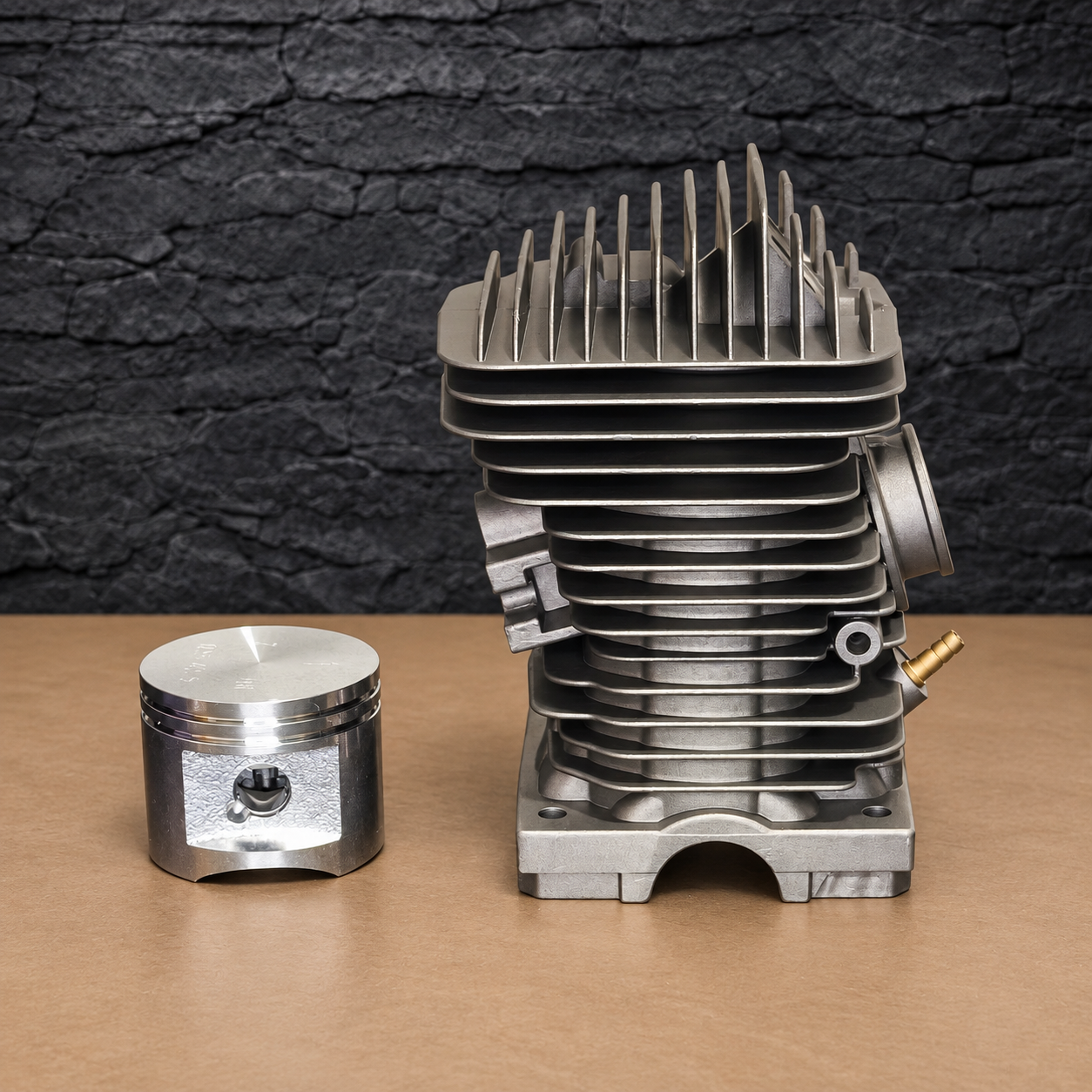

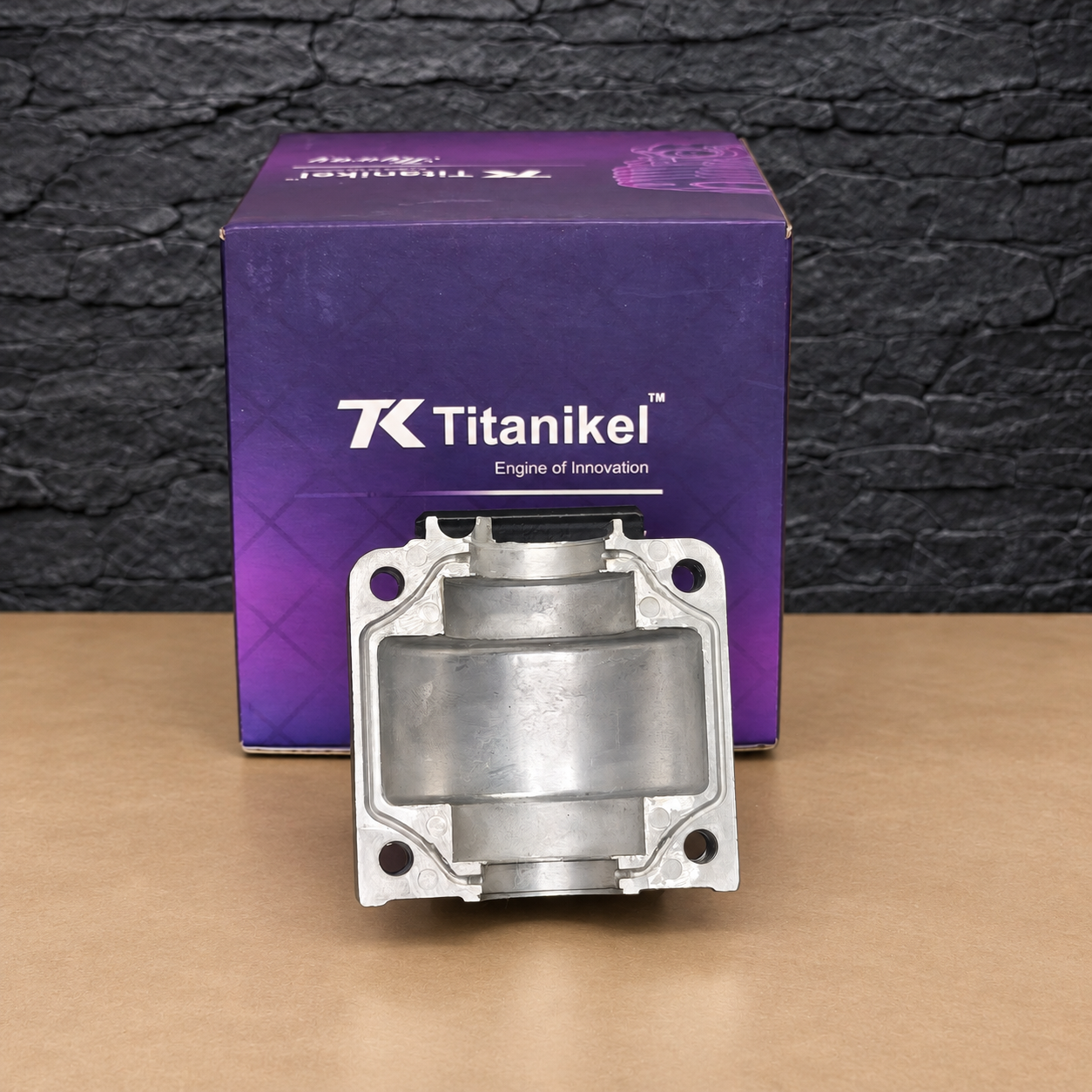

This Stihl MS250 cylinder kit is a 42.5mm HYWAY TITANIKEL cylinder and piston assembly for rebuilding compatible Stihl 025 and MS250 chainsaws.
It provides the main cylinder-group components required when replacing:
- A damaged cylinder
- A worn piston
- Failed or worn piston rings
Replacement reference:
1123 020 1209
The cylinder features HYWAY TITANIKEL bore coating and is supplied with a matching piston assembly.
This is a HYWAY aftermarket replacement, not an original Stihl cylinder.
Compatibility
Standard 42.5mm applications
- Stihl 025
- Stihl MS250
- Compatible MS250 C versions using the corresponding cylinder configuration
42.5mm larger-bore conversion applications
- Stihl 023
- Stihl MS230
For the 023 and MS230, this kit increases the cylinder bore from the original 40mm to 42.5mm.
It should therefore be treated as a larger-bore conversion rather than an original-size replacement.
Before ordering for a conversion, compare:
- Cylinder design
- Intake connection
- Lower crankcase arrangement
- Existing cylinder bore

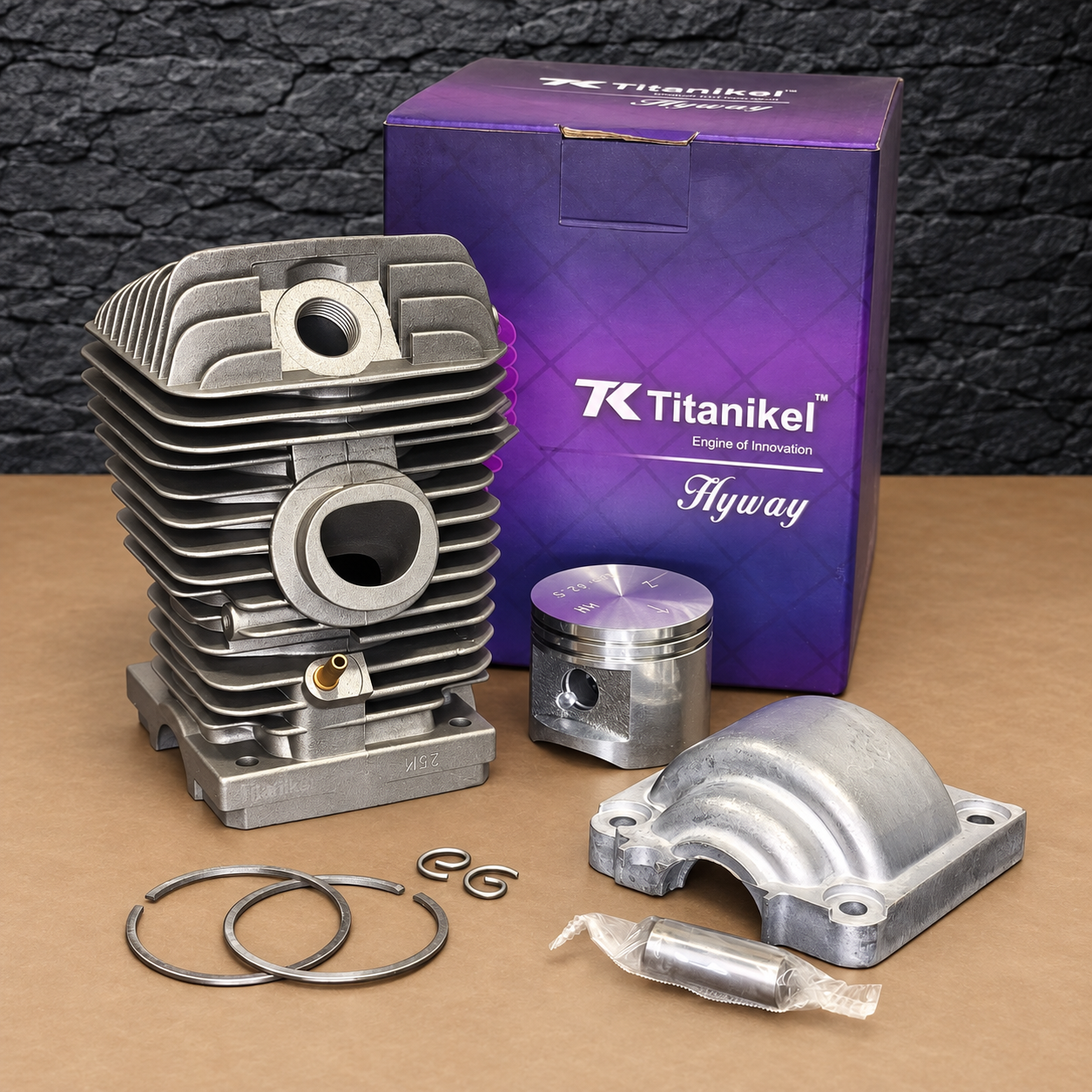

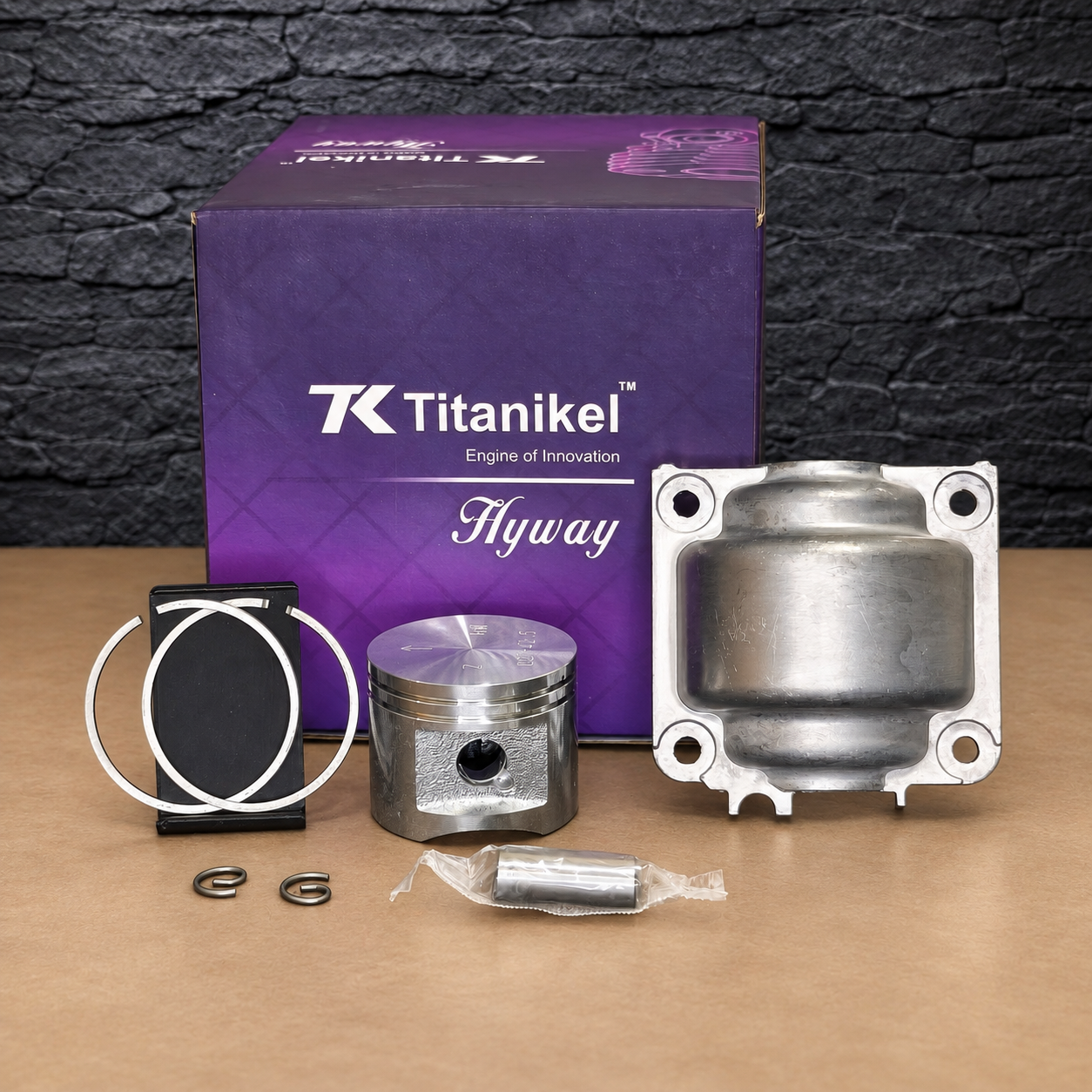

Cylinder kit contents
The kit includes:
- 42.5mm TITANIKEL cylinder
- Matching piston
- Piston rings
- Piston pin
- Piston-pin circlips
Use the supplied cylinder and piston together.
Do not combine this 42.5mm cylinder with an existing piston of a different diameter.
Before installation
Check the condition of:
- Piston-pin bearing
- Crankshaft bearings
- Crankshaft seals
- Intake components
- Carburettor
- Fuel system
Inspect the original damaged parts before cleaning them, as their condition can help identify the cause of failure.
Correct any fuel-delivery issue, intake leak or carburettor problem before returning the saw to service.
Keep dirt, metal fragments and other contamination out of the crankcase during assembly.
Follow the correct service procedure for:
- Piston orientation
- Ring positioning
- Cylinder sealing
- Fastener tightening
Browse our Stihl chainsaw parts for other components required during the repair.
