Description

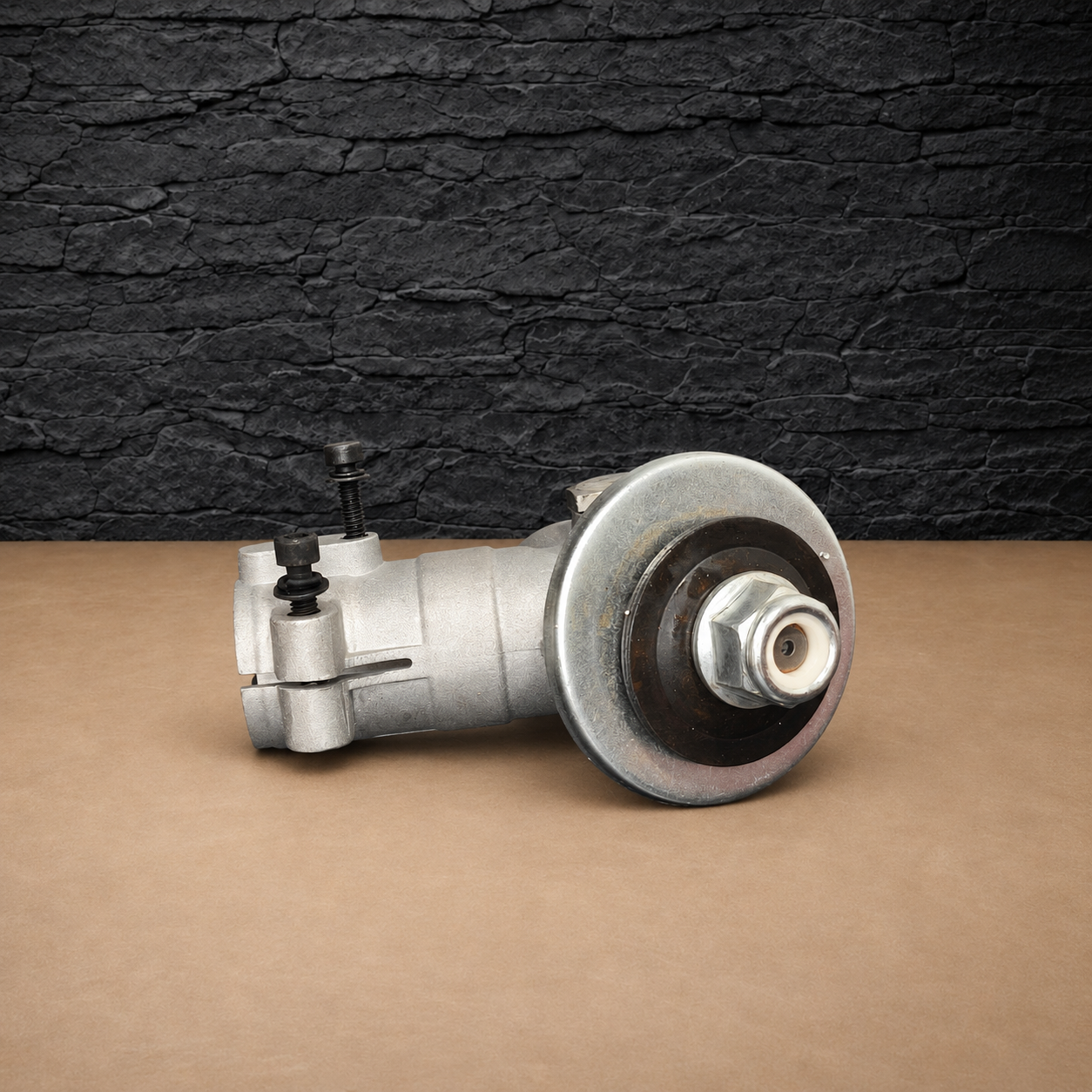

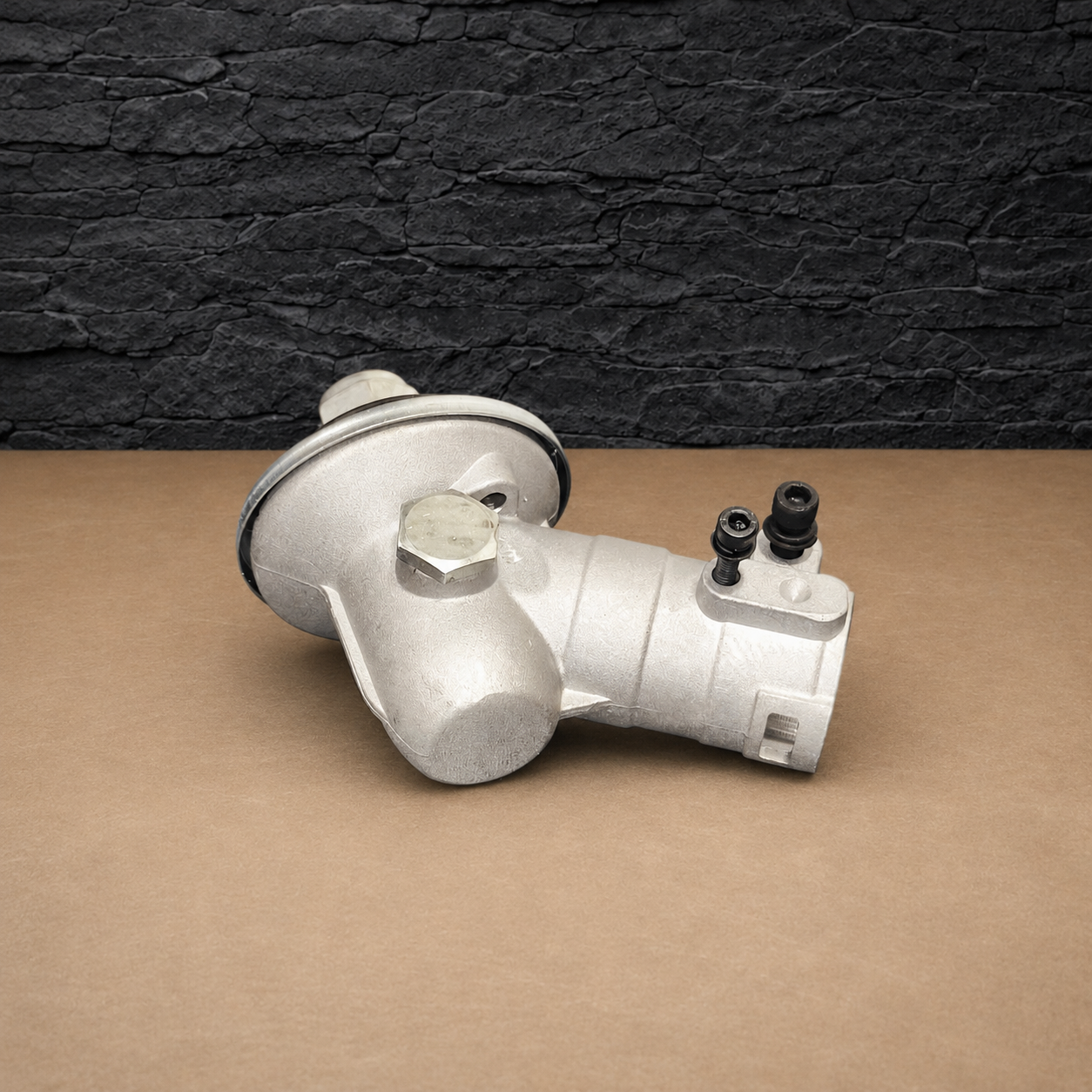

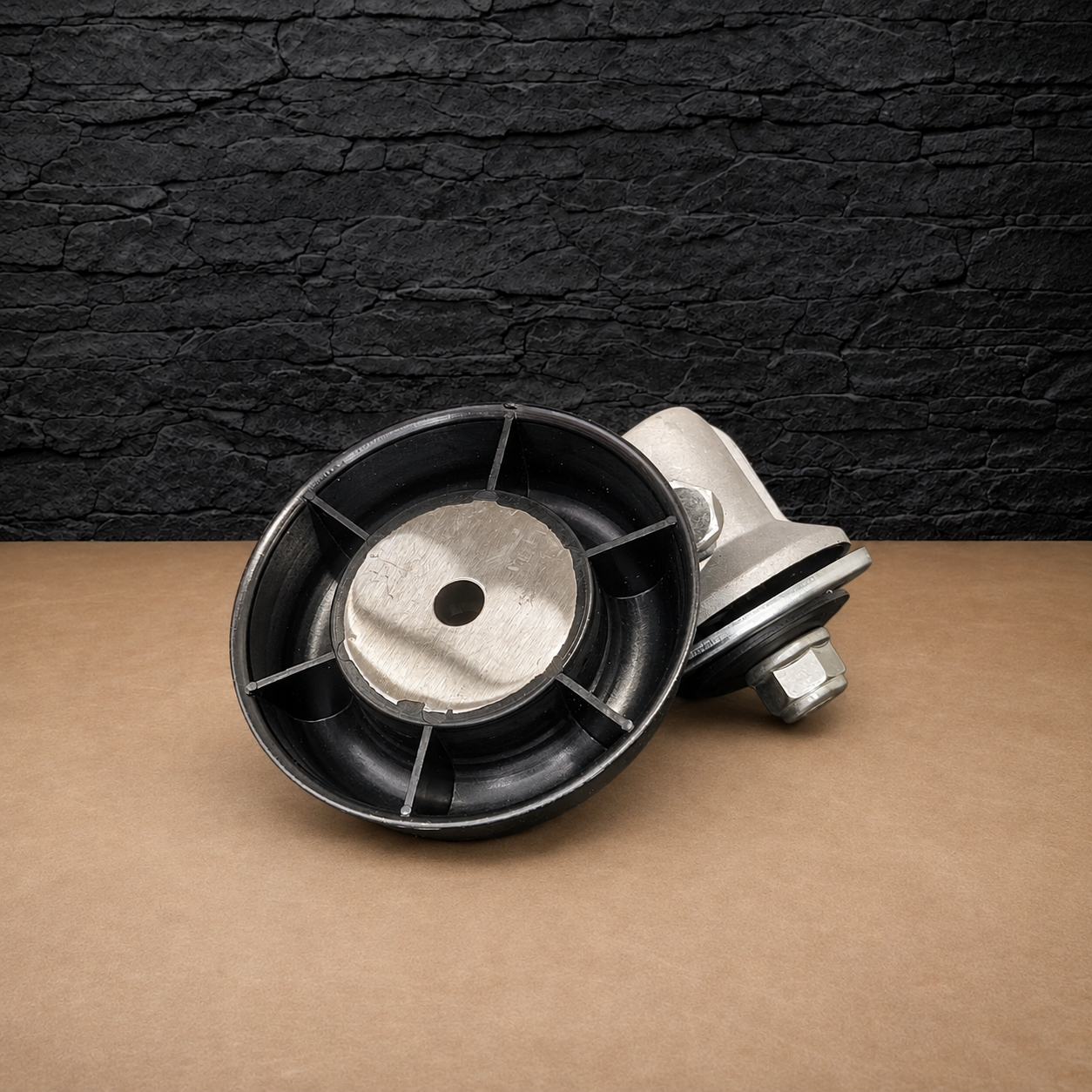

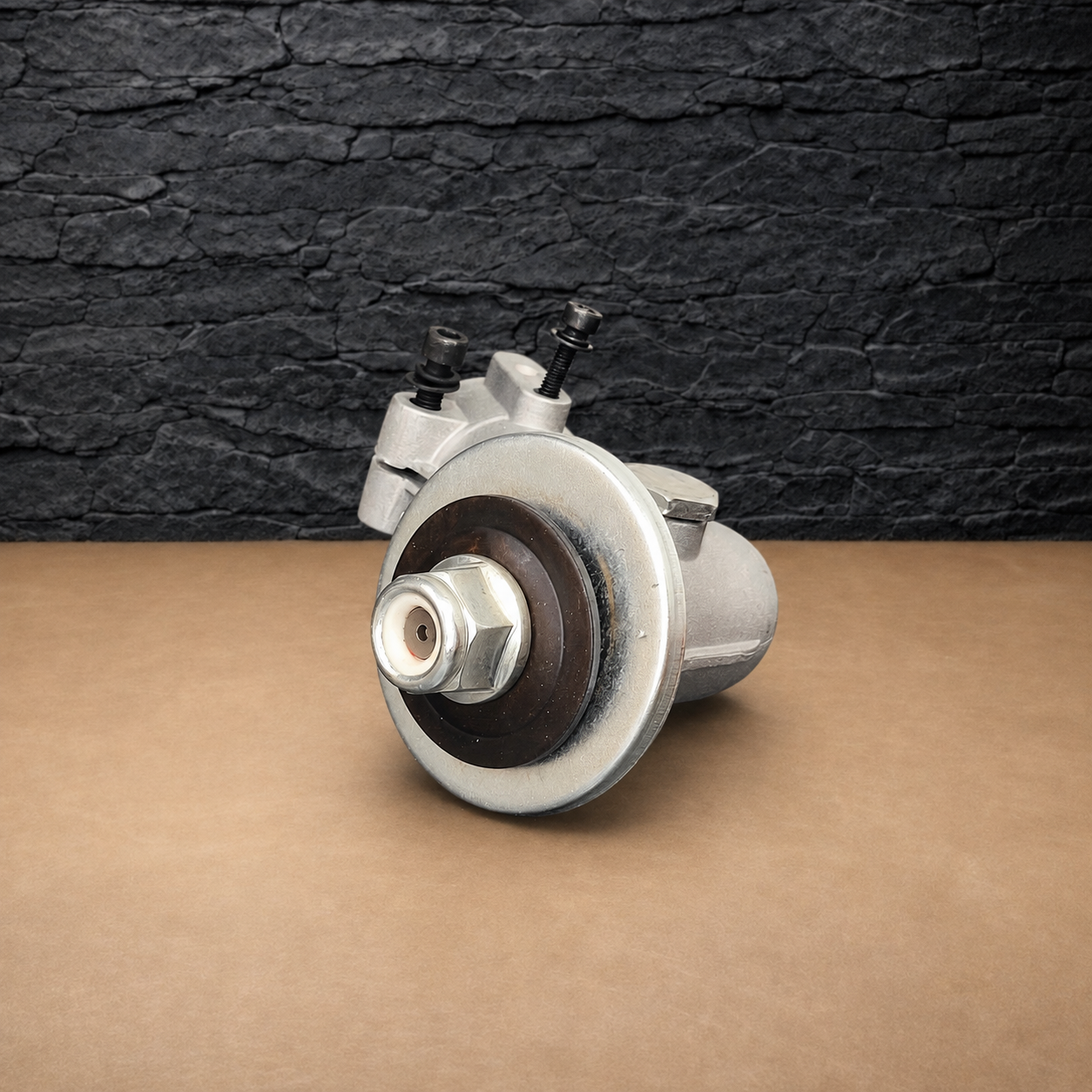

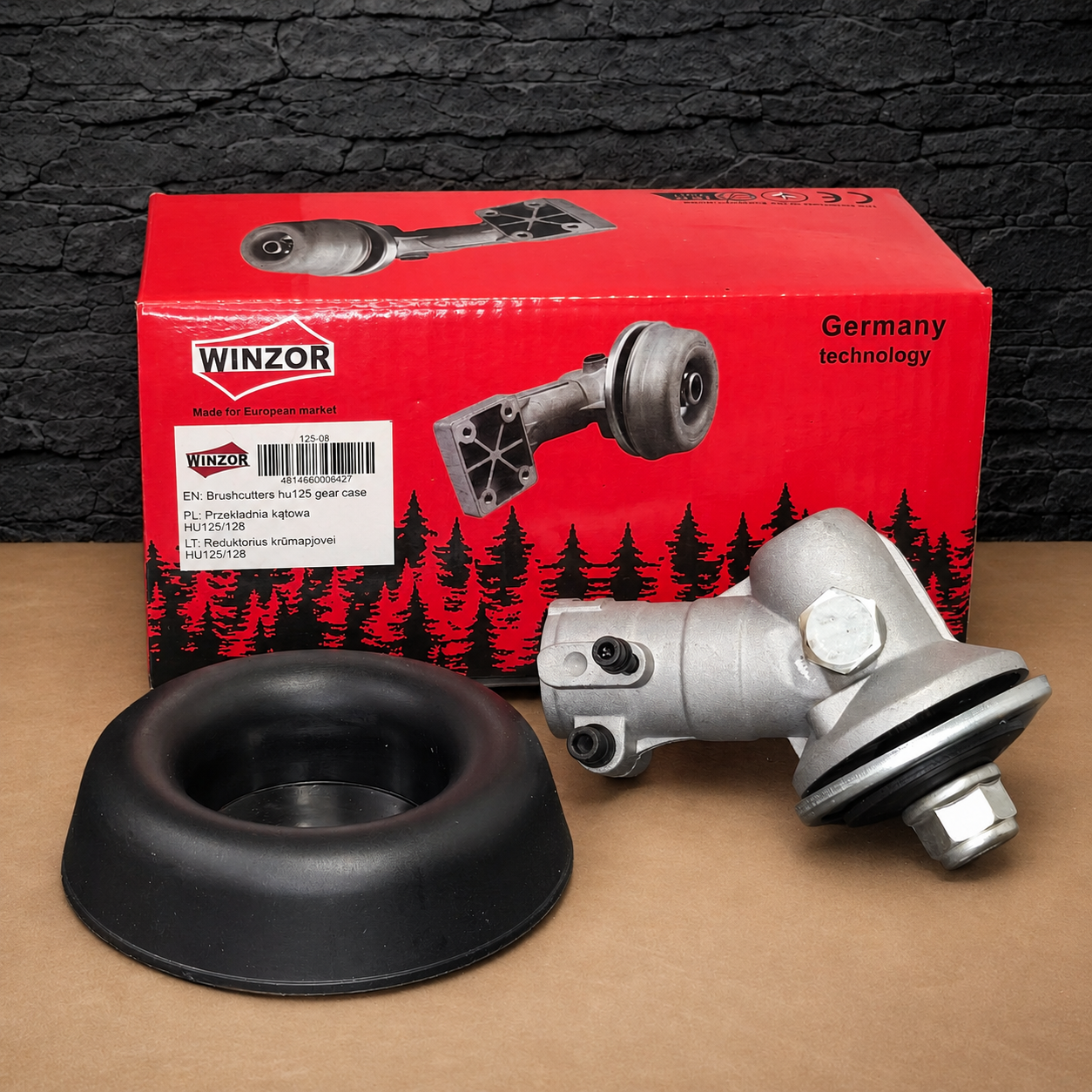

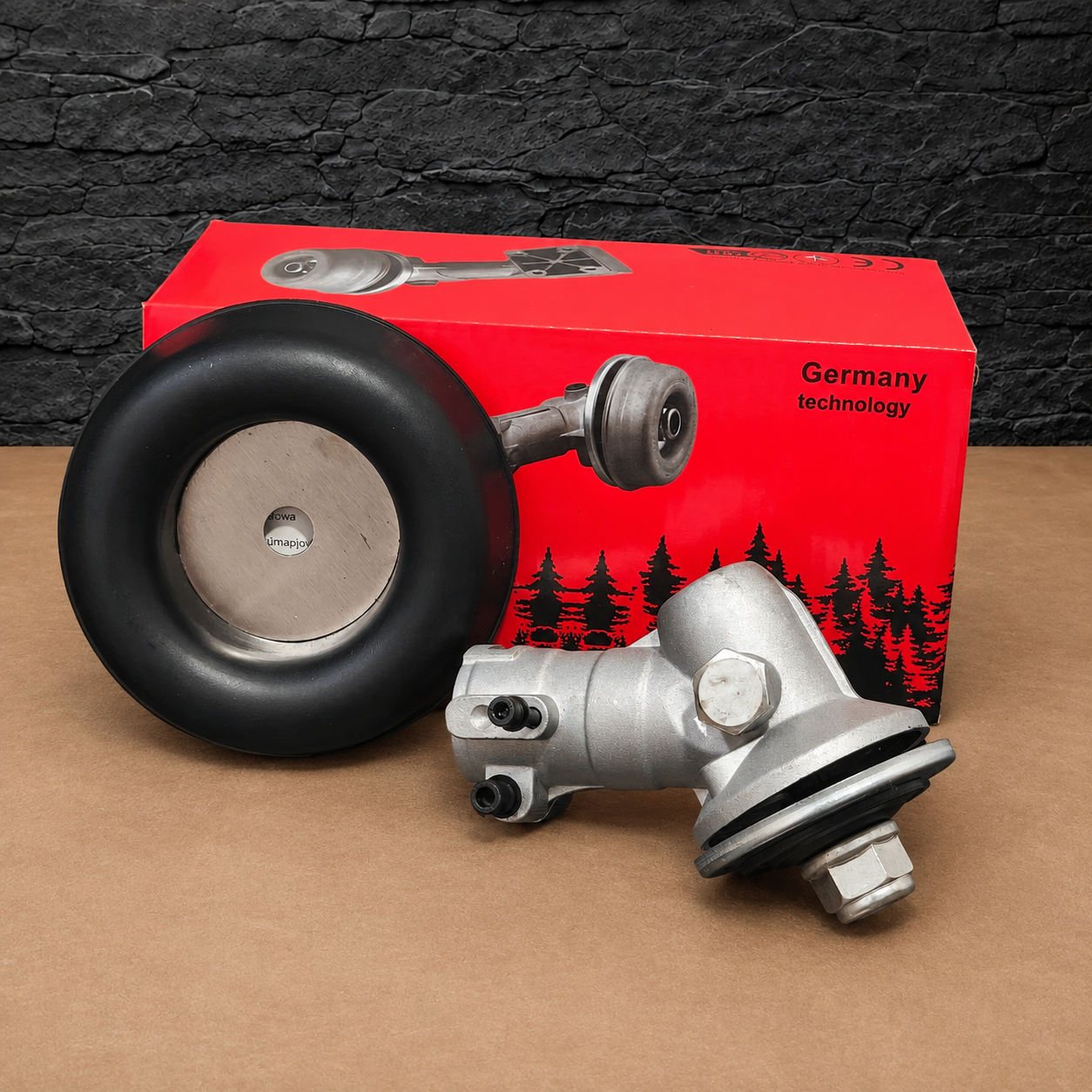

This Husqvarna 128R gearbox is an aftermarket lower bevel-gear assembly replacing Husqvarna OEM reference 530096295, also written as 530 09 62-95.
Husqvarna currently lists 530096295 as the bevel gear on machines including the 122LDX, 129L and 129LK, while OEM cross-reference data extends the same assembly across the 122, 124, 125, 128 and 129 families. Jonsered IPL data confirms the identical part on BC2128 and BC2228.
Compatible Husqvarna Models
The gearbox is catalogued for:
- Husqvarna 122LD
- Husqvarna 122LDX
- Husqvarna 122LK
- Husqvarna 122R
- Husqvarna 122RJ
- Husqvarna 124R
- Husqvarna 125L
- Husqvarna 125LD
- Husqvarna 125LDX
- Husqvarna 125R
- Husqvarna 125RJ
- Husqvarna 128DJX
- Husqvarna 128L
- Husqvarna 128LD
- Husqvarna 128LDX
- Husqvarna 128LX
- Husqvarna 128R
- Husqvarna 128RJ
- Husqvarna 129DJX
- Husqvarna 129L
- Husqvarna 129LDX
- Husqvarna 129LK
- Husqvarna 129R
- Husqvarna 129RJ
Compatible Jonsered Models
The same gearbox is used on:
- Jonsered BC2126
- Jonsered BC2128
- Jonsered BC2228
- Jonsered GC2126 C
OEM reference:
- 530096295
- 530 09 62-95
Husqvarna describes the part as a bevel gear, while OEM parts suppliers also describe 530096295 as the complete gearbox assembly.
Gearbox Function
The lower gearbox connects to the brushcutter drive shaft and transfers engine rotation through the bevel gears to the cutting attachment.
Typical reasons for replacement include excessive gearbox play, damaged gears, a seized output shaft, abnormal mechanical noise or a damaged gearbox housing.
Installation Checks

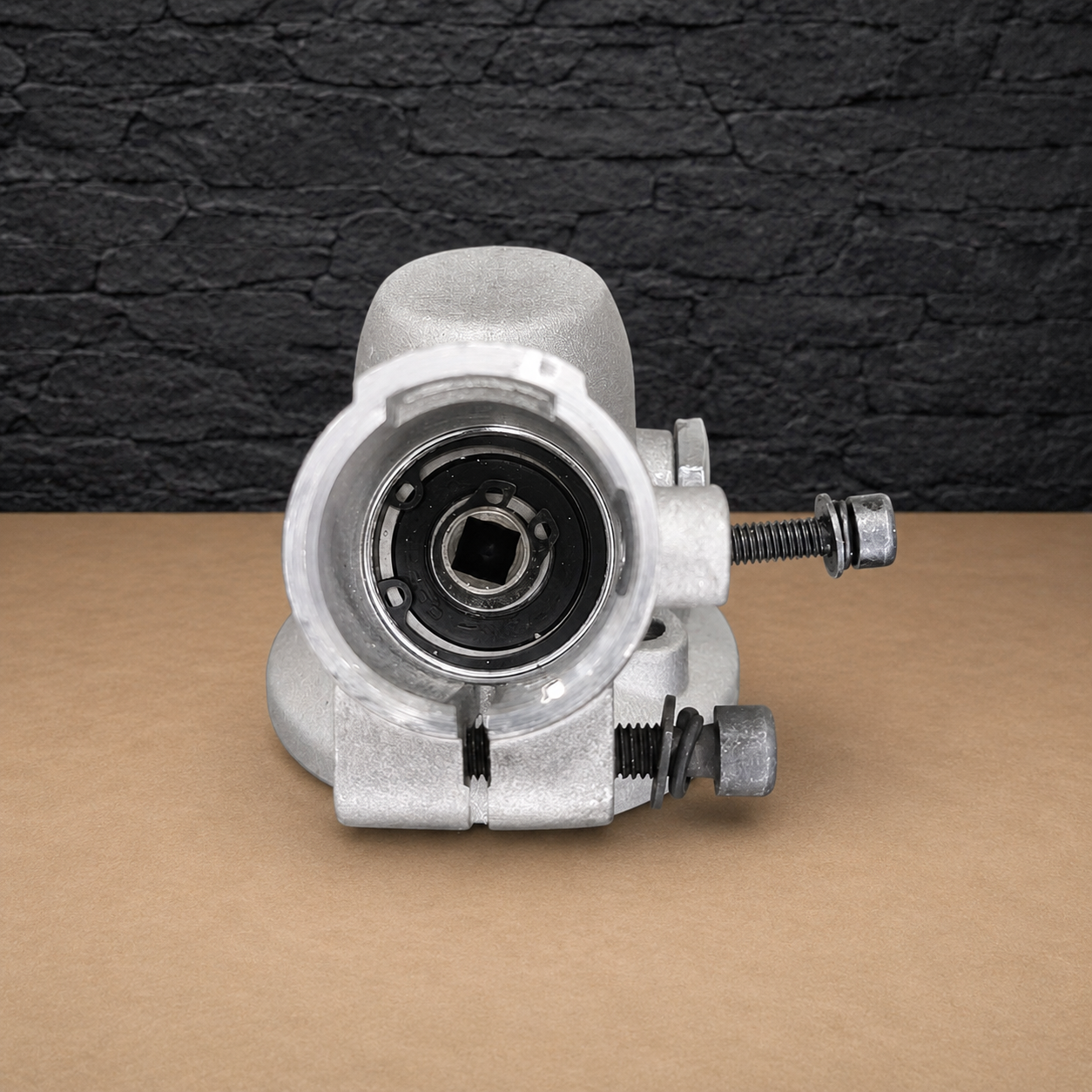

Before installation, inspect the drive-shaft end and splines for wear. Clean the shaft and make sure it slides fully into the gearbox input.
Fit the gearbox in the correct orientation and tighten the shaft-clamp fasteners evenly. Lubricate the bevel gears according to the machine’s maintenance requirements.

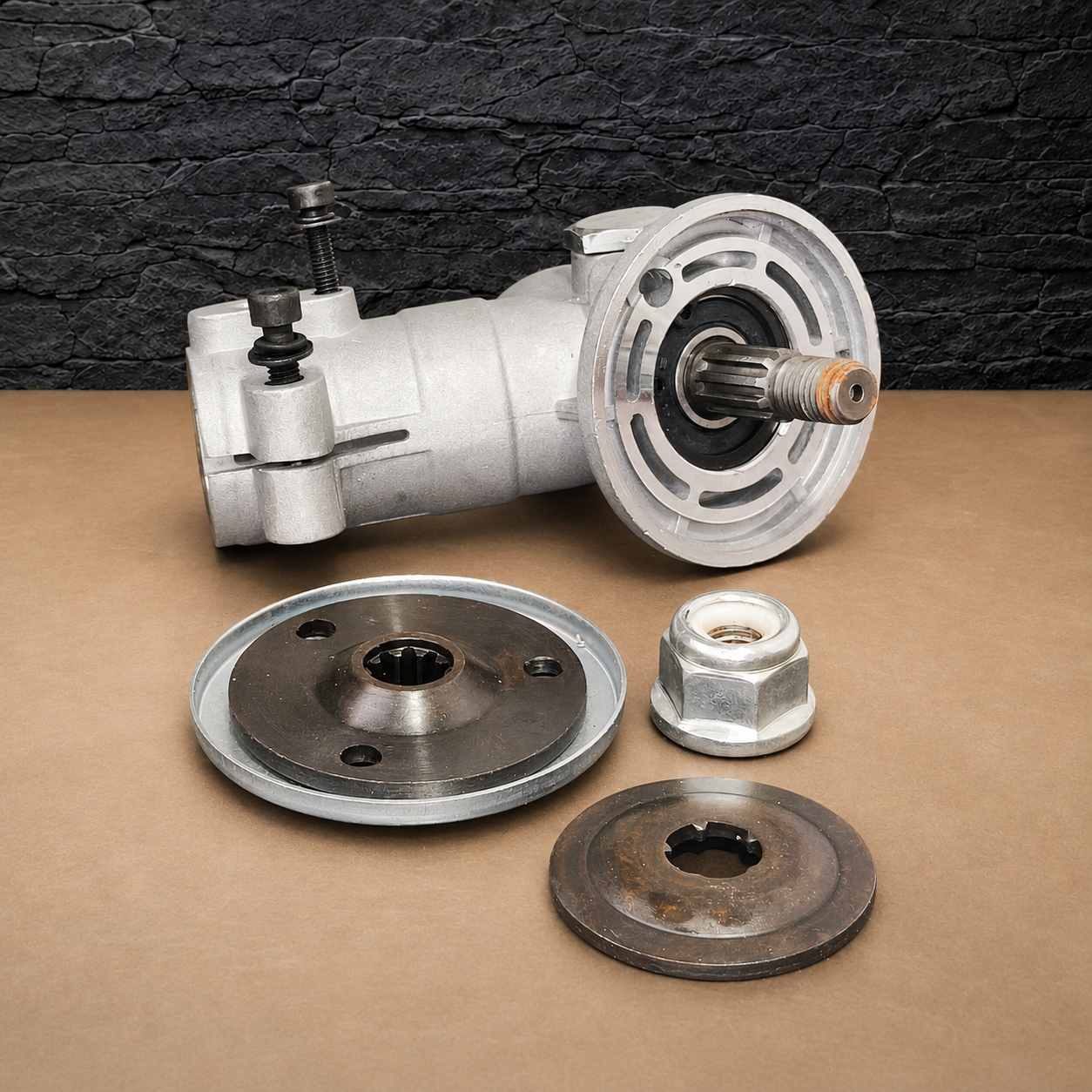

After fitting the cutting attachment, rotate it manually before starting the engine. The shaft should turn smoothly without binding. Afterwards, run the machine at low speed and check for abnormal vibration, excessive play or noise.
