Cylinder and Piston Assembly Kit 58mm NIKASIL for STIHL TS760, 075 and 076 – 1111 020 1206

Description

This STIHL TS760 cylinder kit contains a 58 mm cylinder, piston and the principal installation components required to renew the top end of a compatible STIHL cut-off saw or chainsaw engine. The NIKASIL-coated cylinder bore provides the working surface for the piston and rings.

STIHL TS760 cylinder kit compatibility

The assembly replaces:

• 1111 020 1206
• 1111-020-1206
• 11110201206

Verified applications of this 58 mm reference include:

• STIHL TS760 cut-off saw
• STIHL 075
• STIHL 075 AV
• STIHL 076
• STIHL 076 AV

The STIHL TS760 cylinder parts diagram lists 1111 020 1206 as a cylinder with a 58 mm piston. It also identifies the associated 58 × 1.5 mm piston rings and 13 × 8 × 44 mm piston pin.

Kit contents and specifications

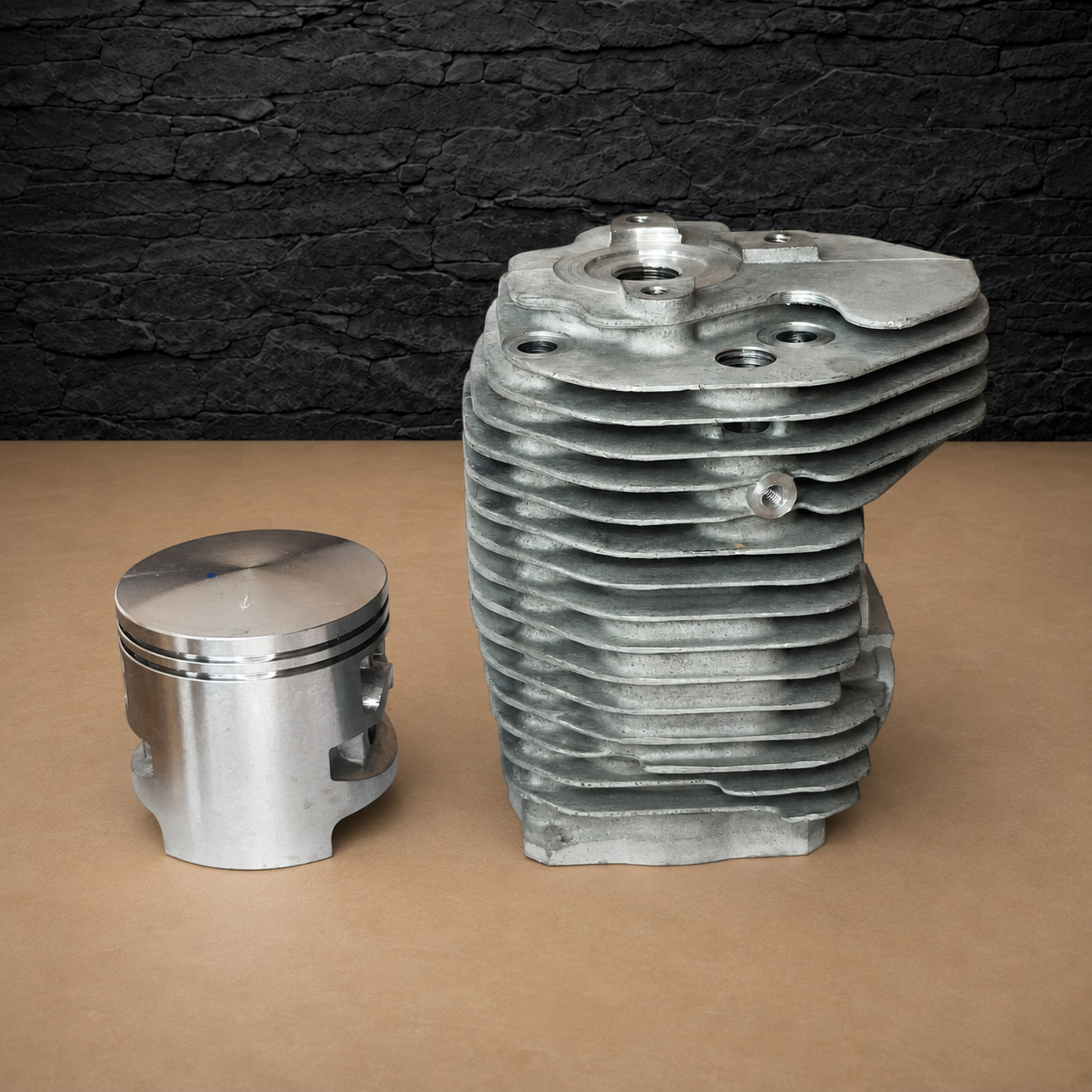

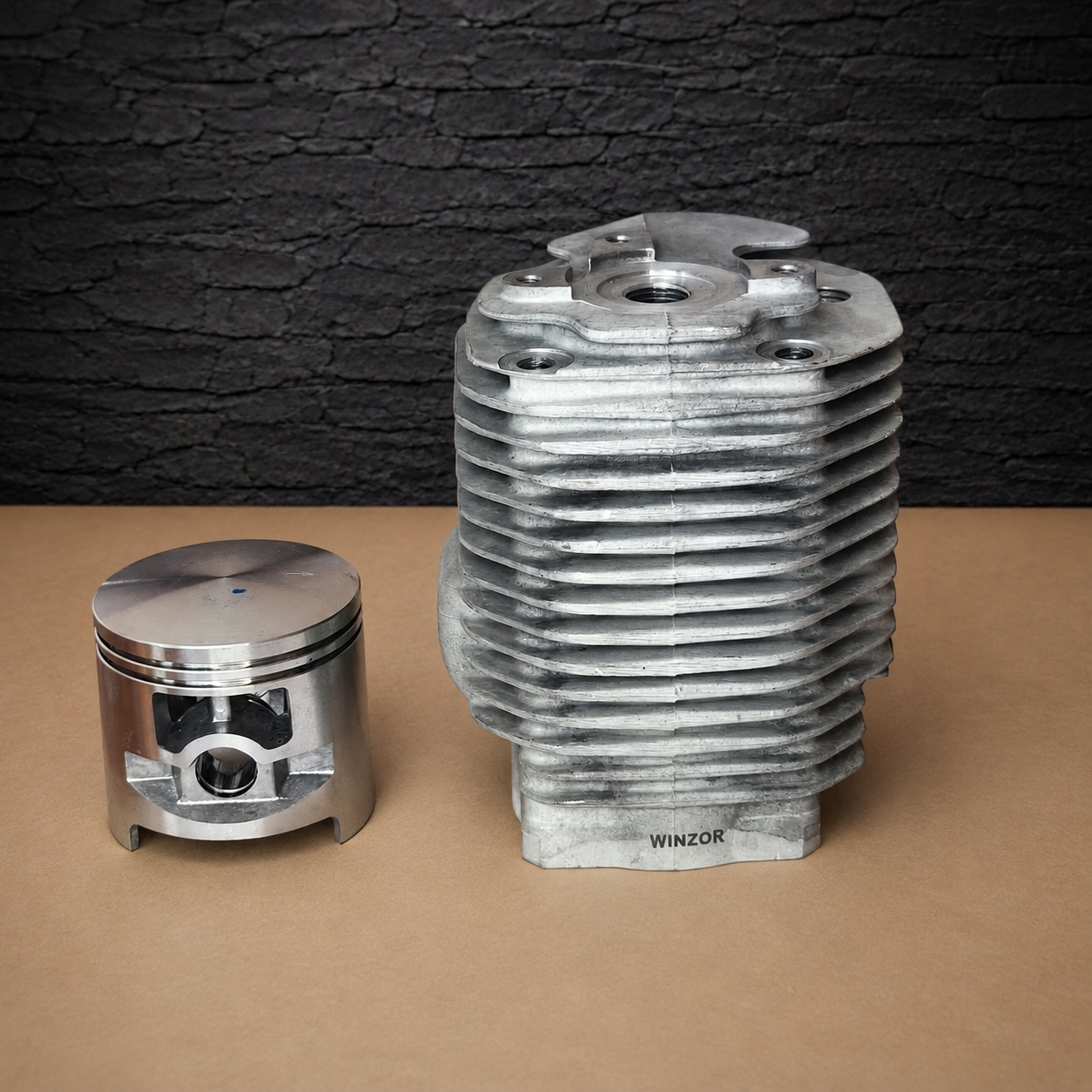

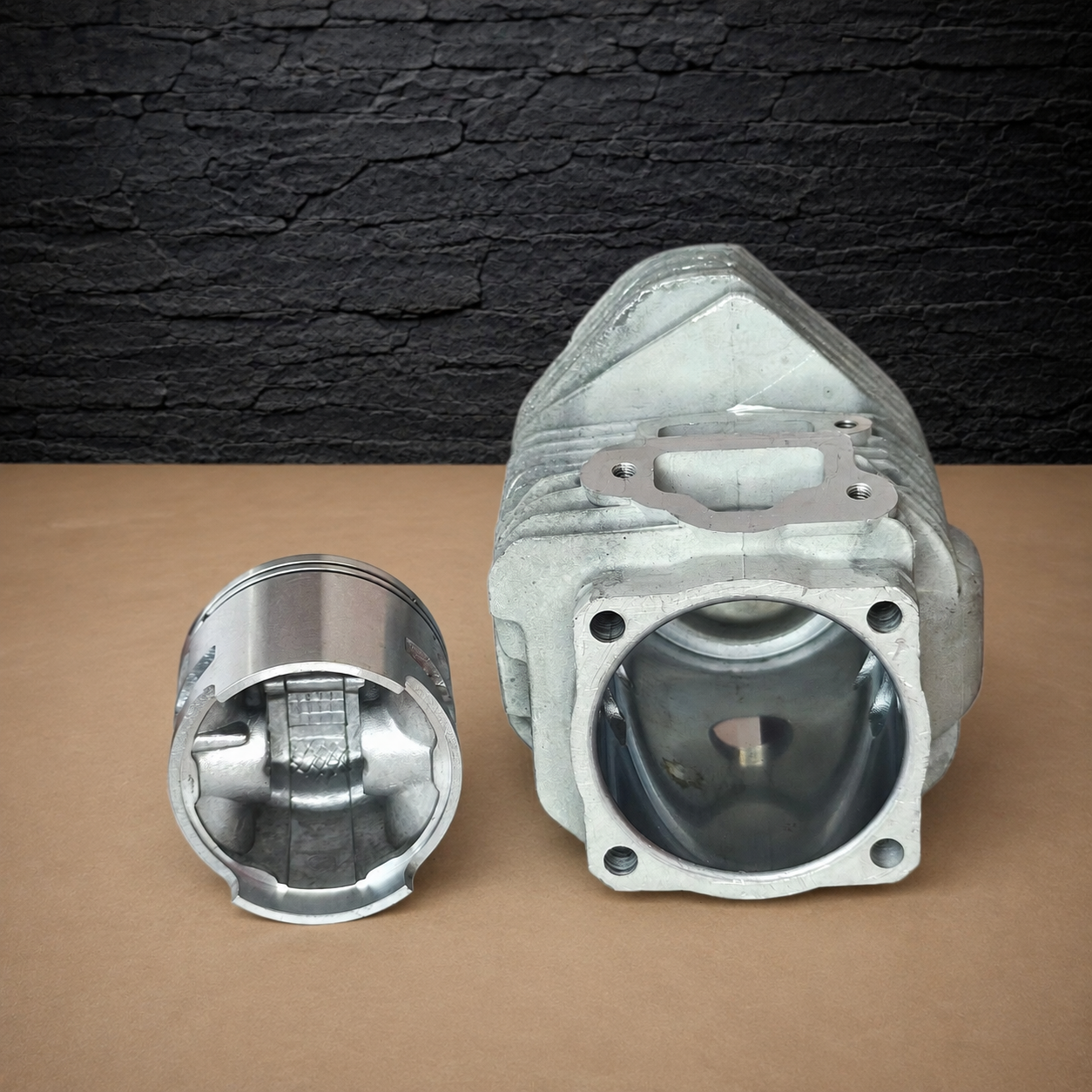

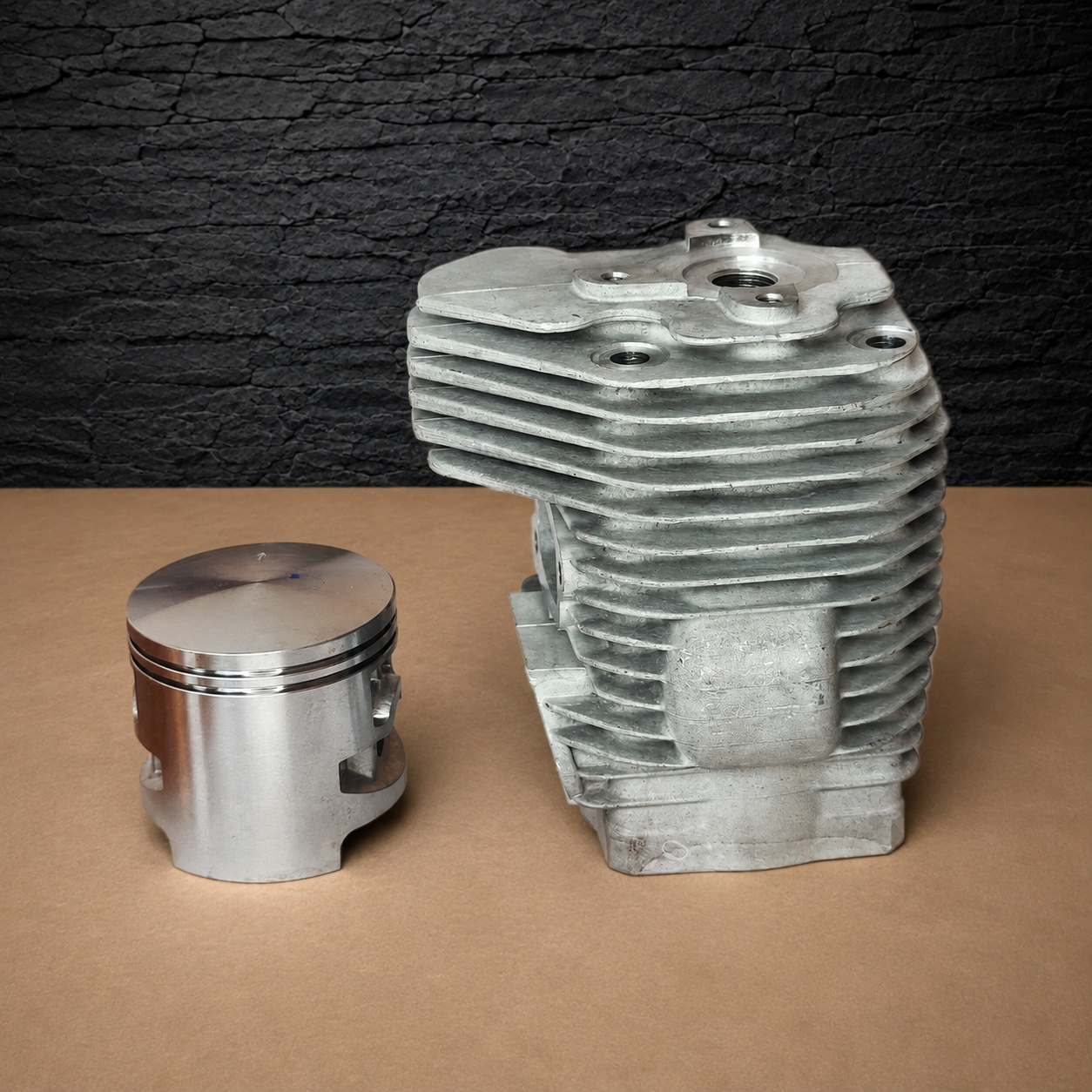

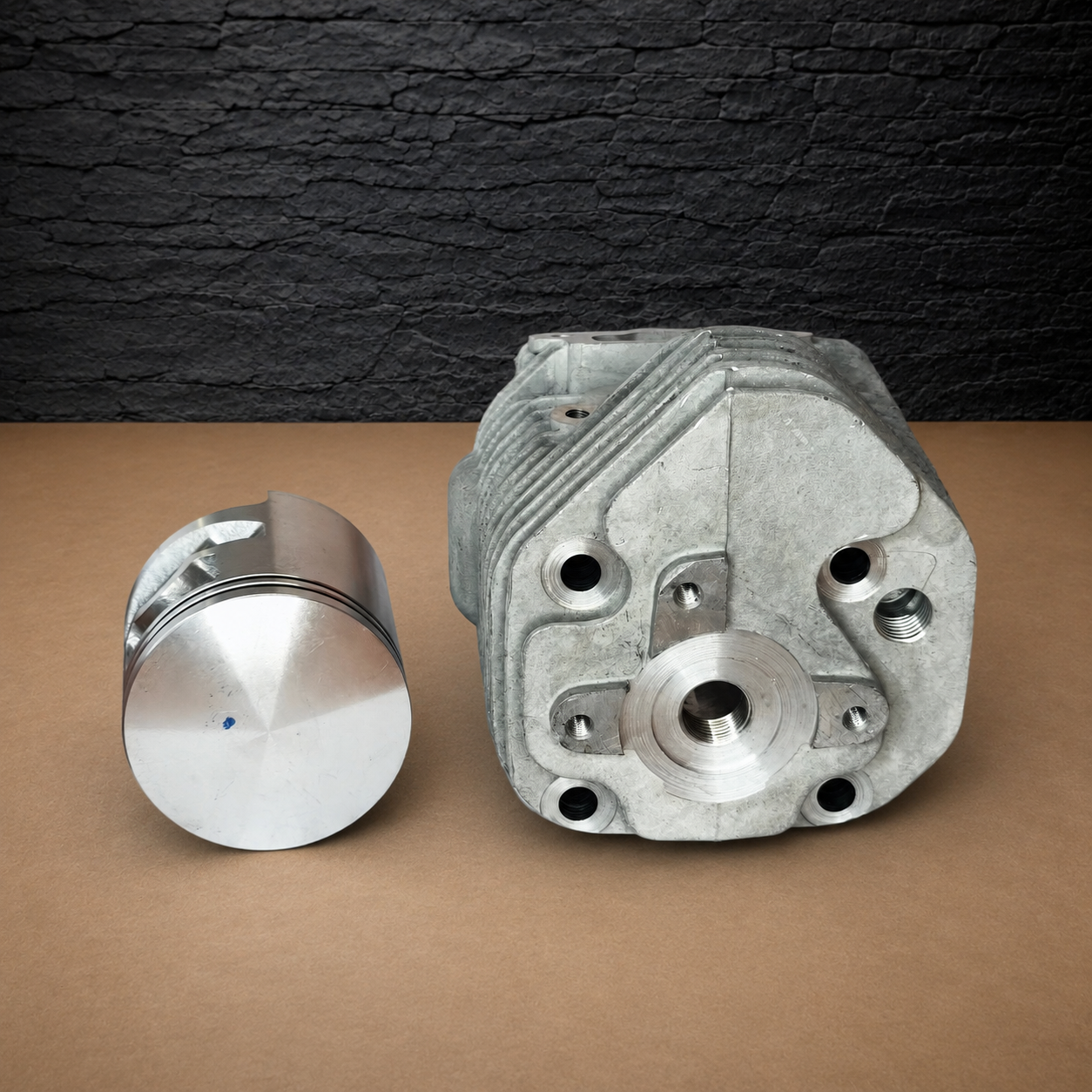

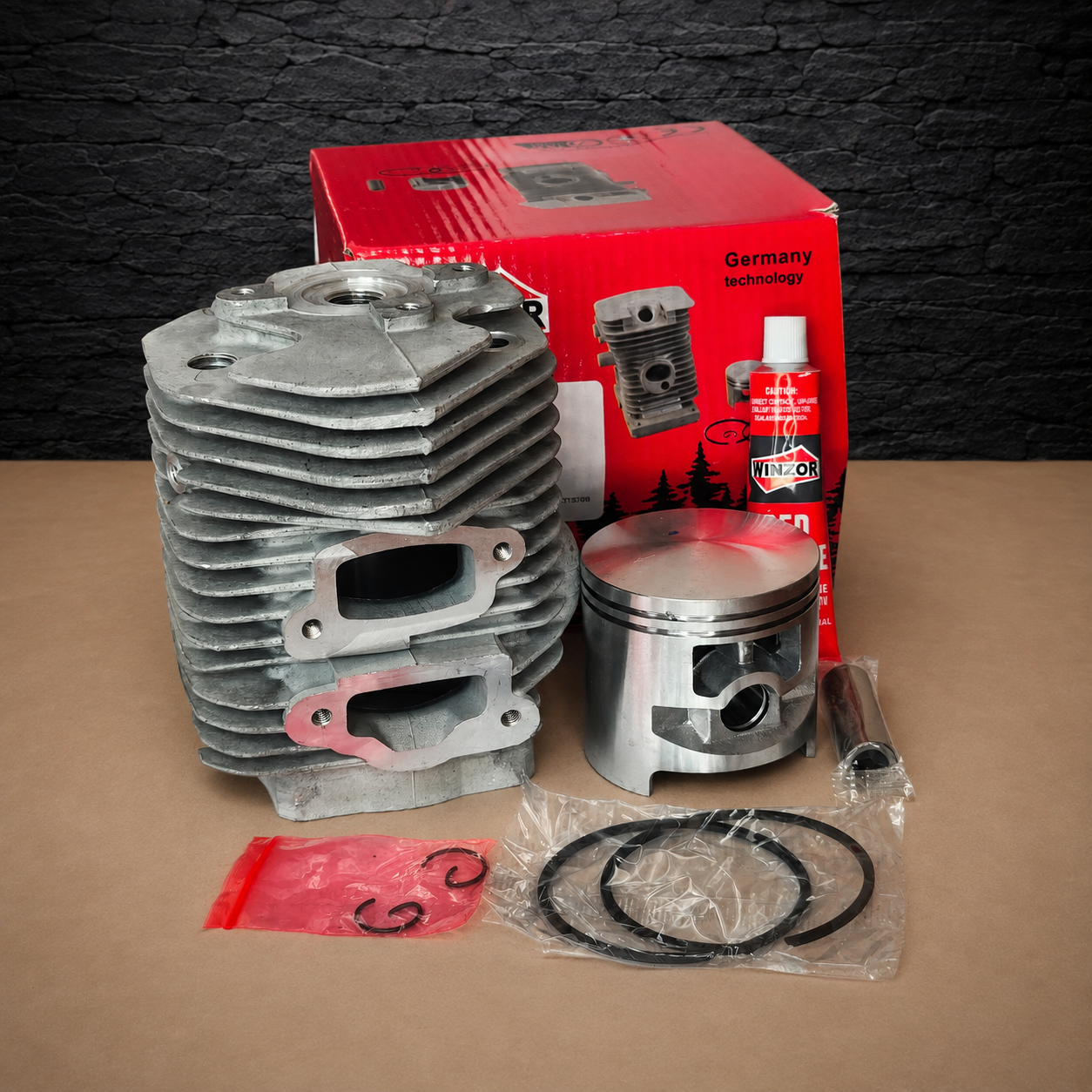

The product photographs show:

• 58 mm NIKASIL-coated cylinder
• Piston
• Piston rings
• Piston pin
• Piston-pin circlips
• Cylinder and exhaust gaskets
• Red silicone engine sealant

Product type: cylinder and piston assembly kit
Application: cut-off saw or chainsaw engine
Engine type: air-cooled two-stroke petrol
Brand: Winzor
Condition: new aftermarket replacement

A scored cylinder, damaged piston or worn rings can reduce compression and make the engine difficult to start. Additionally, the engine may lose power under load or show visible exhaust-side piston damage.

Nevertheless, determine the cause of the original failure before fitting the new parts. A lean carburettor setting, blocked air filter, leaking crankshaft seal, incorrect fuel mixture, restricted cooling fins or inadequate lubrication can damage the replacement cylinder.

Before assembly, inspect the crankshaft bearings, connecting rod and piston-pin bearing. Furthermore, clean all fragments and abrasive dust from the crankcase. This step is particularly important on a cut-off saw, because fine mineral dust can enter the engine if the filtration system leaks.

Lubricate the piston, rings and cylinder bore with suitable two-stroke oil. Then orient the piston correctly, align the rings with their locating pins and use new sealing components. Finally, follow the model-specific tightening sequence and carburettor settings before returning the machine to service.

Browse additional cut-off saw parts. A second compatibility reference is available from the 58 mm STIHL 075, 076 and TS760 cylinder listing.
