Carburetor for Echo CS-370 / CS-400 Chainsaws – WT-985 Type, OEM A021001921

Description

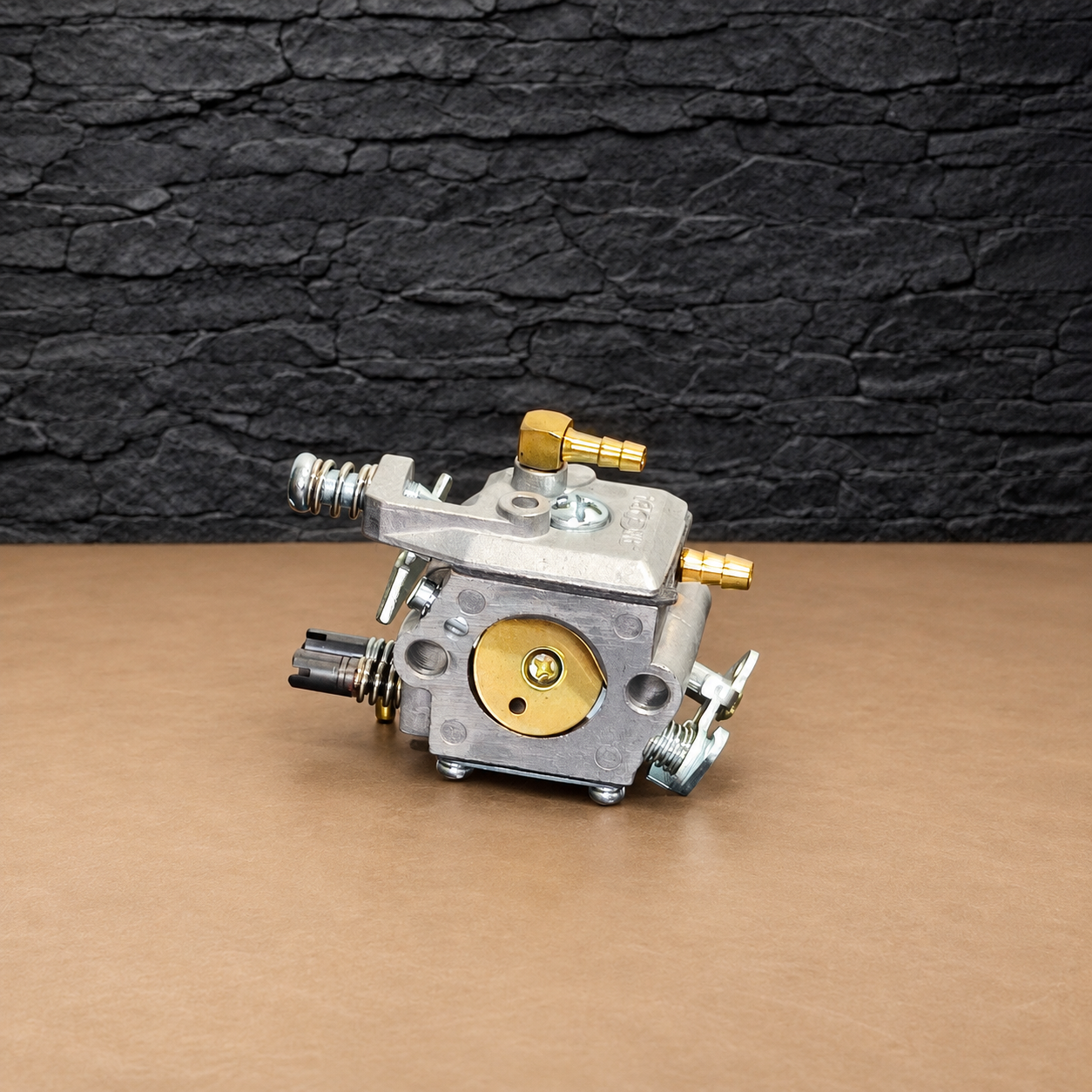

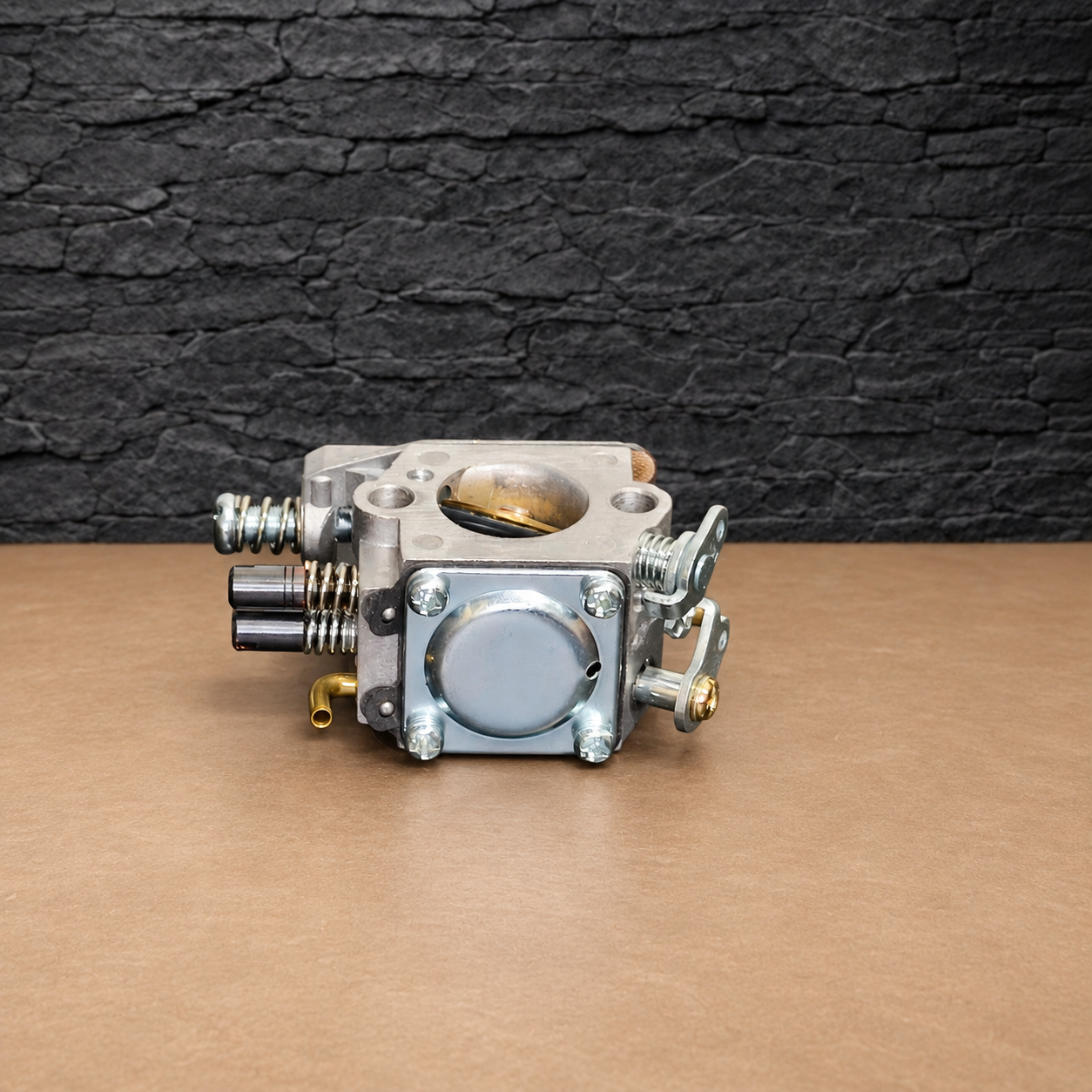

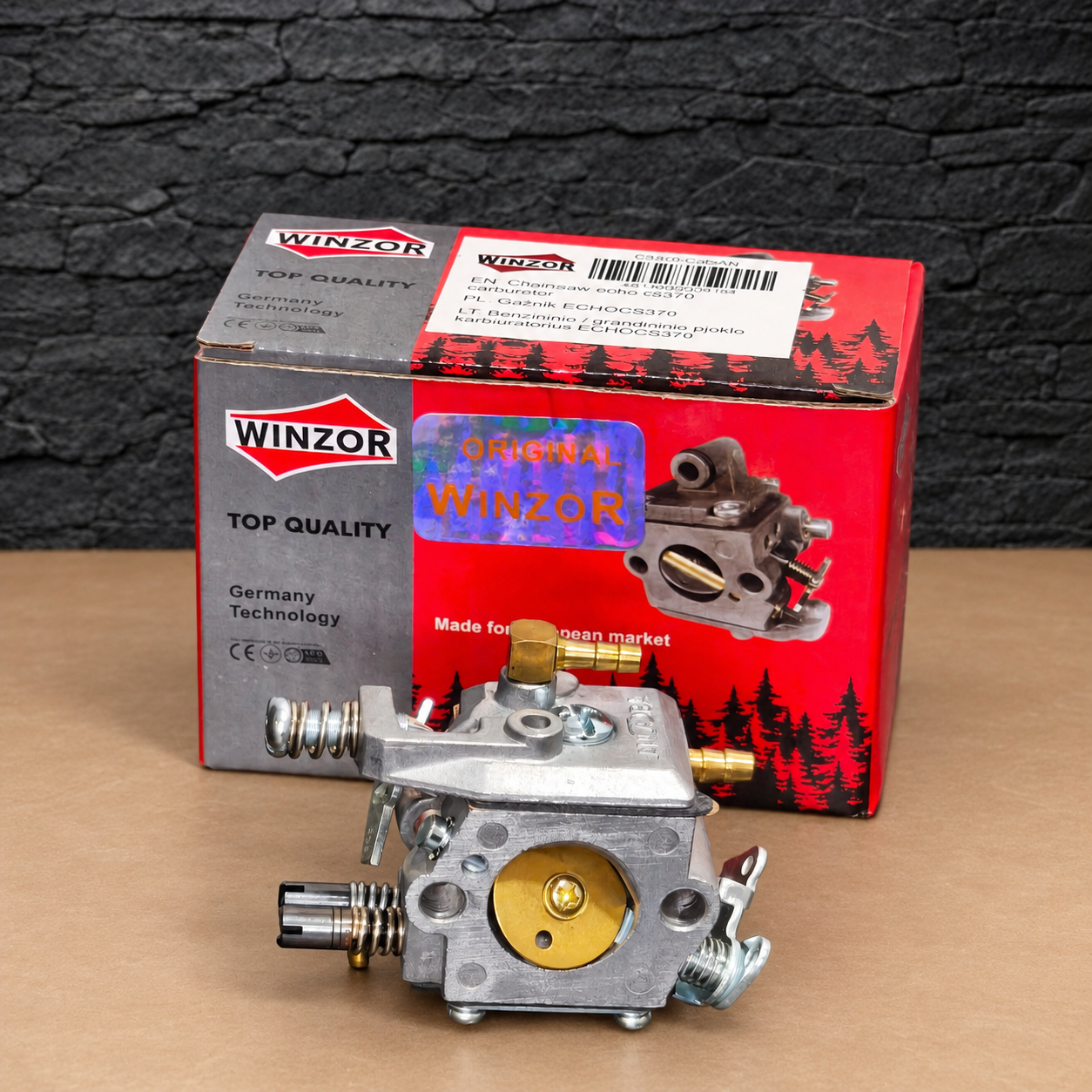

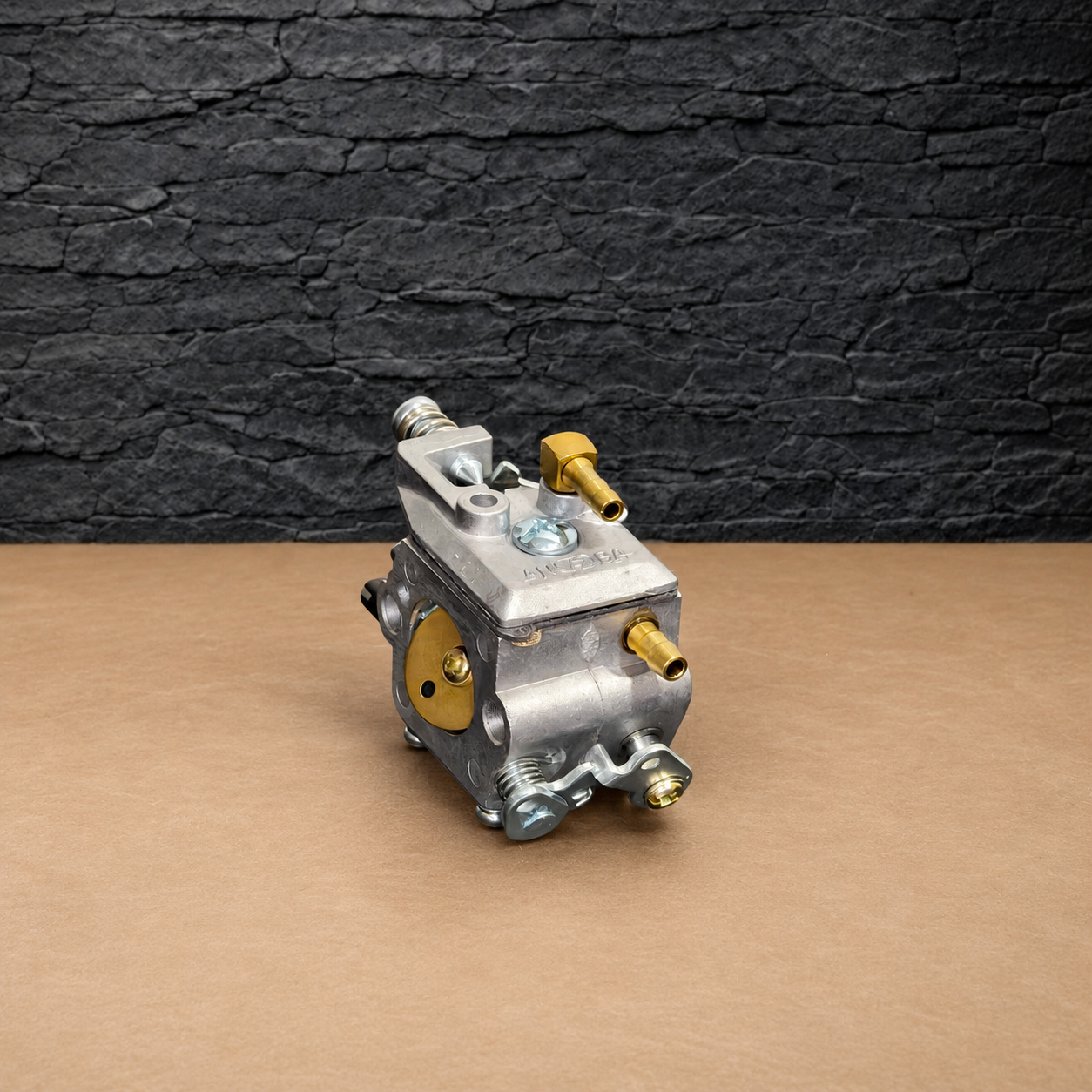

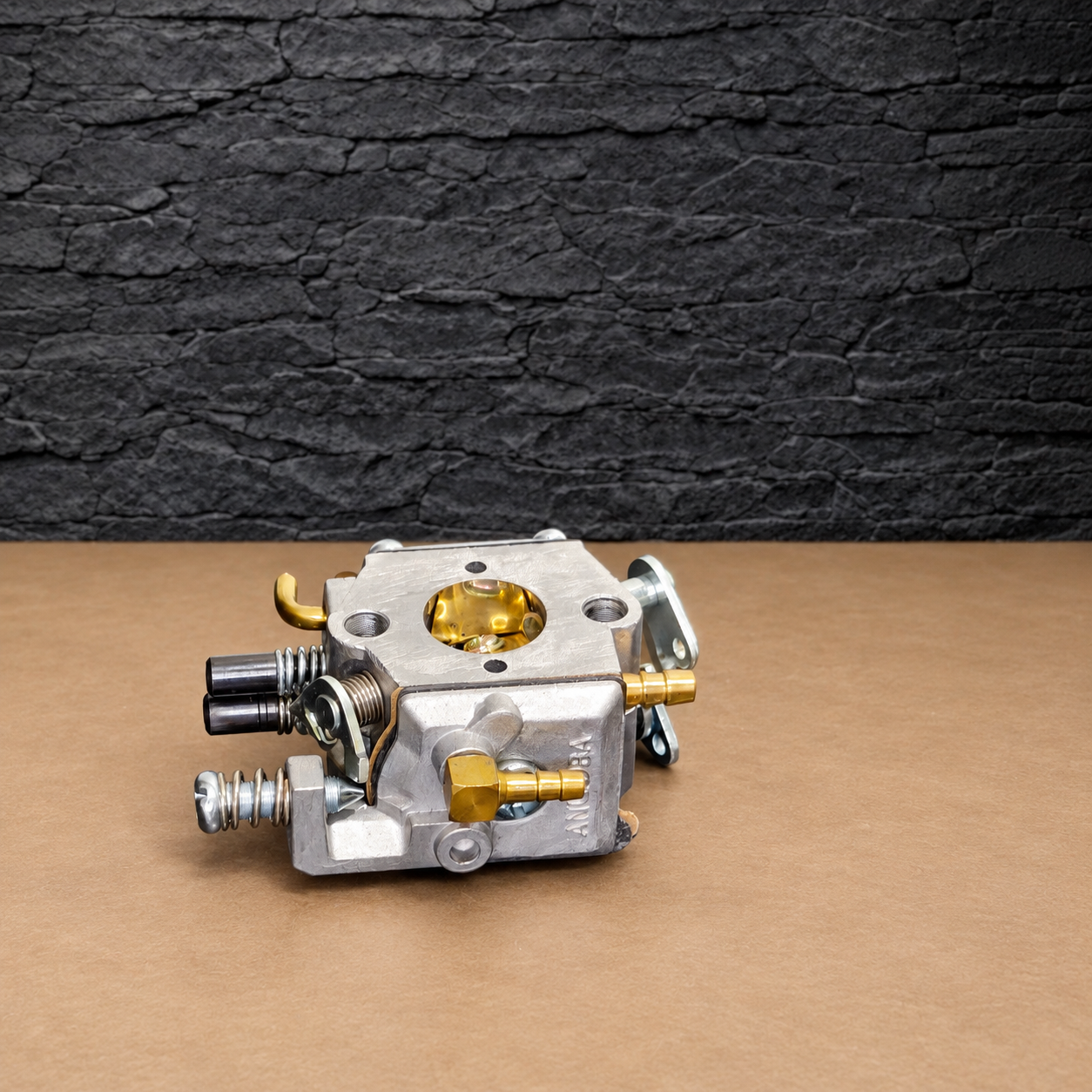

This Echo chainsaw carburetor is an aftermarket diaphragm-type replacement for compatible CS-370 and CS-400 chainsaws using the Walbro WT-985-style carburetor configuration.

It corresponds to Echo OEM reference A021001921, used on selected CS-400 chainsaws fitted with the WT-985 carburetor.

The carburetor controls the fuel and air mixture supplied to the engine, supporting reliable starting, stable idling and consistent throttle response.

Compatible Applications

• Echo CS-400 – configurations using Walbro WT-985
• Echo CS-400F – matching WT-985 carburetor configuration
• Echo CS-370 – selected configurations with the corresponding carburetor and linkage arrangement

OEM References

• Echo A021001921
• Echo A021001920
• Walbro WT-985

Important Compatibility Information

Echo used several carburetor configurations during production of the CS-370 and CS-400 chainsaws.

Some CS-370 models were fitted with:

• Walbro WT-794 – Echo A021001220
• Walbro WT-829 – Echo A021001330
• Walbro WT-981 – Echo A021001890

Earlier CS-400 models also used Walbro WT-820 under Echo reference A021001310.

These carburetors are not automatically interchangeable.

Before ordering, compare the original carburetor identification, machine serial-number range, choke lever, throttle linkage, mounting holes and fuel inlet arrangement.

Signs of Carburetor Problems

A worn or damaged carburetor can cause:

• Difficult engine starting
• Unstable idle
• Poor acceleration
• Hesitation during throttle changes
• Engine stalling under load
• Fuel leakage
• Inconsistent engine performance

Installation Recommendations

Clean the surrounding intake area before removing the original carburetor.

Inspect the fuel filter, fuel line, intake boot and impulse connection for damage or deterioration.

Install the replacement using serviceable intake gaskets, reconnect the fuel lines and throttle linkage, and verify smooth throttle and choke movement.

After installation, check for fuel leaks and adjust the carburetor according to the engine’s service procedure.

This is an aftermarket replacement carburetor, not a genuine Echo or Walbro OEM product.
