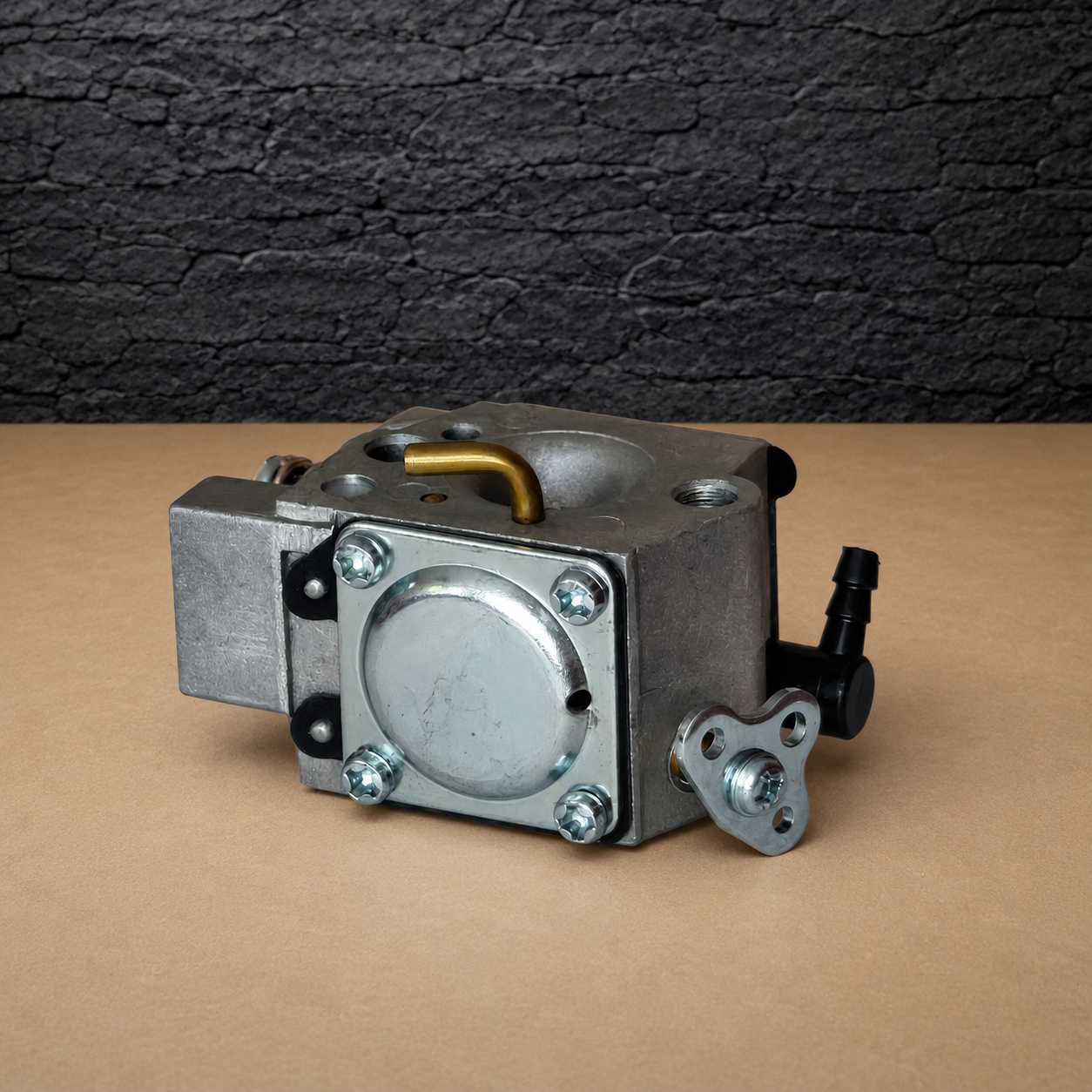

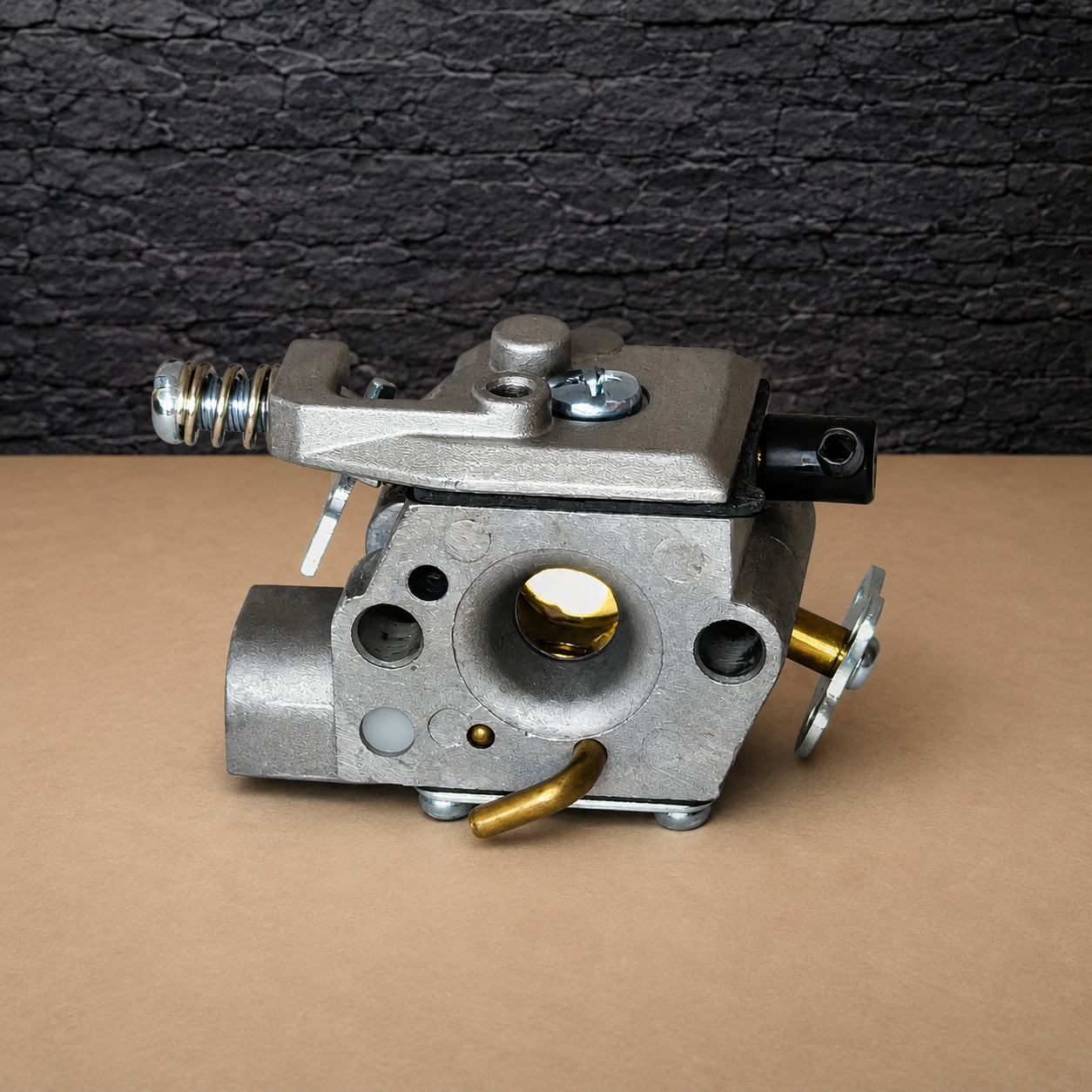

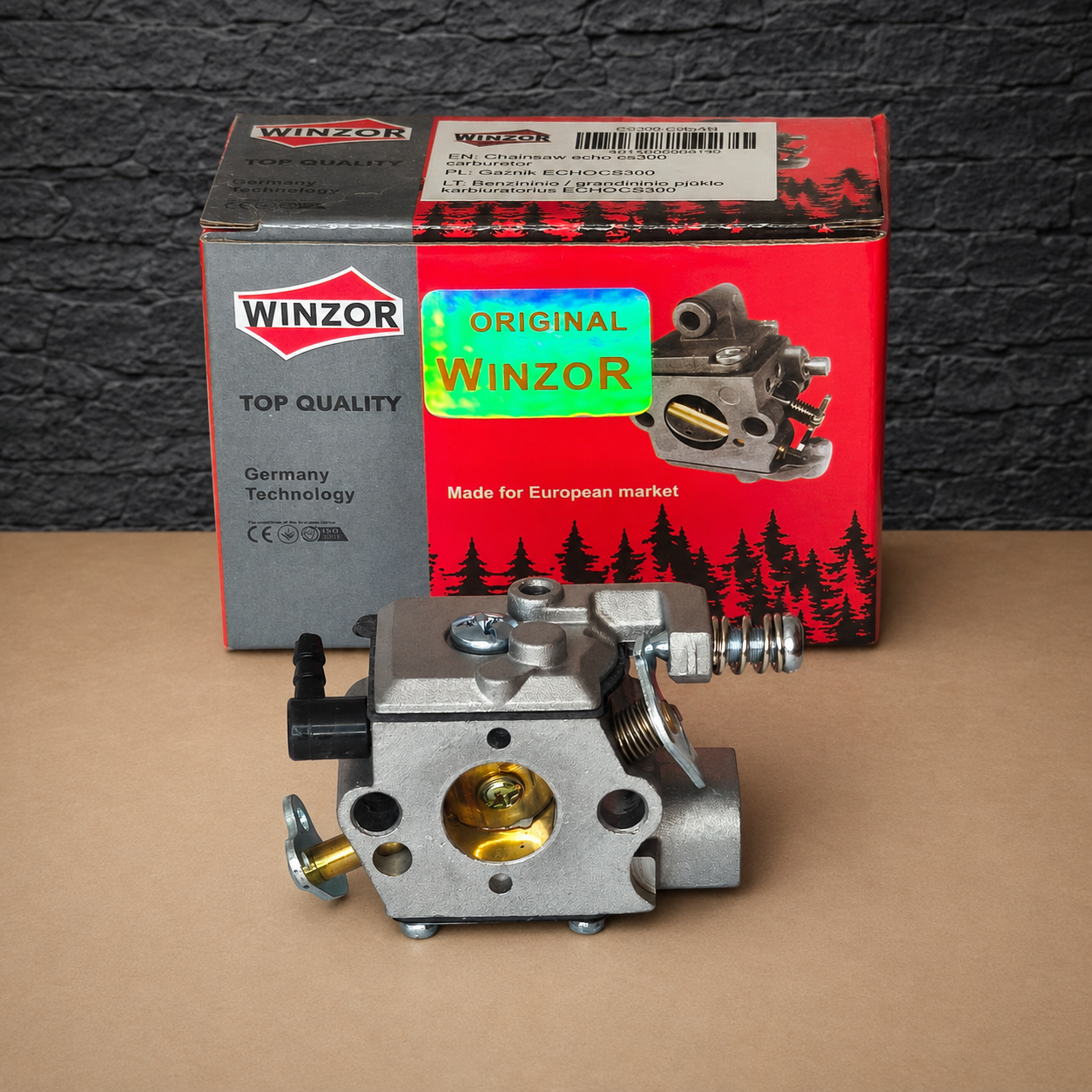

Carburetor for Echo CS-300 / CS-301 / CS-305 / CS-306 – WT-589 / WT-589A

Description

This Echo CS-300 carburetor is an aftermarket replacement for the WT-589 and WT-589A carburetor family used in selected 30.1 cc Echo chainsaws.

The principal replacement references are A021000231 and A021000761. The carburetor also replaces earlier WT-589 references used in the confirmed serial-number ranges below.

Confirmed Echo Fitment

Echo CS-300

• Serial 03001001-03088645
  Original carburetor: A021000230 / WT-589
• Serial 04001001-04003216
  Original carburetor: A021000230 / WT-589
• Serial 03088646-03999999
  Original carburetor: A021000760 / WT-589
• Serial 04003217-04999999
  Original carburetor: A021000760 / WT-589

Echo CS-301

• Serial 02001001-02043603
  Original carburetor: A021000230 / WT-589
• Serial 02043604-04999999
  Original carburetor: A021000760 / WT-589

Echo CS-305

• Serial 03001001-03999999
  Original carburetor: A021000761 / WT-589A

Echo CS-306

• Serial 02001001-02999999
  Original carburetor: A021000761 / WT-589A

Carburetor References

Replaces or cross-references:

• Echo A021000230
• Echo A021000231
• Echo A021000760
• Echo A021000761
• Walbro WT-589
• Walbro WT-589A
• Walbro WT-589-1

Echo A021000230 was superseded by A021000231. A021000761 was also superseded to A021000231. Echo later replaced A021000231 with A021000232 in its parts system.

Before Ordering

For a serial range not listed above, order only when the machine’s parts catalogue or removed carburetor identifies one of the listed references.

Compare:

• Mounting-hole arrangement
• Throttle and choke linkage
• Fuel-inlet position
• Purge connections
• Adjustment-screw layout
• WT-589 or WT-589A designation

After installation, check that the throttle opens fully and returns freely to idle. Confirm that all fuel connections are secure before starting the chainsaw.
