Description
This BC360 piston kit is a new Winzor replacement for compatible 33cc two-stroke brushcutters and strimmers. It features a 36mm piston and 9mm piston pin, providing the internal components required to replace a worn or damaged piston assembly.
A damaged piston or worn piston rings can reduce compression, make the engine difficult to start and cause poor performance under load. Replacing the piston assembly restores the seal between the piston and cylinder when the existing 36mm cylinder remains suitable for reuse.
BC360 Piston Kit Compatibility
Designed for compatible brushcutters and strimmers using the common 33cc, 36mm engine platform:
- BC360
- CG360
- TL33
- 1E36F
- Generic 330 and 33cc brushcutters
- Stiga SB 33 D
- Stiga SB 34 D
- Other brushcutters using a matching 36mm piston and 9mm pin
This part is not universal across every 33cc engine. Therefore, confirm the piston diameter, pin diameter, piston height, ring arrangement and port-facing orientation before ordering.
Kit Contents

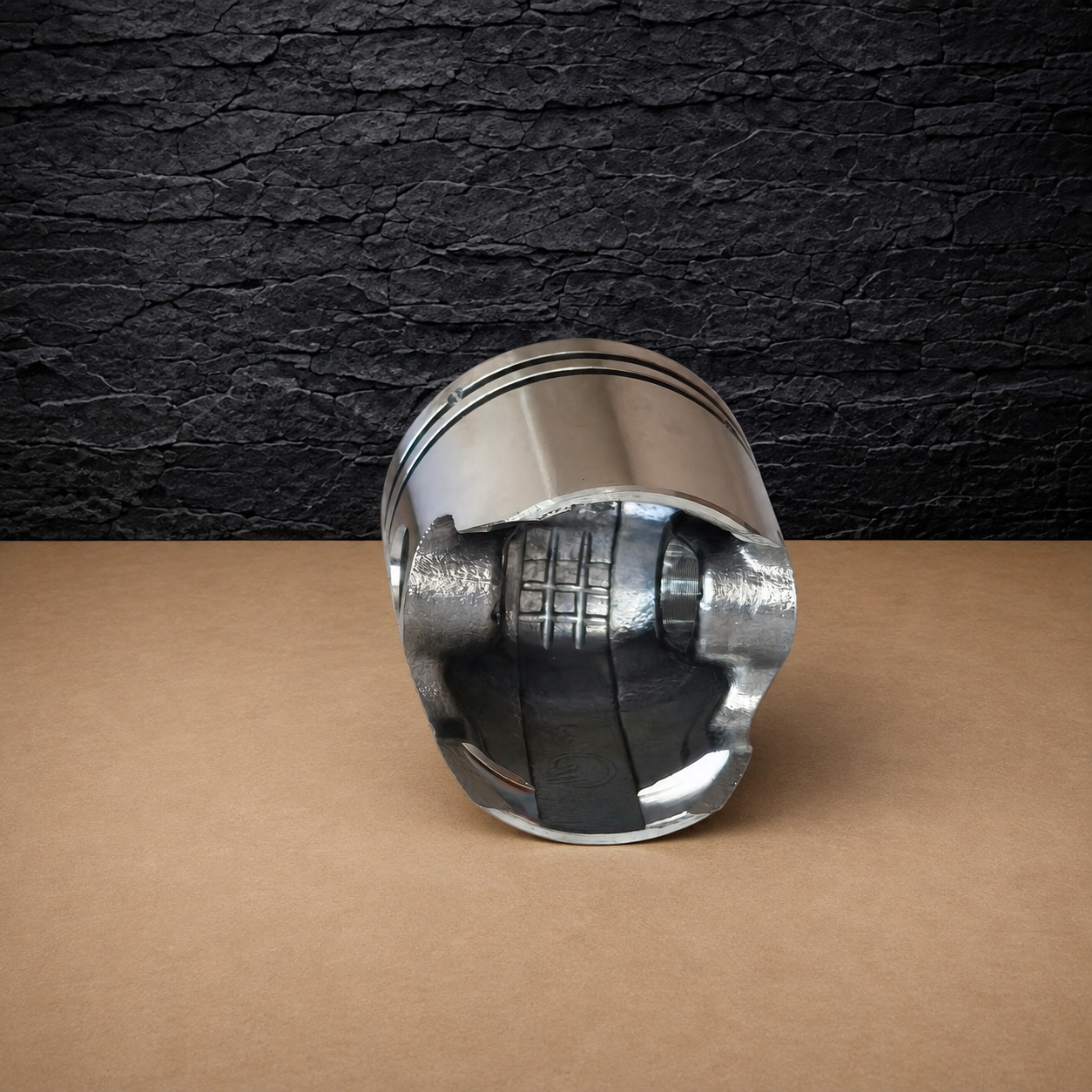

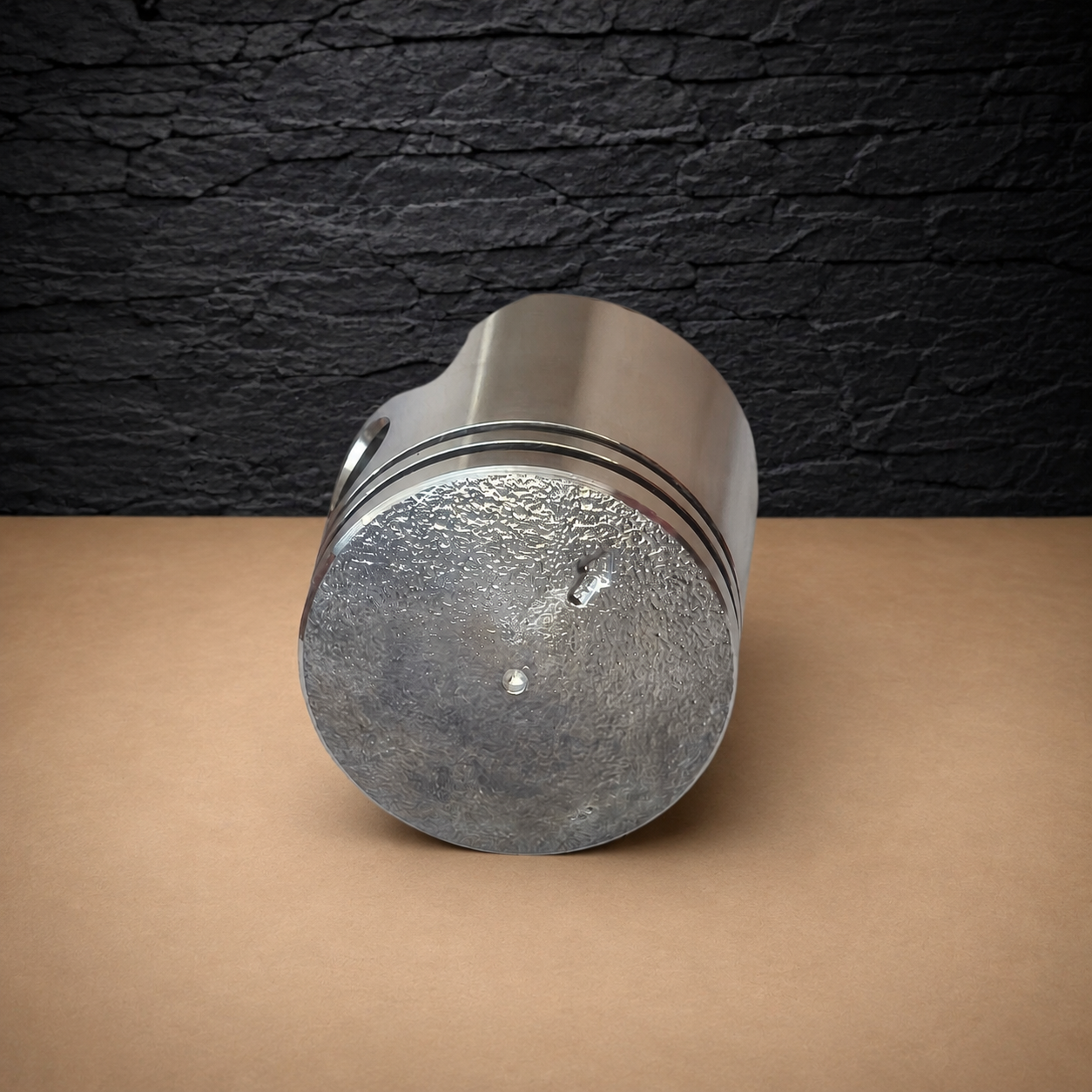

- 36mm piston
- Piston-ring set
- 9mm piston pin
- Two piston-pin circlips
The cylinder, cylinder gasket, small-end bearing and mounting hardware are not included.
Product Details
- Product type: piston assembly kit
- Brand: Winzor
- Product reference: SCSET-07A
- Piston diameter: 36mm
- Piston-pin diameter: 9mm
- Engine capacity: 33cc
- Engine type: two-stroke petrol
- Application: brushcutter, strimmer and clearing saw
- Condition: new aftermarket replacement
The piston converts combustion pressure into crankshaft movement. Meanwhile, the piston rings seal the combustion chamber and transfer heat from the piston to the cylinder wall. Correct installation is essential because the piston orientation and ring positions affect compression and cylinder-port clearance.
Check Before Installation
Compare the new part with the original piston before dismantling the engine completely. Check:
- 36mm outside diameter
- 9mm piston-pin diameter
- Piston height and crown shape
- Number and position of ring grooves
- Circlip-groove design
- Intake and exhaust orientation
Lubricate the piston, rings, pin and cylinder wall with two-stroke oil during assembly. Additionally, ensure that both circlips seat fully in their grooves before fitting the cylinder.
Browse more brushcutter and strimmer parts from MTP eShop. Owners of Stiga machines can confirm their exact model through Stiga product support.
This product is a new Winzor aftermarket replacement. Brand names and model references identify compatibility only.
