45mm Piston Kit for Chinese 5200 52cc Chainsaw

Description

The 5200 chainsaw piston kit is a Winzor aftermarket replacement for compatible Chinese 5200 petrol chainsaws fitted with a 45mm cylinder. It provides the main components required to replace a worn, damaged or seized piston assembly.

A worn piston or damaged rings can cause low compression, difficult starting, reduced power and excessive exhaust smoke. Installing the correct replacement components helps restore compression and reliable engine operation.

5200 chainsaw piston specifications

• Compatible model: Chinese 5200 chainsaw
• Engine class: 52cc two-stroke petrol engine
• Piston diameter: 45mm
• Piston height: approximately 36mm
• Piston pin: 11 × 35.5mm
• Piston rings: two rings, 1.2mm thick
• Brand: Winzor
• Condition: new aftermarket replacement part

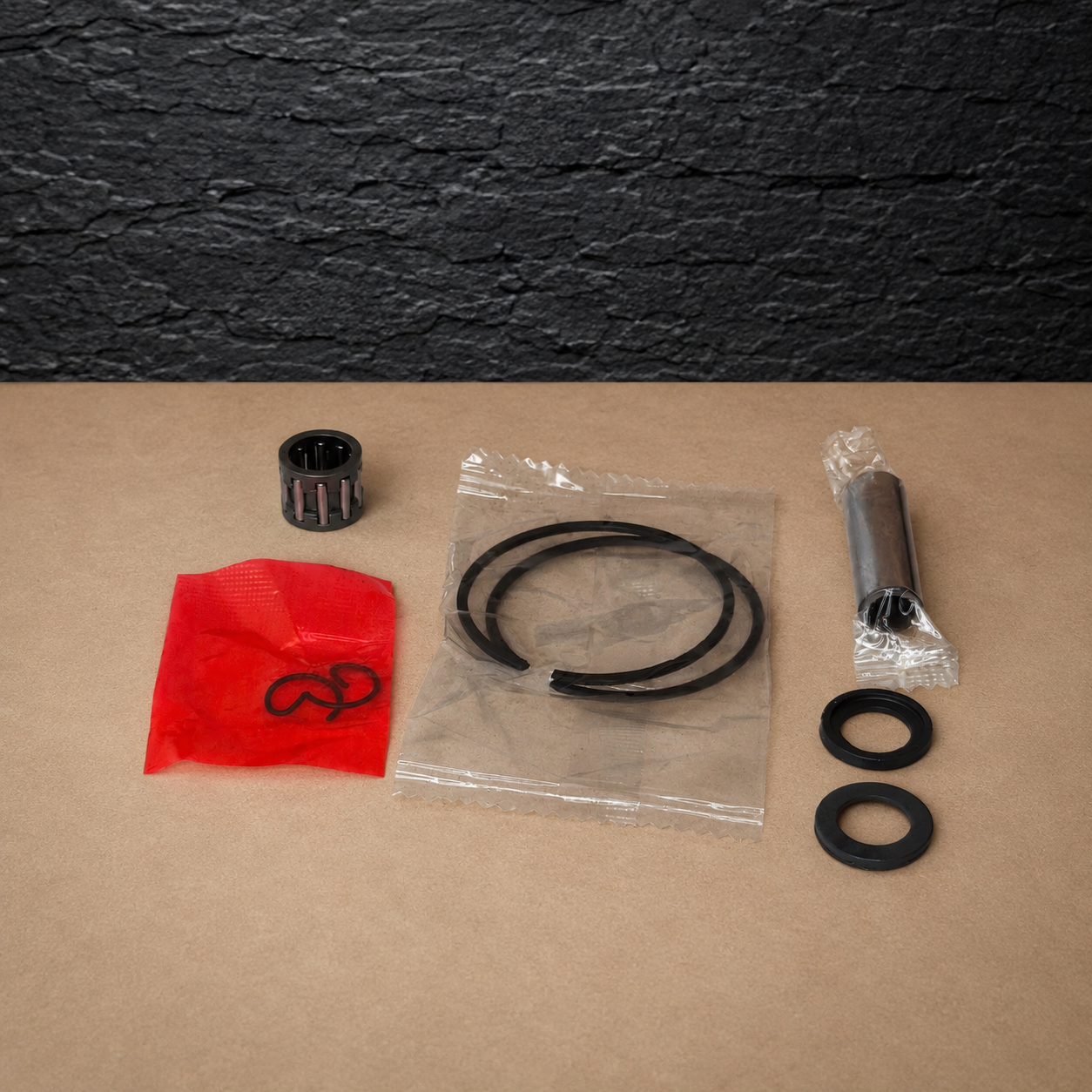

Kit contents

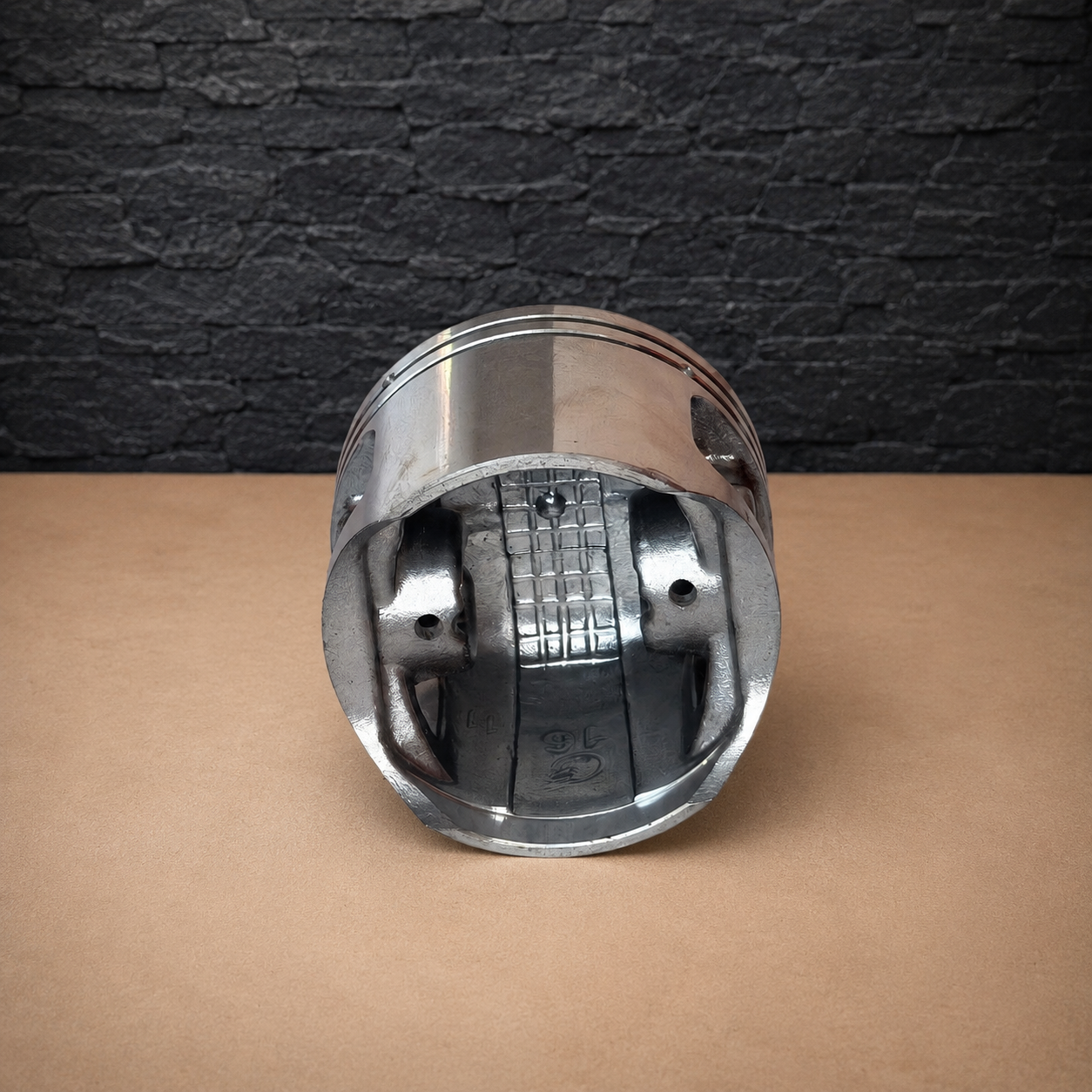

• 1 × 45mm piston
• 2 × piston rings
• 1 × 11mm piston pin
• 2 × piston pin circlips

Generic Chinese chainsaw model numbers are not standardised. Therefore, a machine marked 5200 does not automatically guarantee compatibility. This kit only fits engines that use a 45mm piston and 11mm piston pin.

Before ordering, remove and measure the original piston across the widest part of its skirt. In addition, check the piston-pin diameter, piston height, ring thickness and overall design. Comparing the old components with the product photographs provides an additional fitment check.

Installation guidance

Inspect the cylinder wall before fitting the new piston. Deep scoring, peeling cylinder plating or excessive wear requires cylinder replacement. You can find complete replacement assemblies and other chainsaw replacement parts in our parts catalogue.

Clean the crankcase and cylinder thoroughly before assembly. Next, apply clean two-stroke oil to the piston, rings, pin and cylinder wall. Align each piston-ring gap with its locating pin and make sure both circlips sit fully inside their grooves. Finally, check that the piston moves freely before completing the engine assembly.

Air leaks, an incorrect fuel mixture or a poorly adjusted carburettor can quickly damage a new piston. For this reason, inspect the crankshaft seals, intake components, fuel system and carburettor settings before returning the chainsaw to service.

This product is a Winzor aftermarket replacement part. It is not a genuine component supplied by the chainsaw manufacturer.
