40mm Cylinder and Piston Assembly Kit for H169, 40-5, BC415B and C520 43cc Brushcutters – Metal Box

Description

This H169 cylinder kit provides a complete Winzor PRO top-end repair package for compatible 43cc brushcutters and strimmers with a 40mm cylinder. Furthermore, the metal box protects the parts during storage and transport.

H169 cylinder kit compatibility

The package fits compatible engines and machines marked:

• H169
• 40-5
• BC415B
• C520
• Generic 43cc two-stroke brushcutters with a 40mm bore

Model names on generic garden machinery do not always identify the exact engine version. Therefore, compare the 40mm bore, cylinder base, mounting holes, intake port and exhaust connection with the original cylinder.

Complete PRO repair package

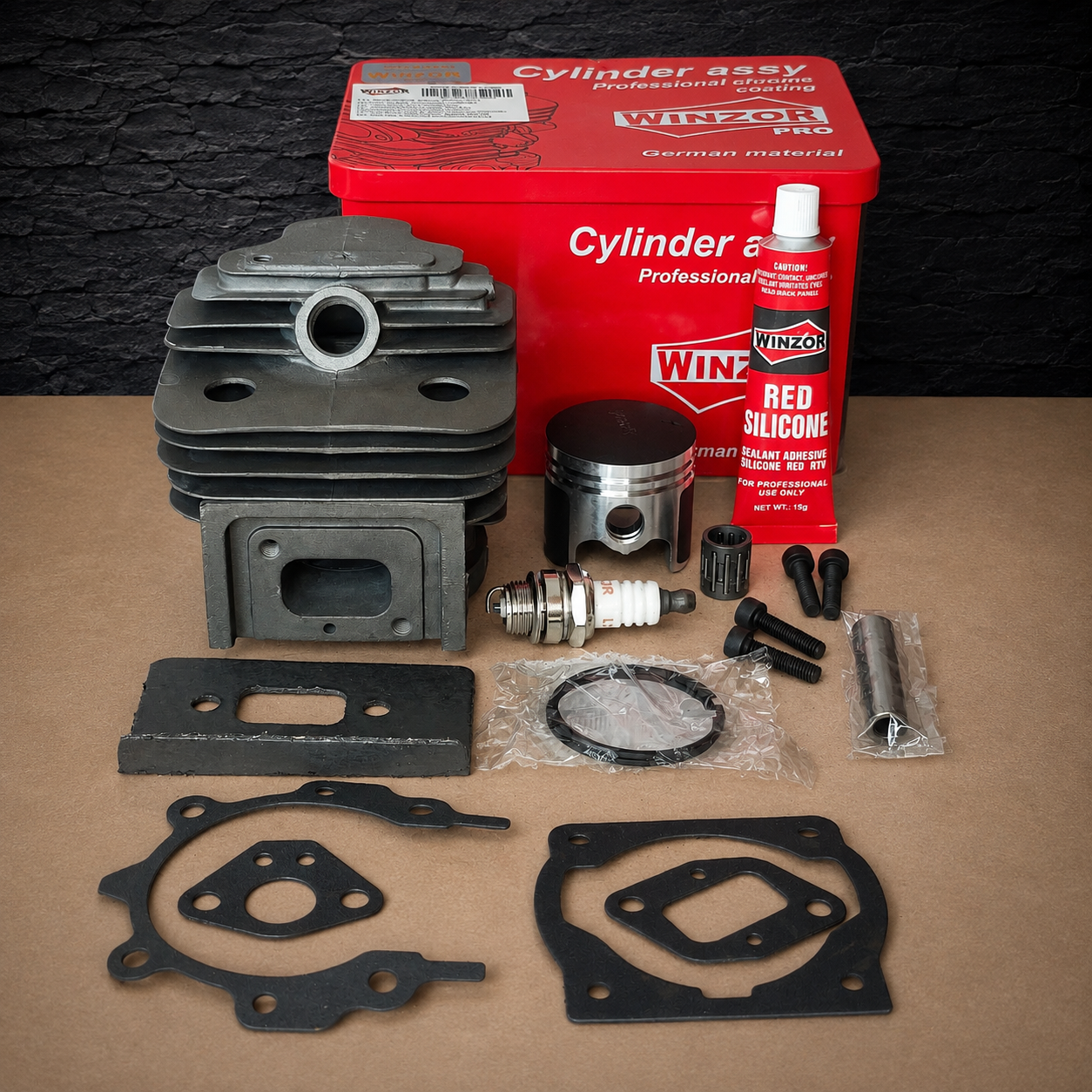

The kit contains:

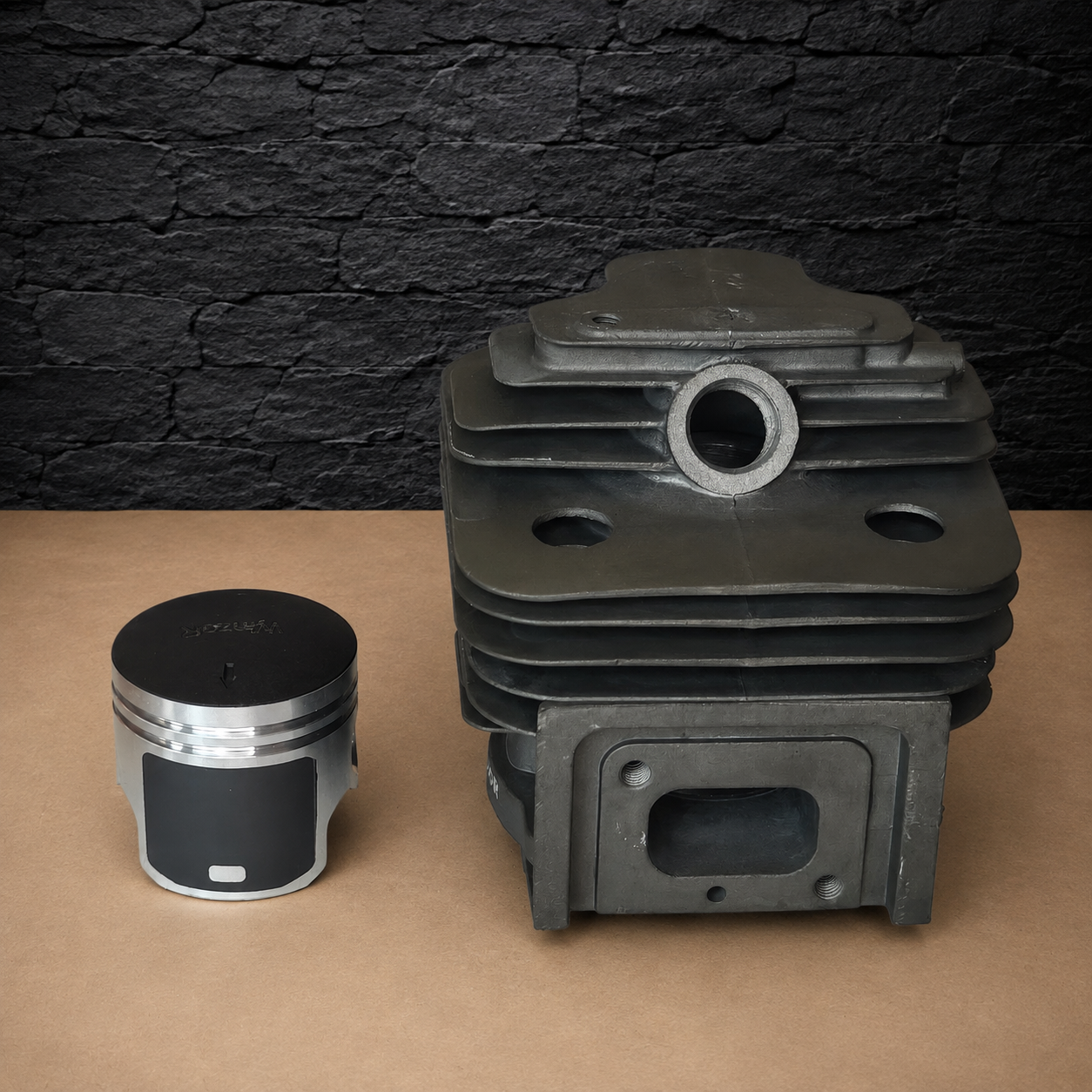

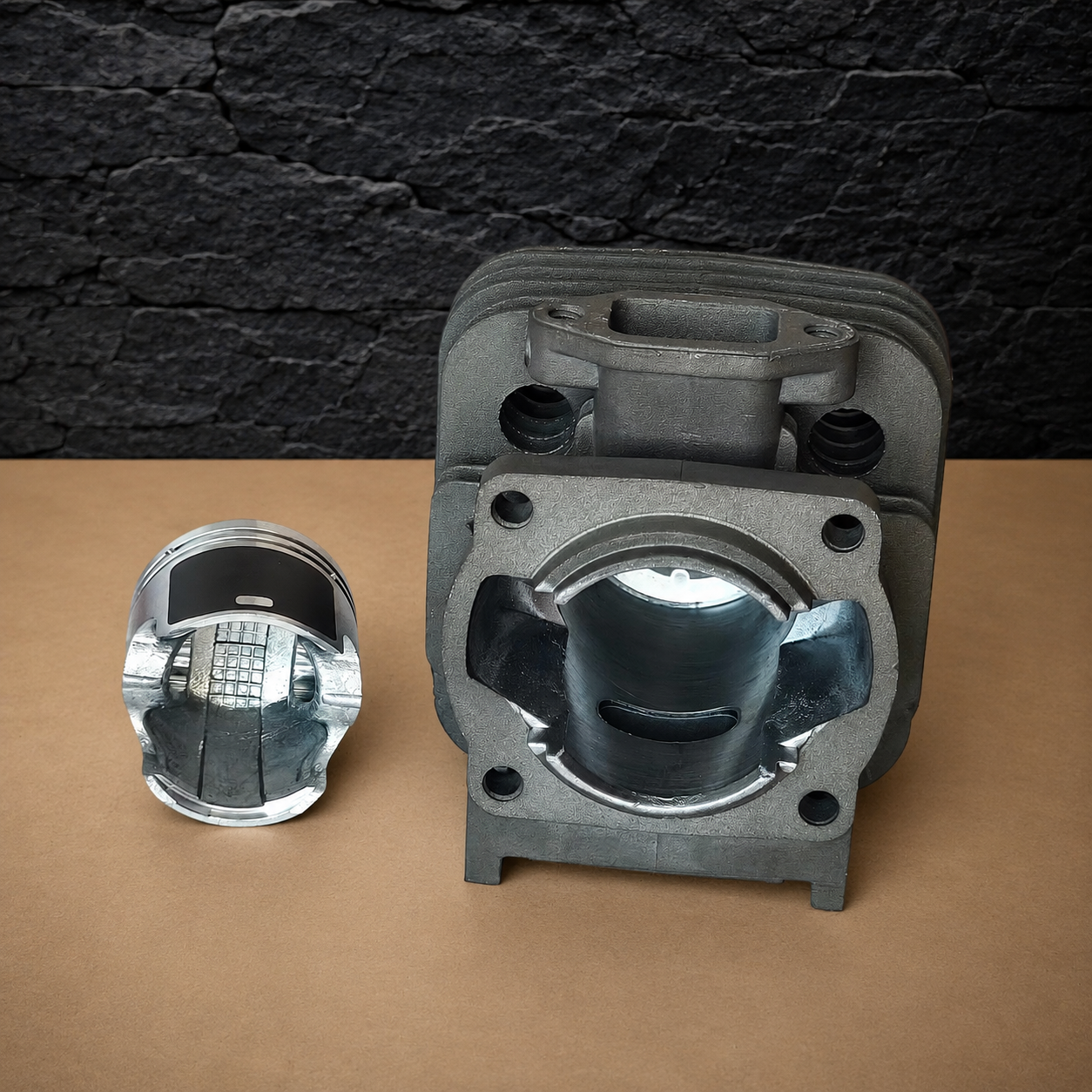

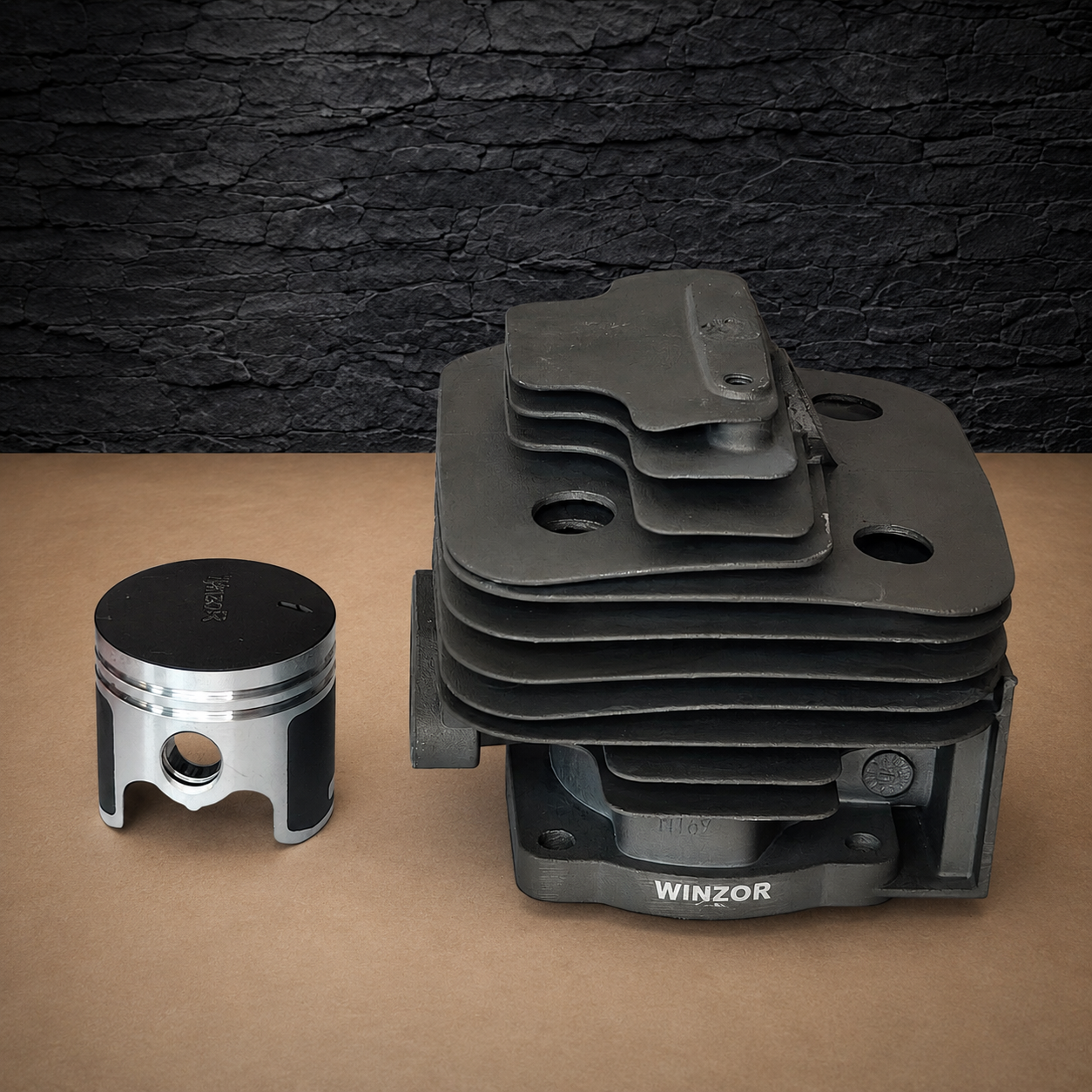

• 40mm cylinder
• Graphite-coated piston
• Piston rings
• Piston pin and retaining clips
• Piston needle bearing
• Cylinder and exhaust gaskets
• Heat-resistant metal gaskets
• Cylinder mounting bolts
• Spark plug
• Engine sealant
• Metal storage box

The graphite coating helps reduce friction between the piston skirt and cylinder wall during initial running. Additionally, the supplied gaskets and sealant support a clean rebuild without reusing old compressed seals.

Before installing the H169 cylinder kit, inspect the crankshaft bearings, connecting rod, intake connection, carburettor and air filter. Also clean the cooling fins and check the fuel mixture. An intake leak or lean carburettor setting can quickly damage the new cylinder group.

During assembly, apply clean two-stroke oil to the piston, rings, bearing and cylinder wall. Afterwards, turn the crankshaft by hand to confirm free movement. Finally, check compression and carburettor adjustment before using the machine under full load.
