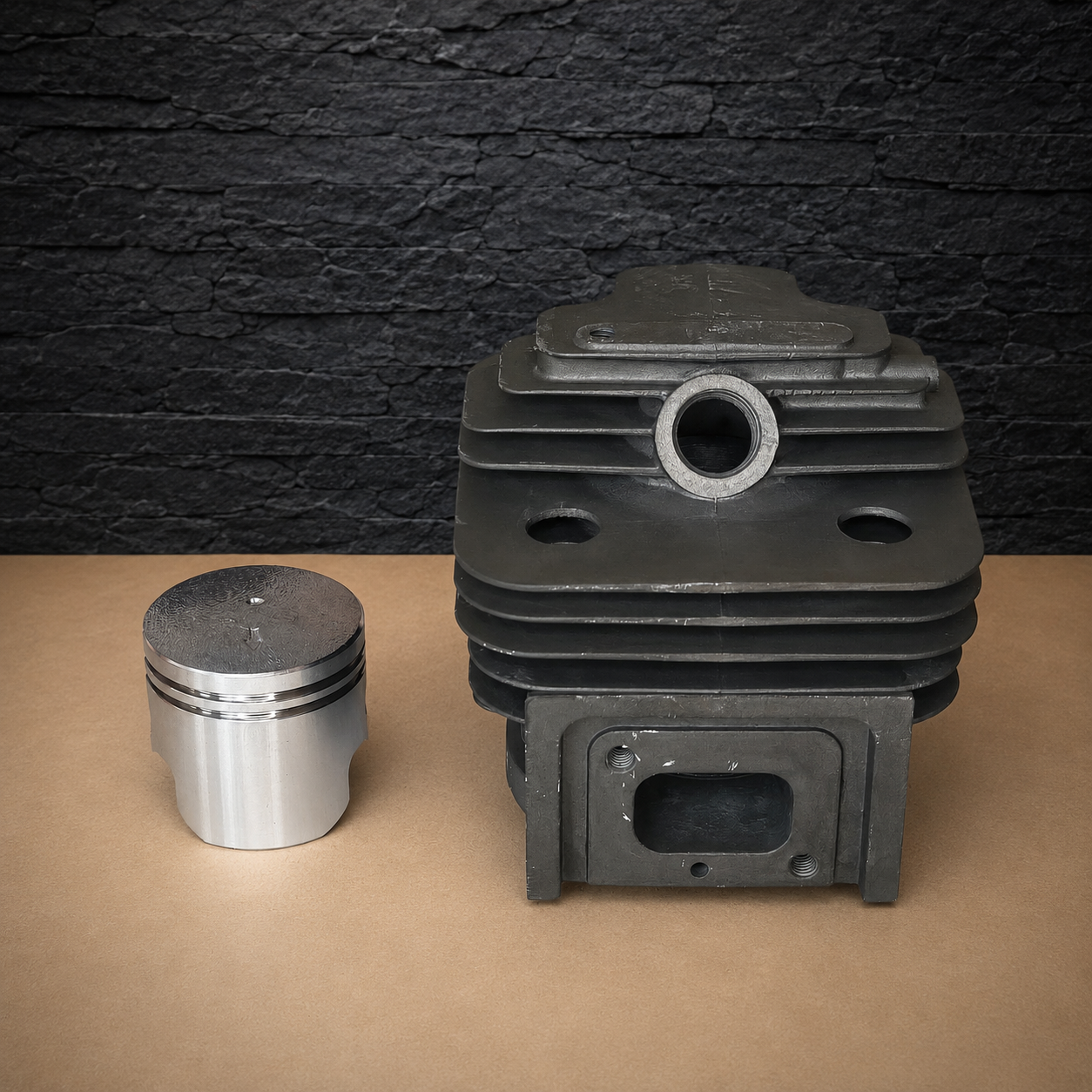

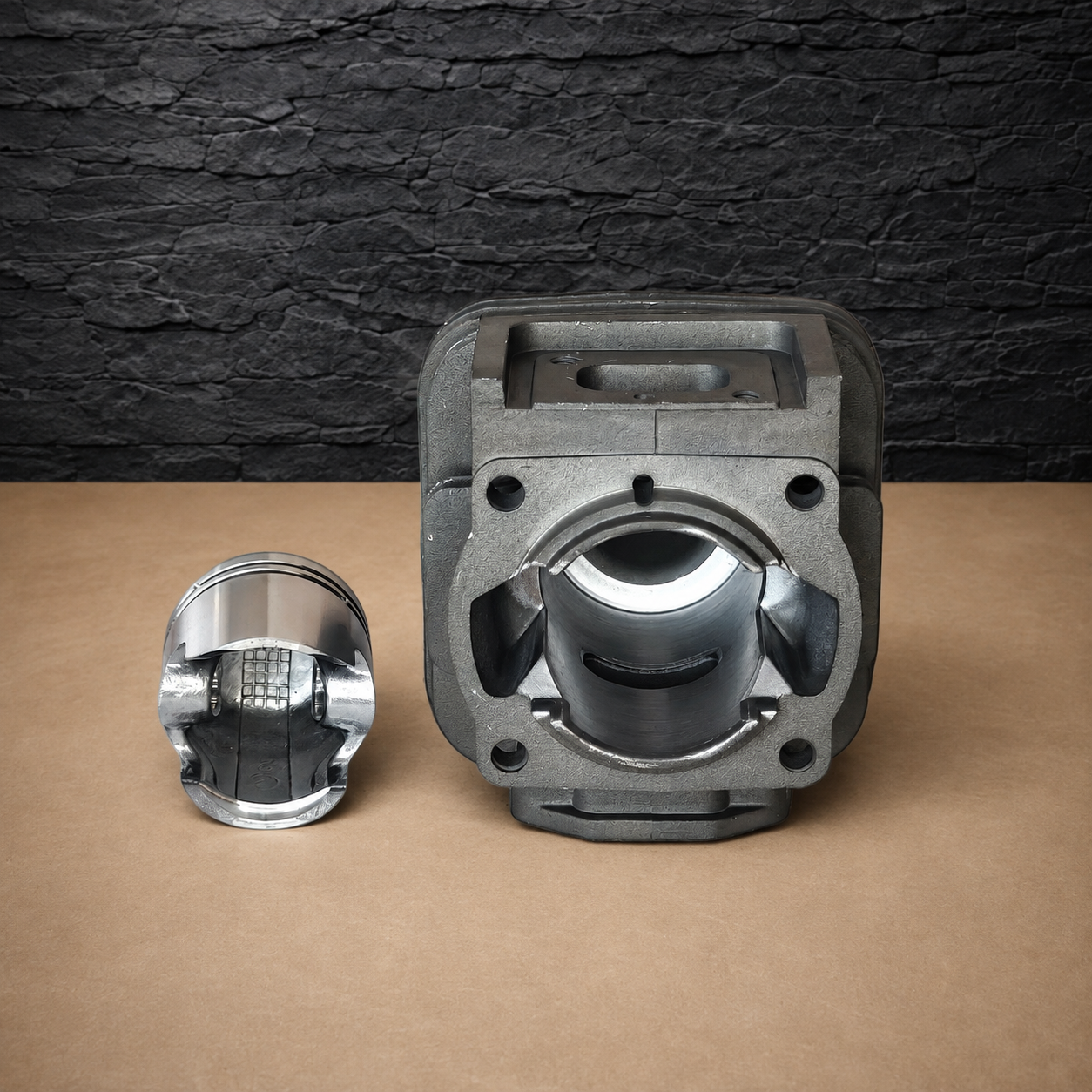

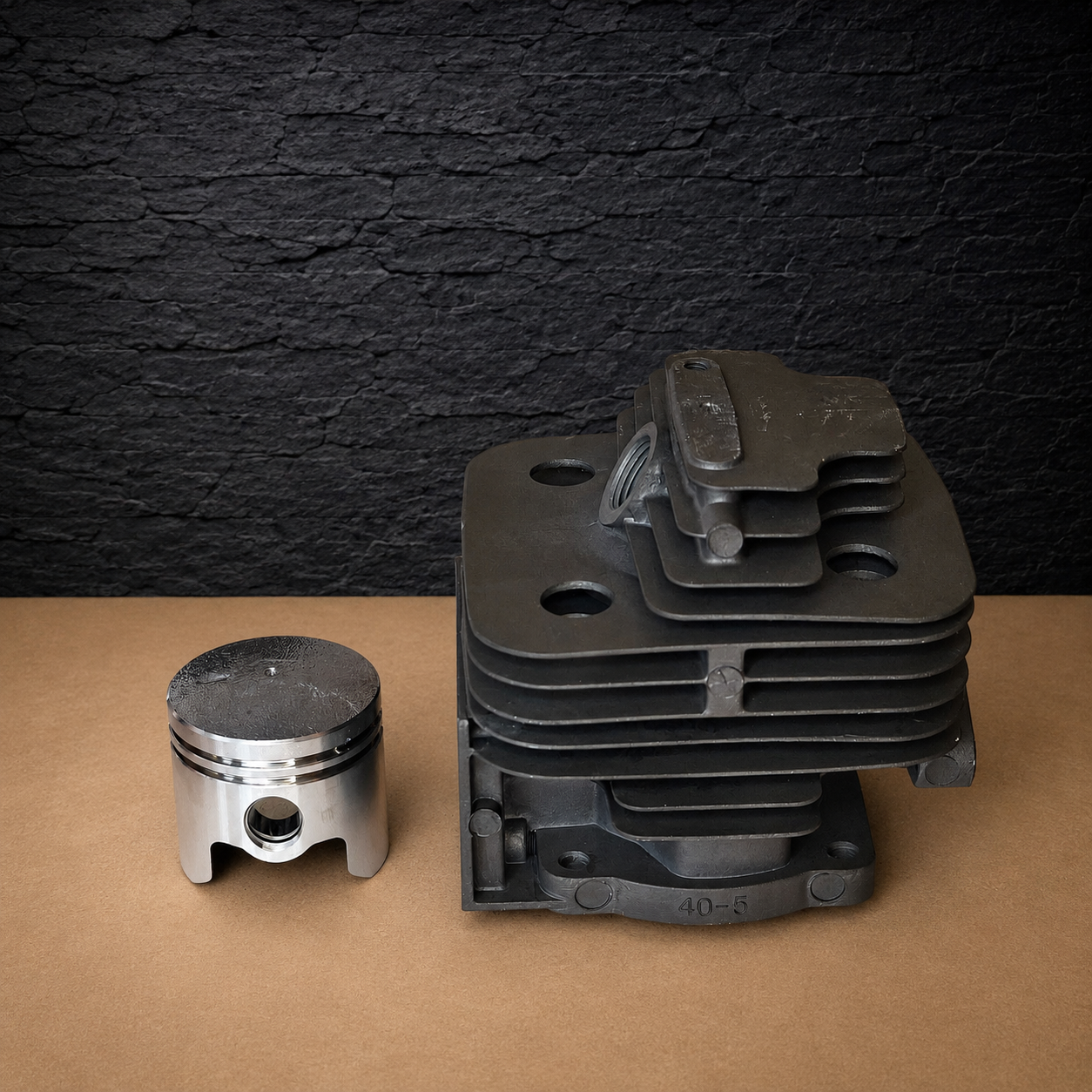

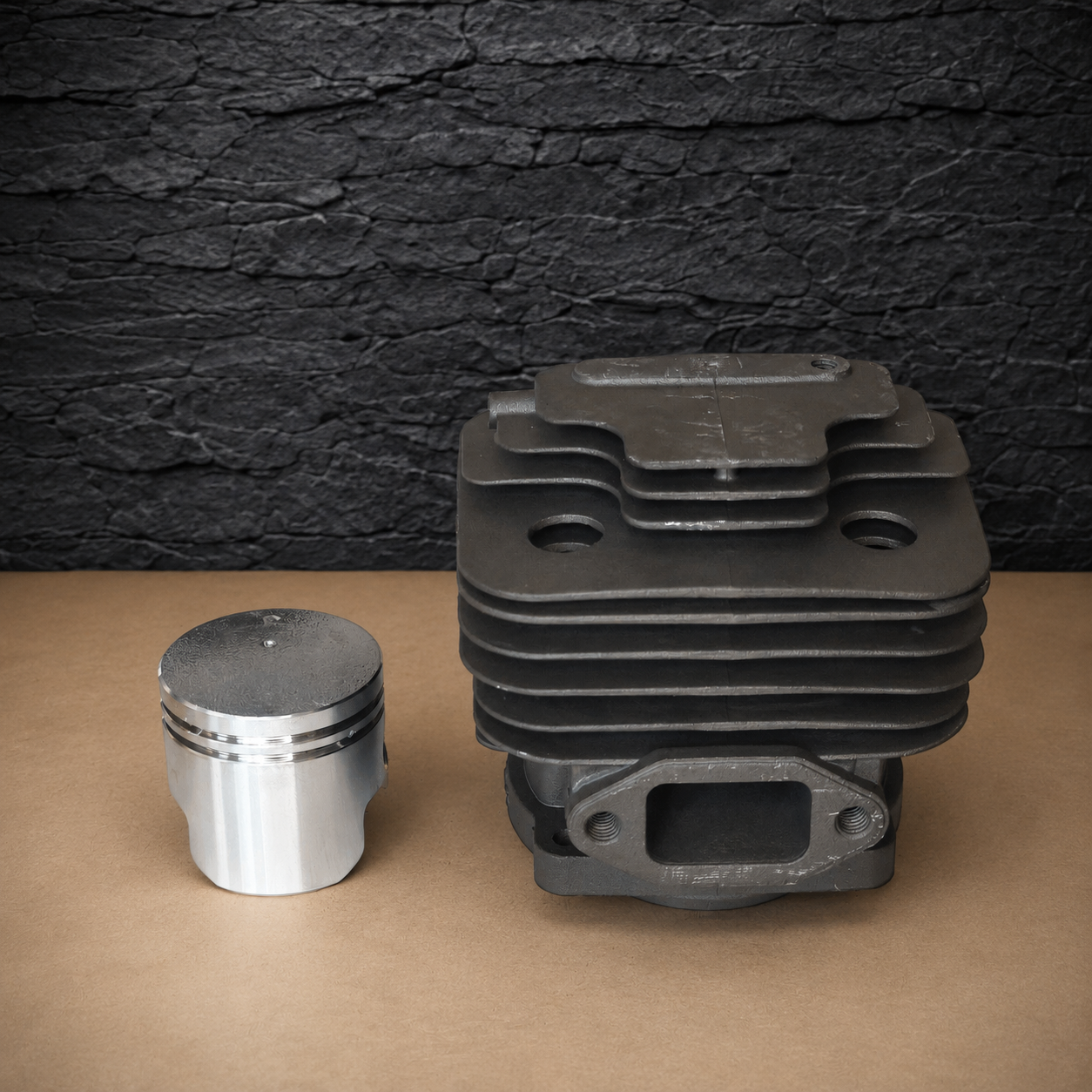

40mm Cylinder and Piston Assembly Kit for BC415, TL43, CG430 and 43cc Brushcutters

Description

This 43cc brushcutter cylinder kit provides the main engine components for compatible Chinese-manufactured two-stroke brushcutters with a 40 mm cylinder bore. It suits machines that need a replacement cylinder and piston after scoring, overheating or normal top-end wear.

43cc brushcutter cylinder kit compatibility

The assembly fits compatible engines commonly marked:

• BC415
• TL43
• CG430
• 1E40F-5
• Generic 43cc brushcutters with a 40 mm bore

Generic model markings can cover several engine designs. Therefore, measure the original cylinder and compare the intake port, exhaust port and mounting points before ordering.

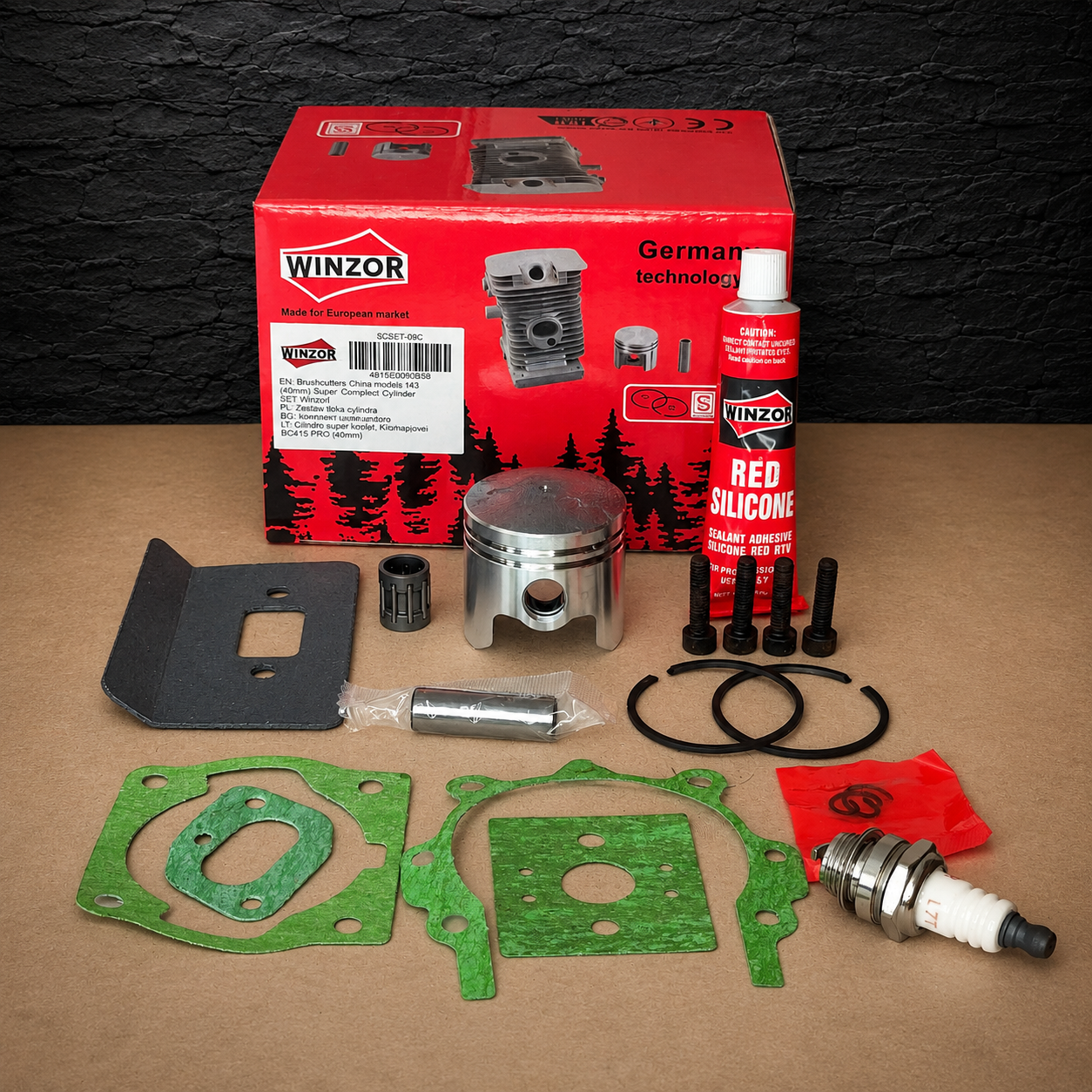

Kit contents

The package includes:

• 40 mm cylinder
• Piston
• Piston rings
• Piston pin
• Piston needle bearing
• Cylinder and exhaust gaskets
• Four cylinder bolts
• Spark plug
• Engine sealant

The new cylinder and piston restore the working surfaces of the engine’s top end. Meanwhile, the supplied gaskets help seal the cylinder, intake and exhaust connections during assembly.

Before installation, inspect the crankshaft bearings and connecting rod for play. Also clean the crankcase and cooling passages so that debris cannot enter the new cylinder. After assembly, check the carburettor settings and fuel mixture because a lean mixture or intake leak can quickly damage the replacement components.

Browse additional brushcutter and strimmer parts for compatible fuel, starter and transmission components. Further product information is available from the Winzor parts catalogue.
