Description

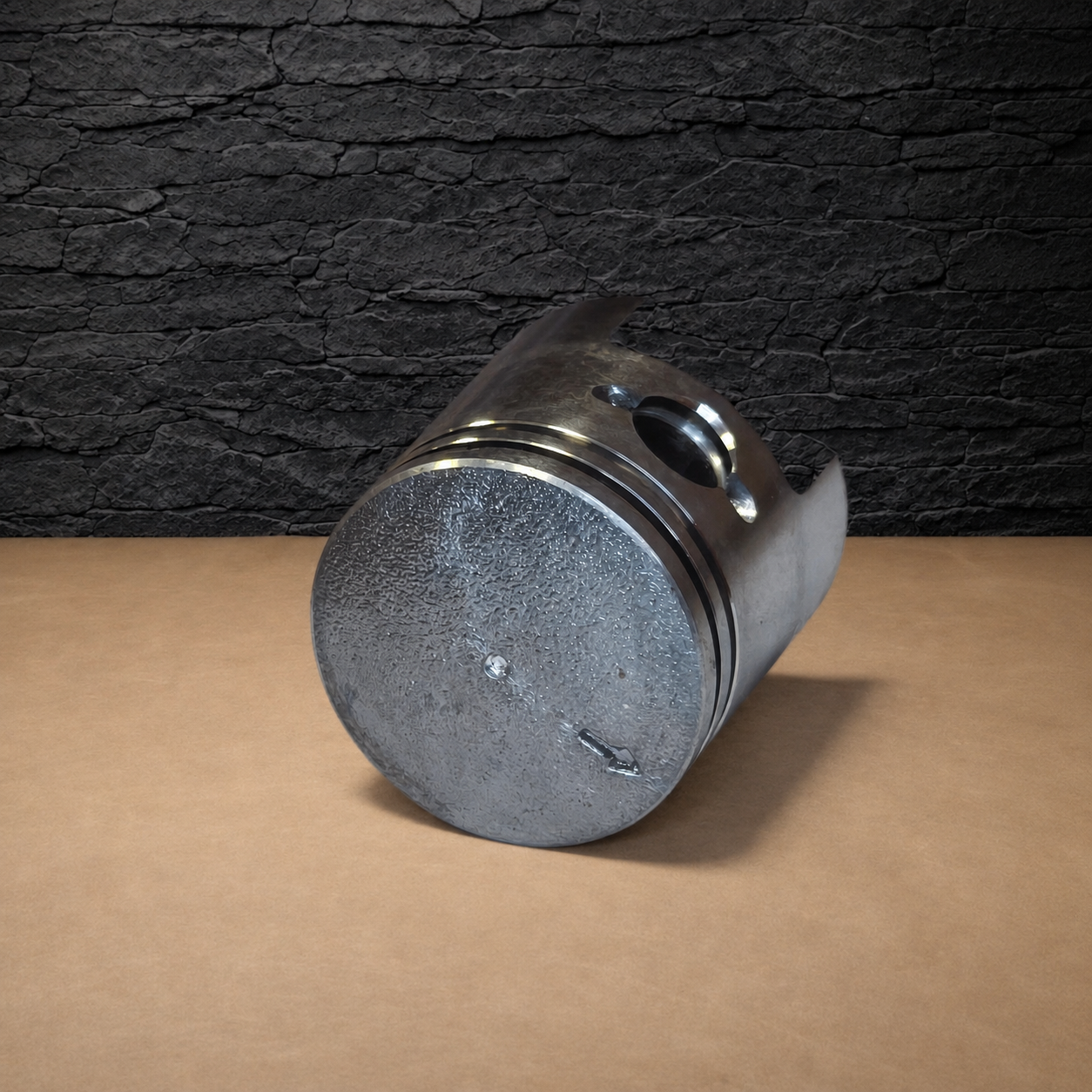

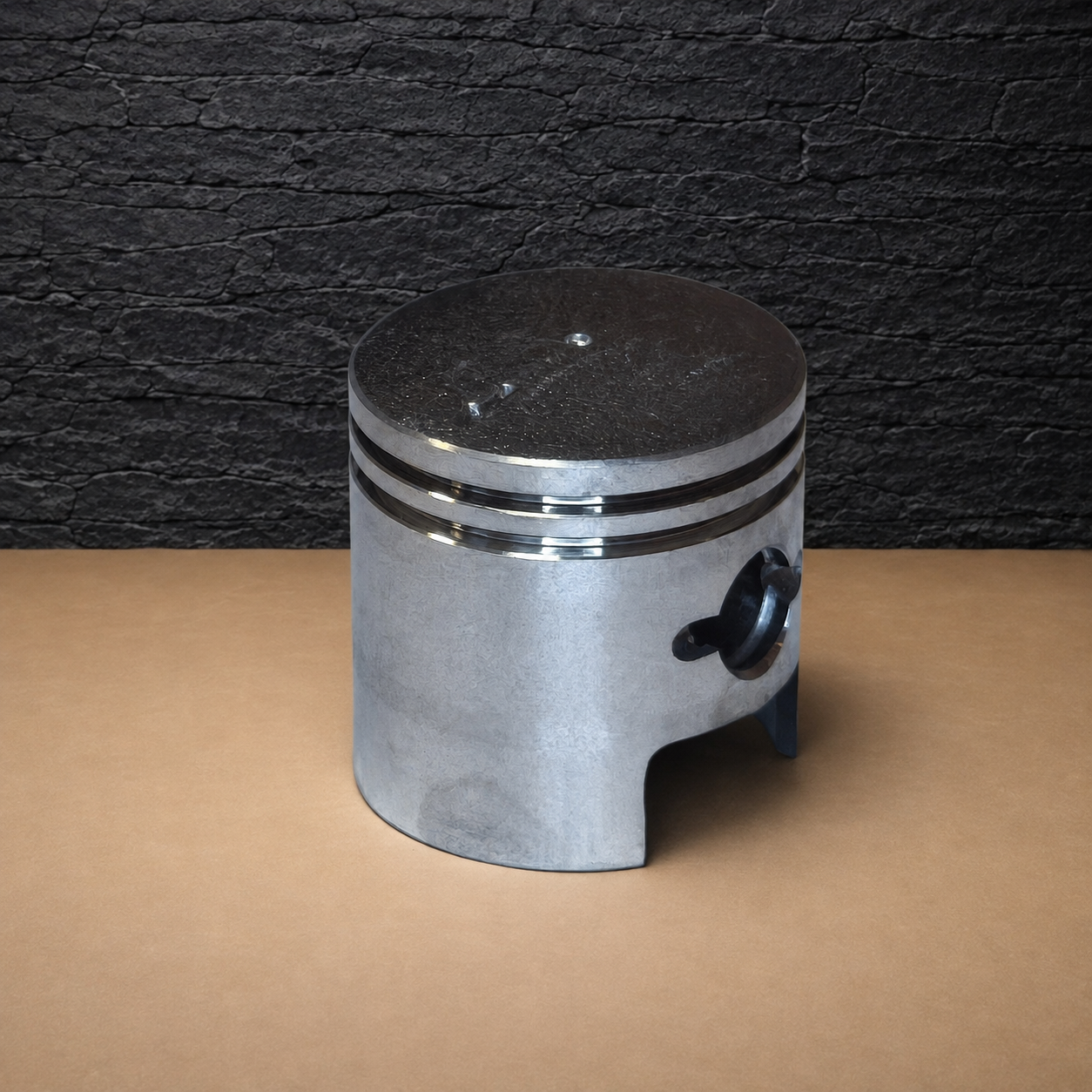

This Shindaiwa C35 piston is a 36 mm aftermarket replacement piston for compatible Shindaiwa brushcutters and trimmers using the 33.6 cc engine family.
The Shindaiwa C35 engine uses a 36 mm cylinder bore, a 33 mm piston stroke and has a displacement of 33.6 cc.
The original piston reference is 20010-41110. This reference was later replaced by P021031570 in Shindaiwa parts information.
Compatible Shindaiwa Models
Fits compatible versions of:
- Shindaiwa C35
- Shindaiwa C350
- Shindaiwa T350
- Shindaiwa C35LA
- Shindaiwa BP35
- Shindaiwa BP40LA
- Shindaiwa R35F
- Shindaiwa R40F-T
These models are listed within the same P021031570 / 20010-41110 piston family.
Before ordering, compare the model, piston dimensions and original part reference with the engine being repaired.
Shindaiwa C35 Engine Specifications
- Cylinder bore: 36 mm
- Piston diameter: 36 mm
- Piston stroke: 33 mm
- Engine displacement: 33.6 cc
- Engine type: 2-stroke petrol
- Original piston reference: 20010-41110
- Updated piston reference: P021031570
Additional Shindaiwa references associated with this piston family include:
- 20010-41111
- 72051-98011
- 72051-98310
Related Original Piston Components
The Shindaiwa C35 parts catalogue identifies the related piston-group components under separate references:
- Piston: 20010-41110
- Piston ring set: 20010-41210
- Piston pin: 20010-41310
- Needle bearing: 20010-41330
- Thrust washer: 20010-41340
- Piston-pin snap ring: 22100-41230
These references are useful when checking or rebuilding the complete piston assembly.
Before Installing the Piston
Inspect the 36 mm cylinder carefully before fitting a new piston.
The cylinder should not have deep scoring, heavy aluminium transfer or excessive wear. If the cylinder is badly damaged, it should be repaired or replaced before fitting the new piston.
Inspect the piston pin, small-end needle bearing and connecting rod at the same time.
The piston must be installed in the correct direction. Position the piston rings correctly against their locating pins before fitting the cylinder.
Use clean two-stroke oil to lubricate the piston, rings and bearing during assembly.
After the engine is assembled, rotate the crankshaft manually through several complete revolutions. The piston should move smoothly through the full 33 mm stroke without binding.
For additional compatible engine components, browse our brushcutter and strimmer parts.
