34mm Cylinder & Piston Kit for Echo SRM-2655SI / SRM-2655 / SRM-270 – 10103456532

Description

This Echo SRM-2655SI cylinder kit is a 34 mm aftermarket cylinder-and-piston repair kit for the verified Echo brushcutters, trimmers, power heads and edgers listed below.

The current replacement cylinder reference is 10103456532. It also replaces the earlier 10103456031 and 10103456530 cylinder numbers used within this engine family.

Echo SRM-2655SI Cylinder Kit Fitment

Fits the following Echo models:

• Echo SRM-2655SI
• Echo SRM-2655
• Echo SRM-270
• Echo SRM-270U
• Echo SRM-2601
• Echo SRM-2610
• Echo PAS-2601
• Echo PE-2601

The verified older model designation is SRM-2601, not an unqualified SRM-260. Use the full model number from the machine identification label when selecting the part.

The later Echo SRM-265 is a separate 25.4 cc platform and is not part of this 10103456532 cylinder application.

Cylinder and Piston References

Relevant technical information:

• Cylinder bore: 34 mm
• Current cylinder reference: 10103456532
• Earlier cylinder reference: 10103456031
• Earlier cylinder reference: 10103456530
• SRM-2655 / SRM-270 piston-kit reference: P021000371
• SRM-2601 / SRM-2610 later piston-kit reference: P021000370
• SRM-2601 / SRM-2610 early piston-kit reference: 10000056031
• Cylinder-base gasket reference: 10101056030

Echo used 10103456031 in the original SRM-2601 and SRM-2610 parts catalogue. The later 10103456532 cylinder supersedes that earlier reference and is also catalogued for SRM-2655, SRM-2655SI, SRM-270 and SRM-270U applications.

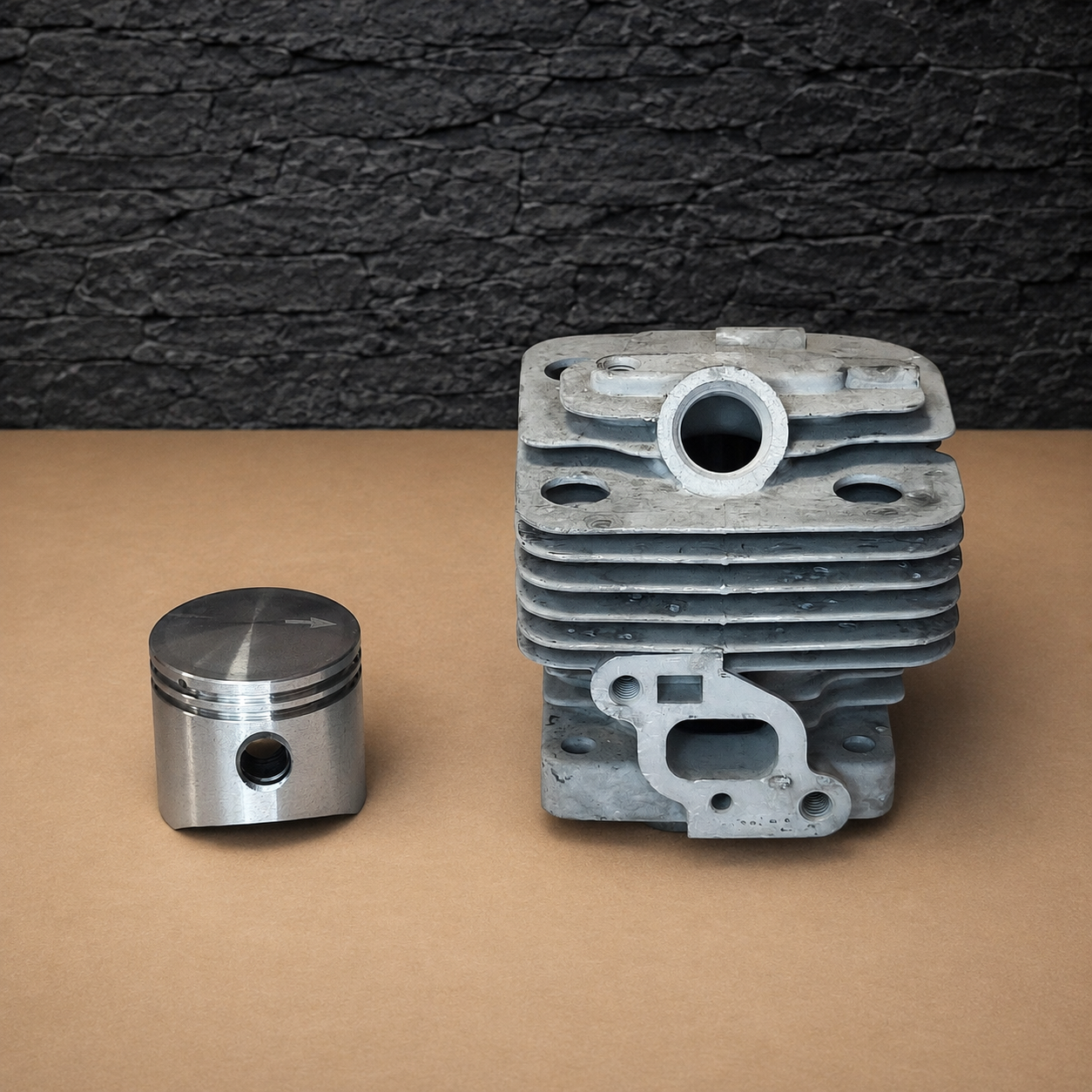

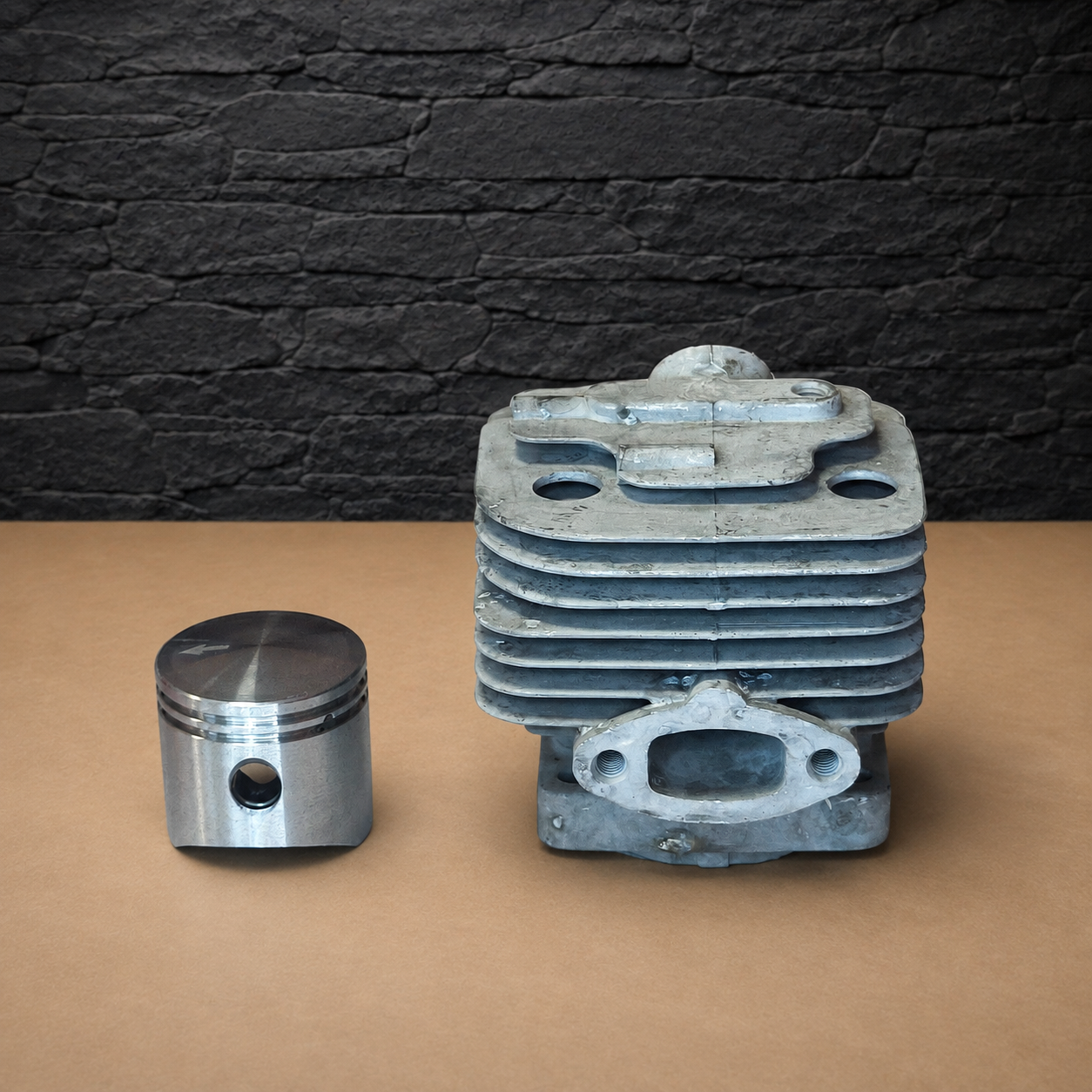

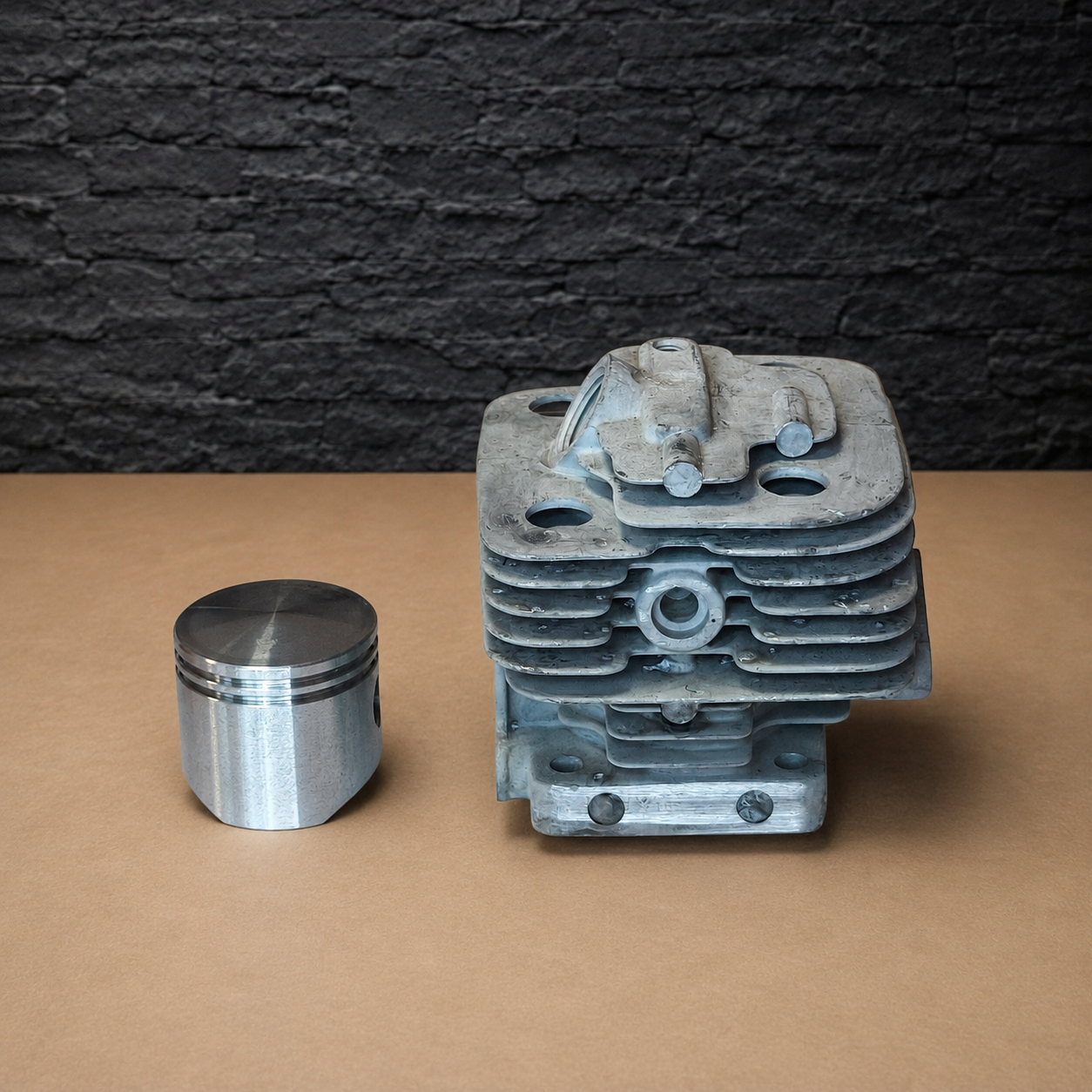

This product is the 34 mm aftermarket cylinder-and-piston kit shown in the product photographs. Gaskets and other separately catalogued engine parts are not included in the description unless they are shown with the supplied product.

Checks Before Installation

Confirm these three identification points before disassembly:

• The complete machine model
• The 34 mm cylinder bore
• Cylinder number 10103456532, 10103456031 or 10103456530

Before installing the new cylinder group, inspect the connecting-rod small-end bearing, crankshaft movement and crankcase sealing surfaces. Also check the intake boot, carburetor adjustment and crankshaft seals. Air leakage or an excessively lean mixture can damage a replacement piston and cylinder.

Clean the crankcase mounting surface without allowing old gasket material to enter the engine. Install the piston in the correct direction, position the rings against their locating pins and slide the cylinder into place without forcing the rings.

After assembly, rotate the crankshaft manually through several complete revolutions. The piston must travel freely before the engine is started.
