Winzor Carburetor for ECHO CS-510 CS-520 CS-4200ES WT-594 – A021000220

Aprašymas

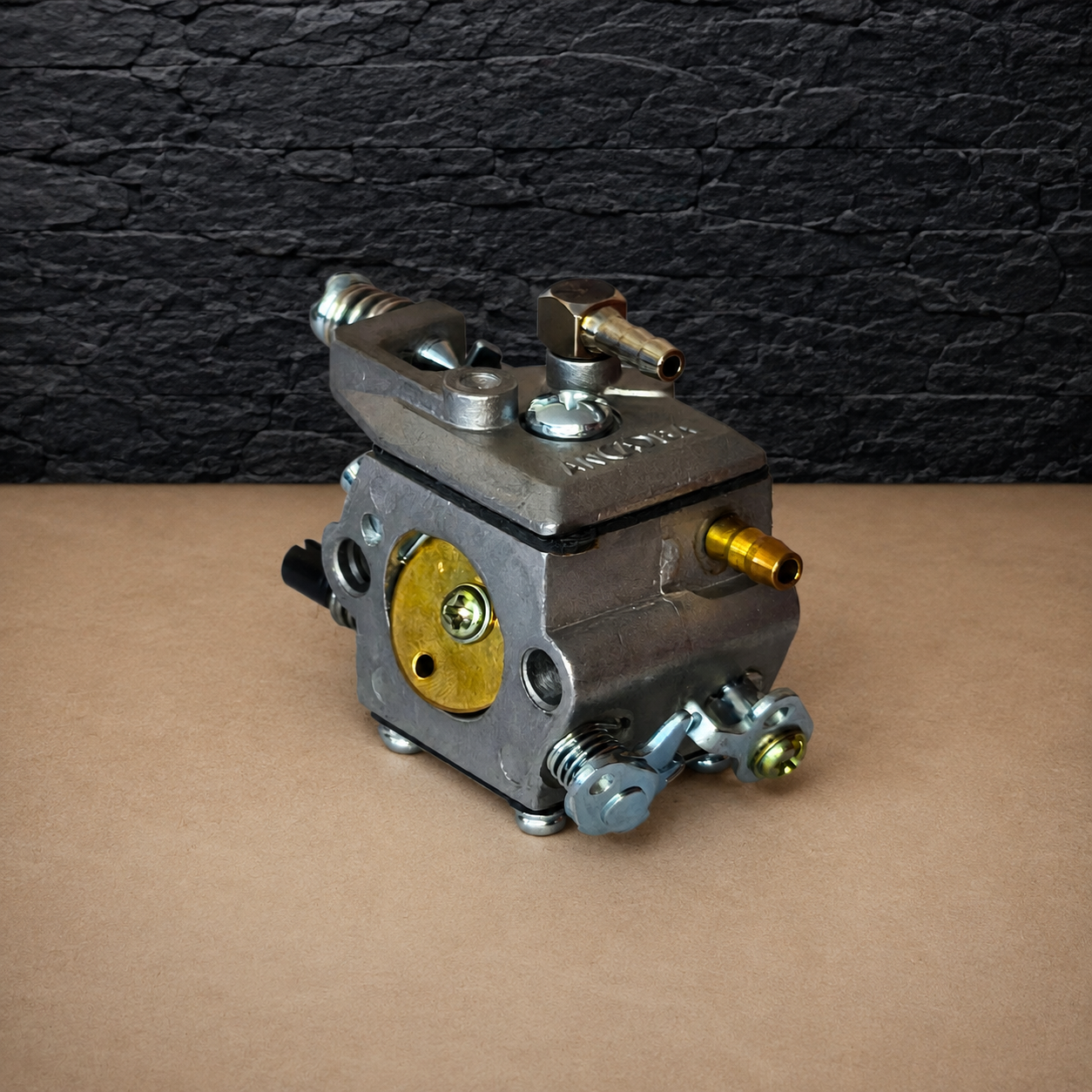

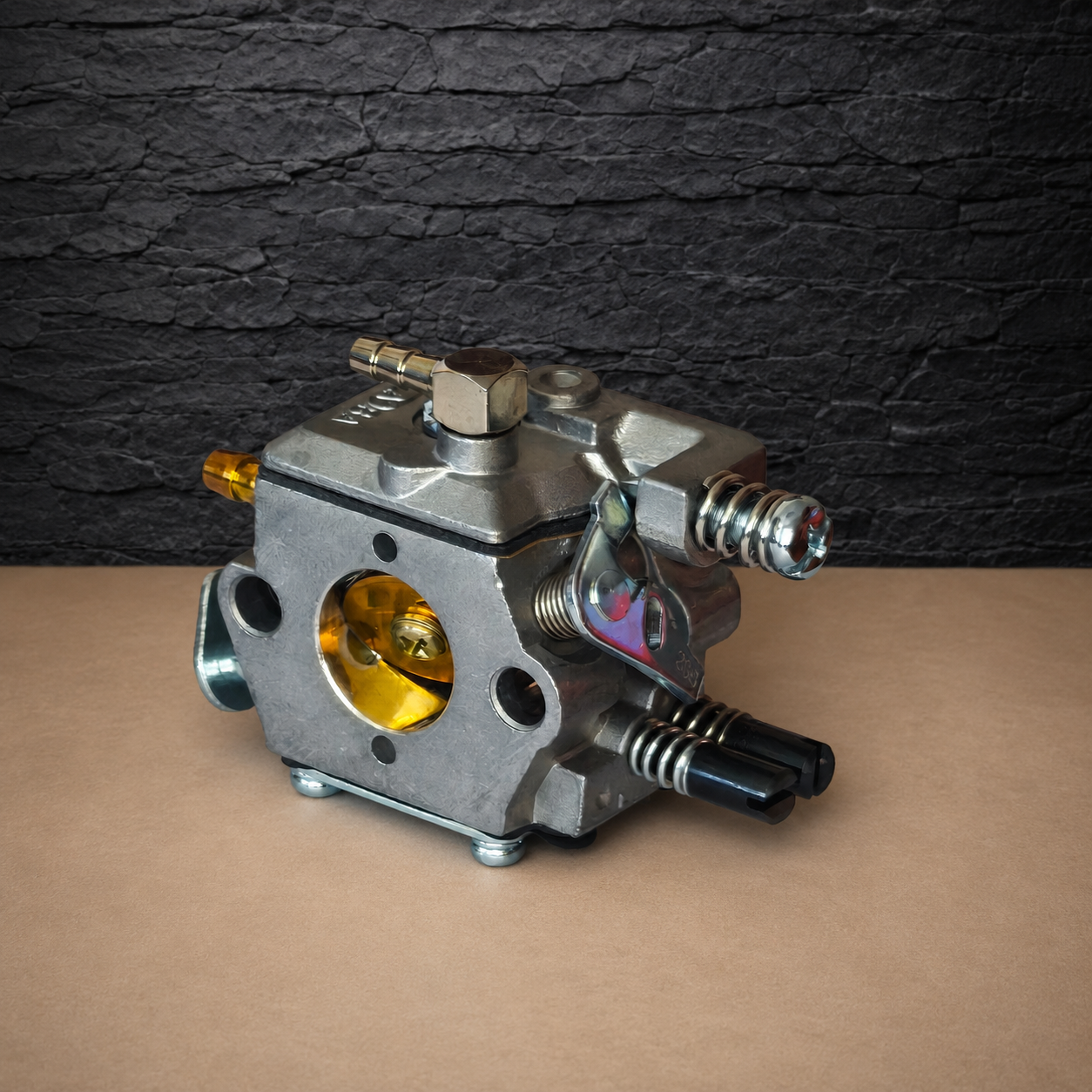

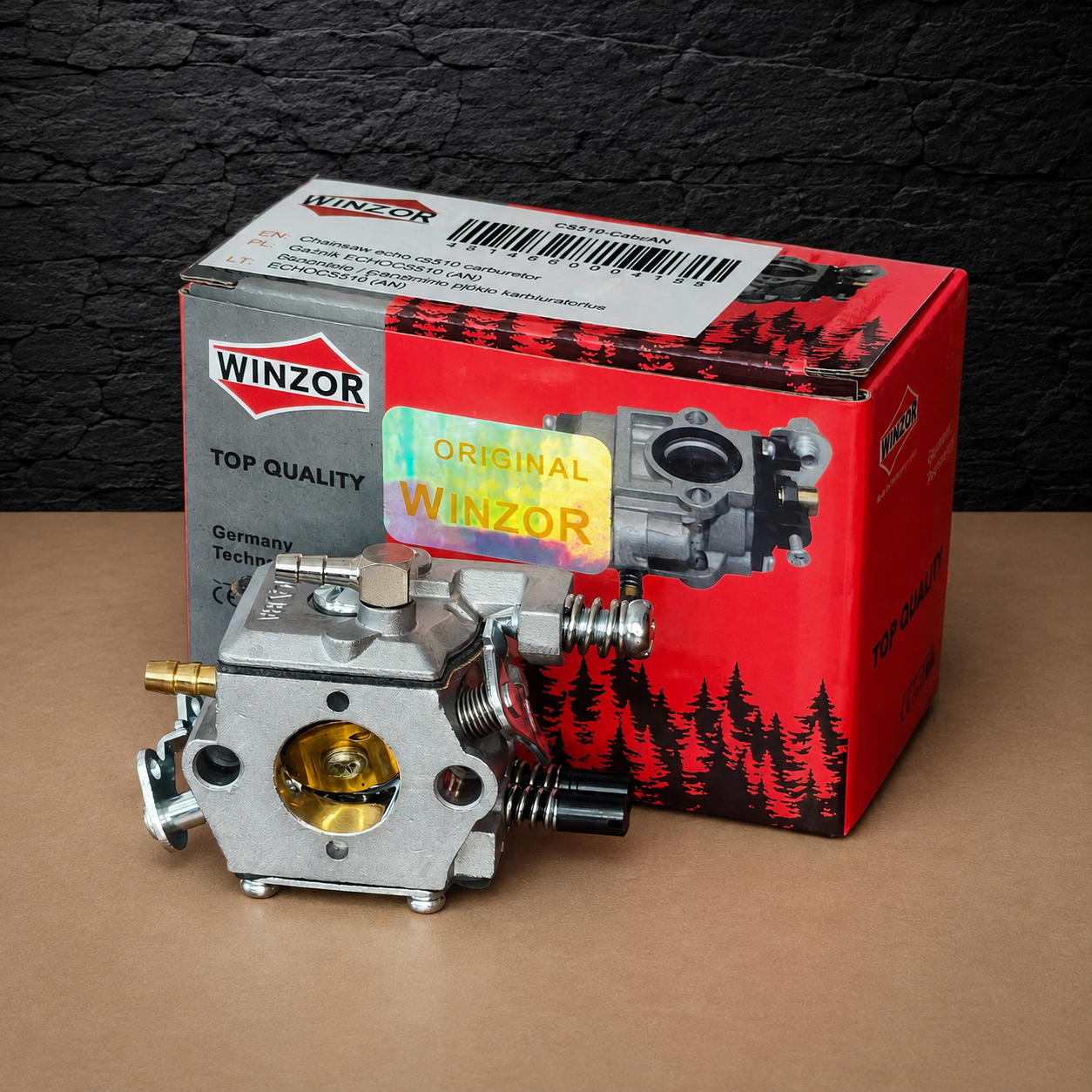

This ECHO CS-510 carburetor is a Winzor aftermarket replacement for the original Walbro WT-594 diaphragm carburetor. It replaces ECHO OEM part number A021000220 and controls the fuel-and-air mixture supplied to the chainsaw engine.

ECHO CS-510 carburetor compatibility

Compatible with:

• ECHO CS-510
  • Serial numbers 03001001–03999999
  • Serial numbers 04001001–04999999
• ECHO CS-520
  • Serial numbers 05001001–05999999
  • Serial numbers 07001001–07999999
  • Serial numbers C07113001001–C07113999999
  • Serial numbers C09312001001–C09312999999
• ECHO CS-4200ES
  • Serial numbers 36001001–36999999

Product details

• Product type: Complete diaphragm carburetor
• Brand: Winzor
• Carburetor type: Walbro WT-594 replacement
• OEM reference: A021000220
• Application: Two-stroke petrol chainsaw
• Condition: New aftermarket replacement part
• Quantity: One carburetor

This carburetor replaces the complete fuel-metering unit when the original body, throttle mechanism or internal fuel passages suffer damage. The diaphragm system draws fuel from the tank and meters it according to engine speed and throttle position. Consequently, a correctly functioning carburetor supports reliable starting, stable idling and consistent acceleration.

Common signs of carburetor wear or contamination include difficult starting, fuel leakage, unstable idle, poor acceleration and an engine that stops when the throttle opens. Before replacing the carburetor, inspect the fuel filter, fuel lines, tank vent, air filter, intake boot and cylinder compression. Faults in these components can produce similar symptoms.

Clean the intake area before installation and connect the fuel line, throttle linkage and choke mechanism in their original positions. After fitting the carburetor, check the idle speed and fuel-mixture adjustment according to the chainsaw’s service specifications. Finally, confirm that the chain remains stationary while the engine idles.

This WT-594-type carburetor does not replace the later Zama C1Q-K64A version used on other CS-510 production ranges. Compare the OEM number, throttle linkage and carburetor layout before ordering.

Browse our other chainsaw parts for compatible service components. The A021000220 model cross-reference confirms the WT-594 designation and model fitment.

Winzor manufactures this new aftermarket replacement part. It is not a genuine ECHO or Walbro component. Brand names and OEM numbers identify compatibility only.
