Carburetor for STIHL MS261, MS271 and MS291 Chainsaws – 1141 120 0616

Aprašymas

This STIHL MS271 carburettor is an aftermarket C1Q-style fuel-metering unit for selected conventional-carburettor versions of the STIHL MS261, MS271 and MS291 chainsaws. It replaces a damaged or worn carburettor that no longer supplies a stable fuel-and-air mixture.

STIHL MS271 carburettor compatibility

The primary comparison reference is:

• 1141 120 0616
• 1141-120-0616
• Carburettor designation: C1Q-S252B

This reference appears in selected versions of:

• STIHL MS261
• STIHL MS271
• STIHL MS271 Farm Boss
• STIHL MS291

Other carburettor numbers exist within these model families. For example, STIHL used different units on certain production revisions, handle configurations and electronically controlled models. Therefore, compare the number and physical connections before ordering.

This carburettor should not be selected solely by the MS261 model name. In particular, MS261 C-M machines with the M-Tronic electronic engine-management system require the correct electronically controlled components.

Product details

• Product type: diaphragm carburettor
• Carburettor pattern: C1Q style
• Application: two-stroke chainsaw engine
• Brand: Winzor
• Condition: new aftermarket replacement

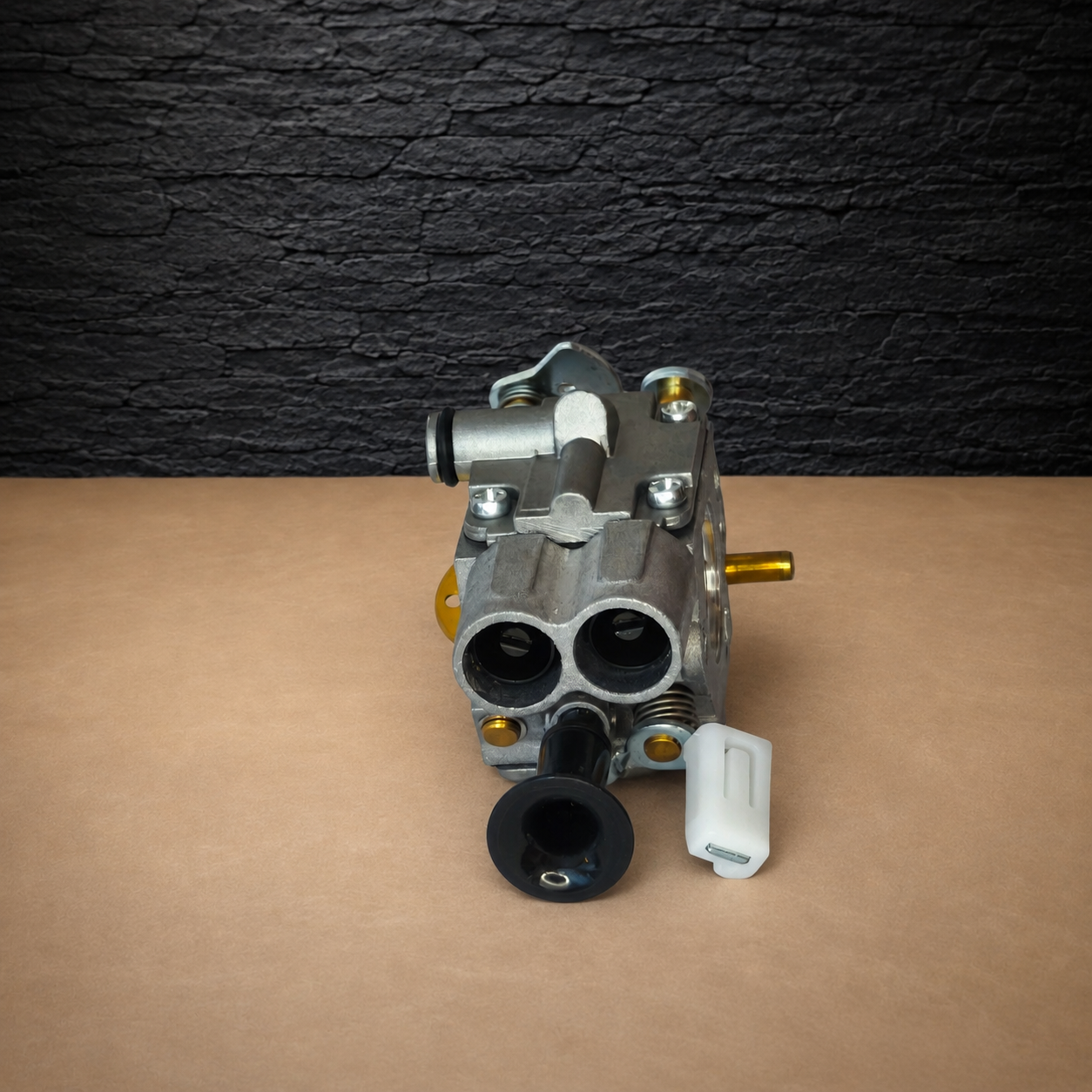

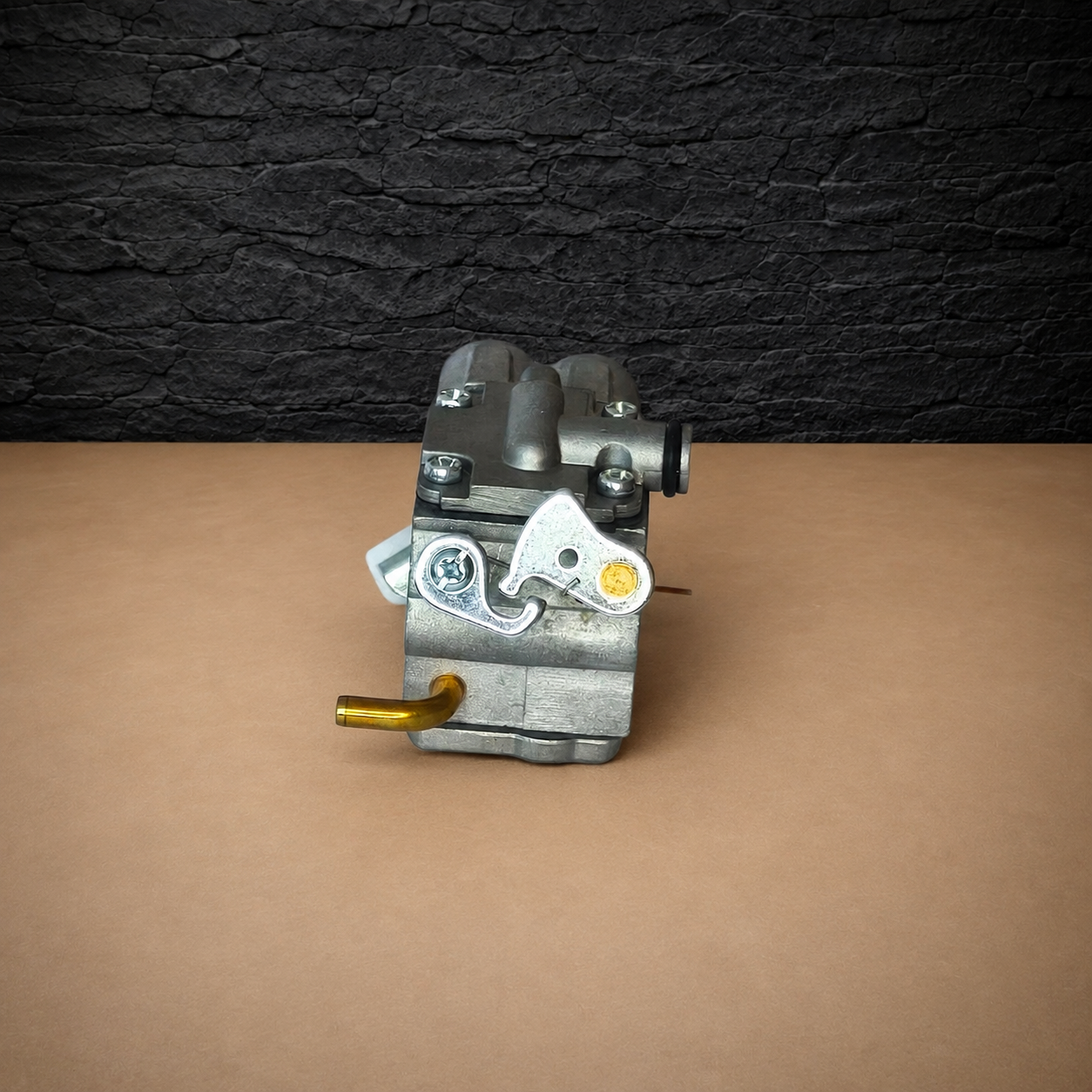

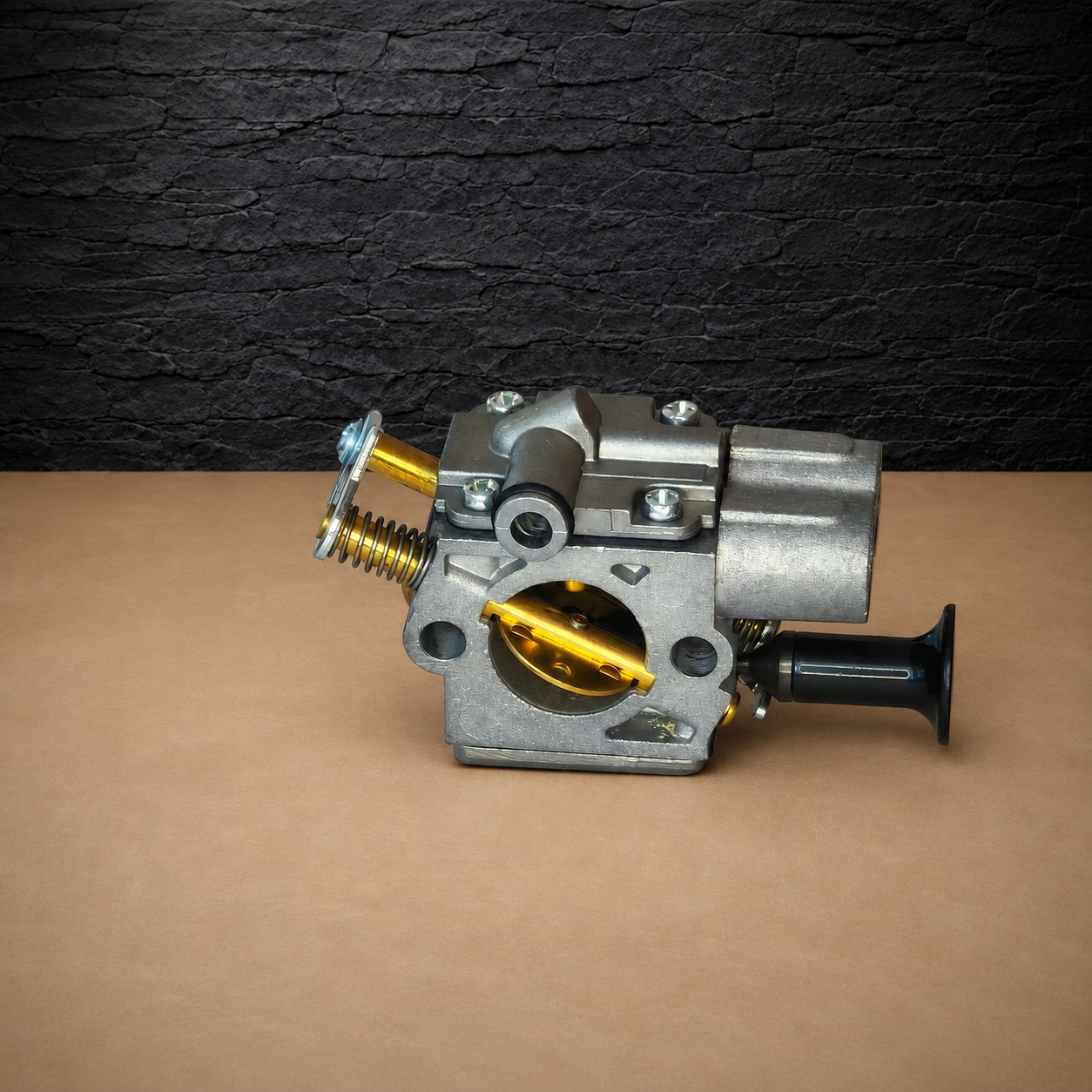

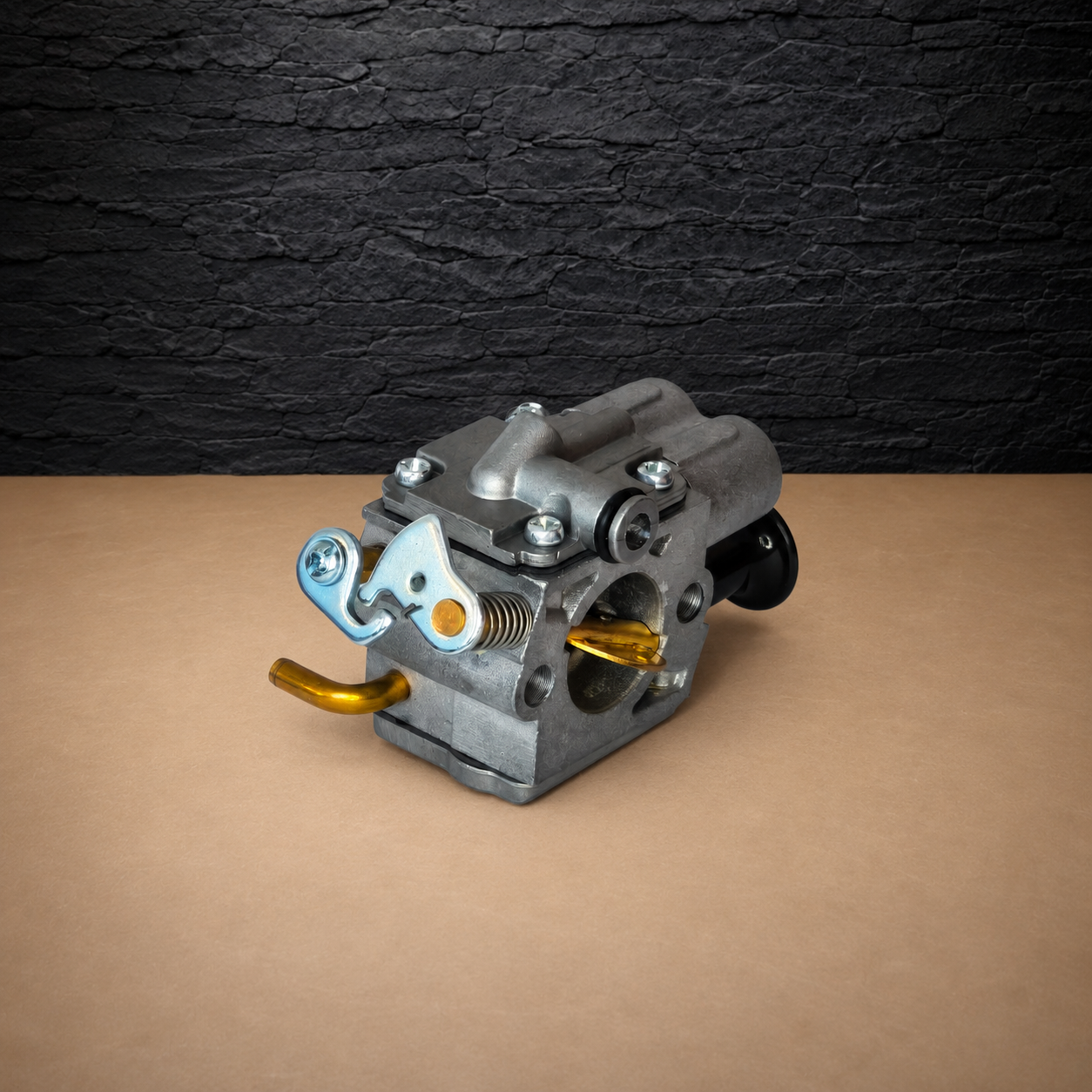

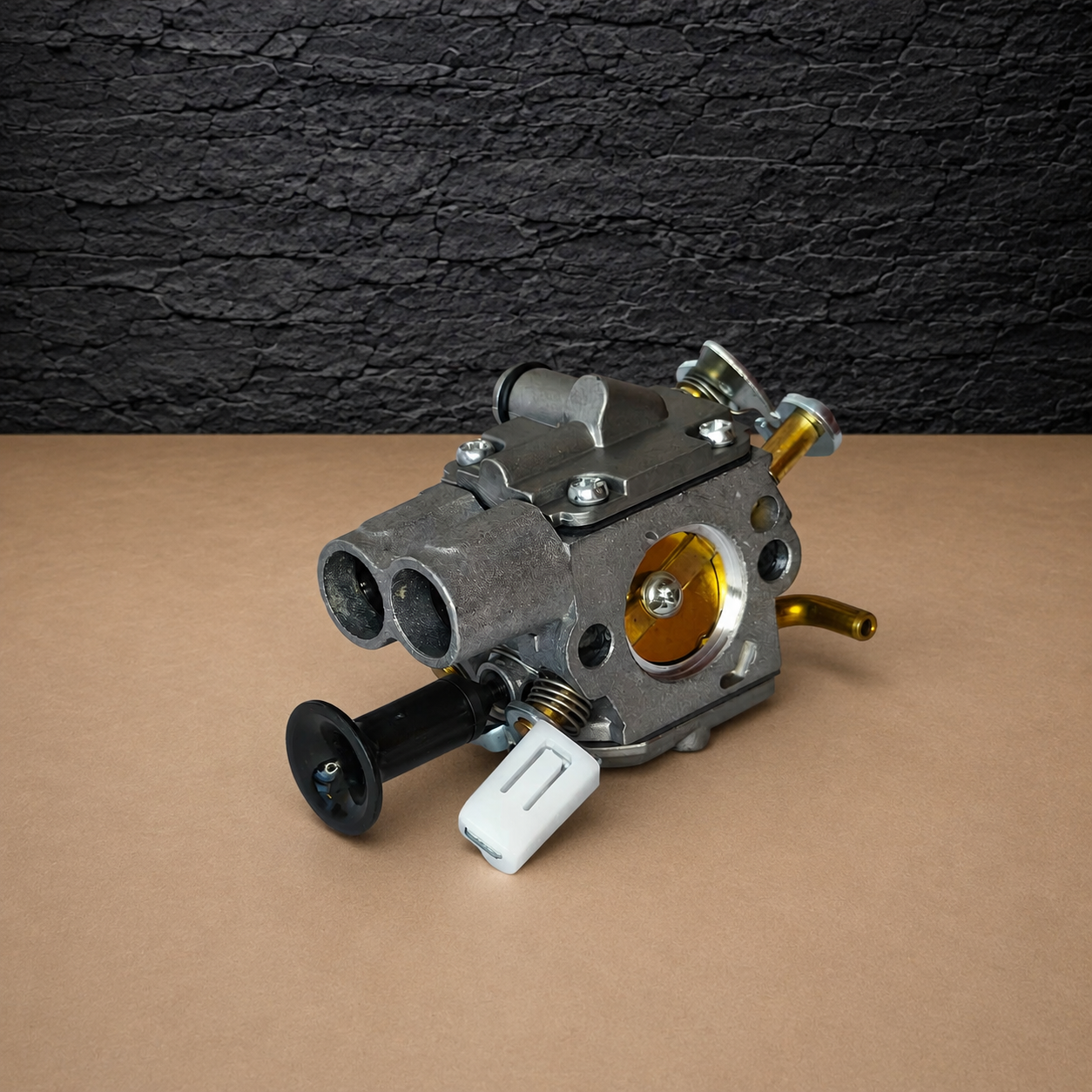

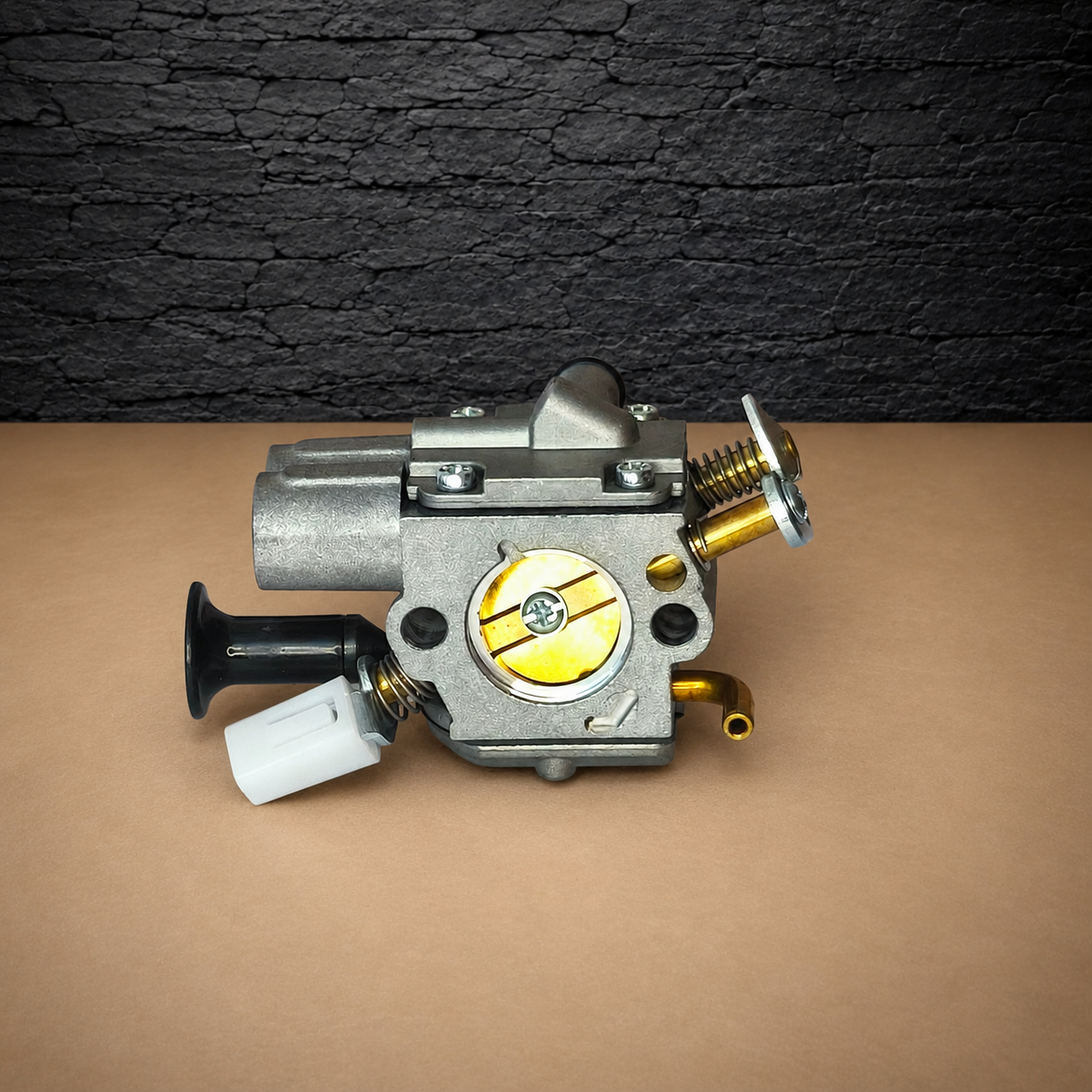

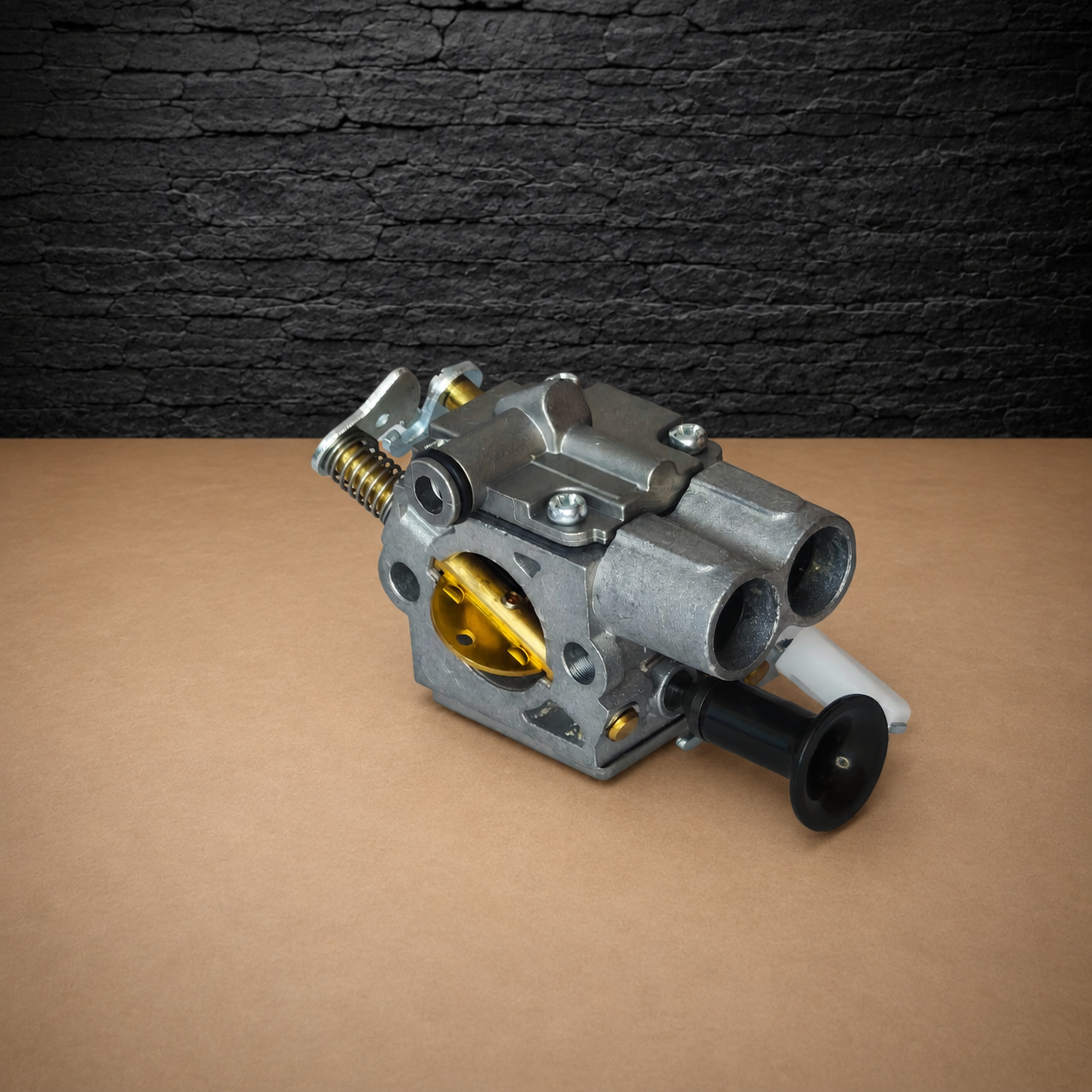

• Package contents: carburettor shown in the photographs

The carburettor meters fuel according to engine airflow and operating demand. Consequently, a worn metering diaphragm, leaking internal valve or blocked passage can cause difficult starting, unstable idle, poor acceleration or an incorrect fuel mixture. However, the same symptoms can also result from an intake leak, blocked fuel filter, damaged impulse connection or low engine compression.

Before installation, compare the intake and air-filter mounting faces, throttle and choke controls, fuel connections and impulse arrangement with the original unit. Moreover, inspect the intake boot, fuel hose and filter so that an existing leak or restriction does not affect the replacement carburettor.

After fitting, check the idle speed and mixture according to the service information for the exact chainsaw version. Finally, confirm that the chain remains stationary at idle and that the engine accelerates without hesitation.

Browse related STIHL MS271 parts and STIHL MS291 parts. Refer to the official STIHL MS271 and MS291 instruction manual for operating and adjustment information.
